Cantek MX330 Edgebander

Cantek MX330 Edgebander
$12,500 (USD)
or
Call 239-770-4474
Description
CANTEK | MX330 Edgebander
Compact design with best-in-class edgebanding result.

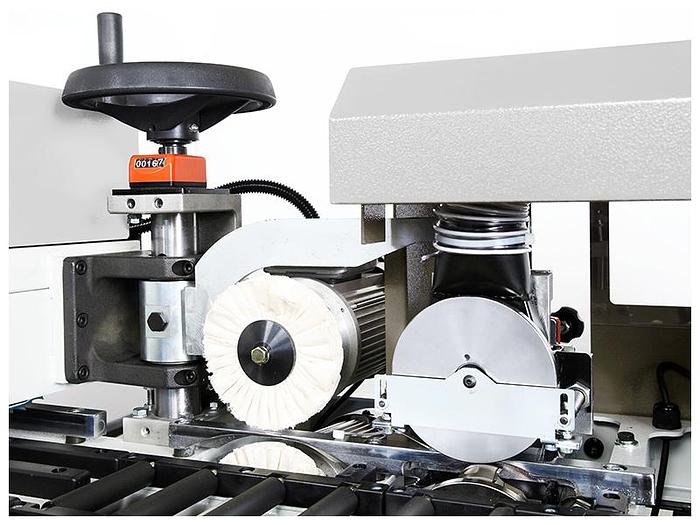

The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
Why Cantek MX330 Automatic Edgebander?
- Compact design makes it the ideal edgebanding solution for small workshops.
- Precise adjustments for optimum edge quality.

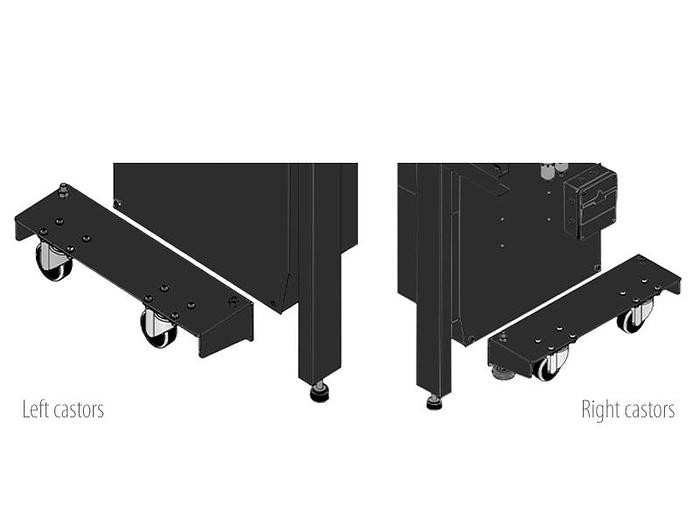

- Castor wheel adding mobility to your edgebander.
- Available in 230V 1 phase.
KEY ADVANTAGES

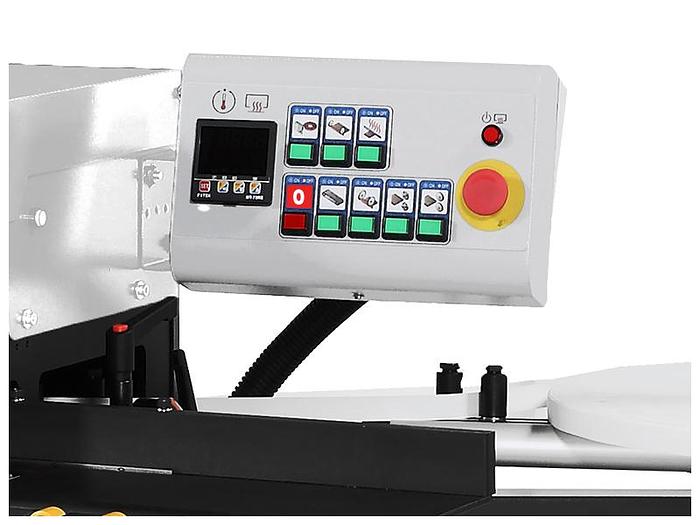

- PLC control system with LED display and keypad.

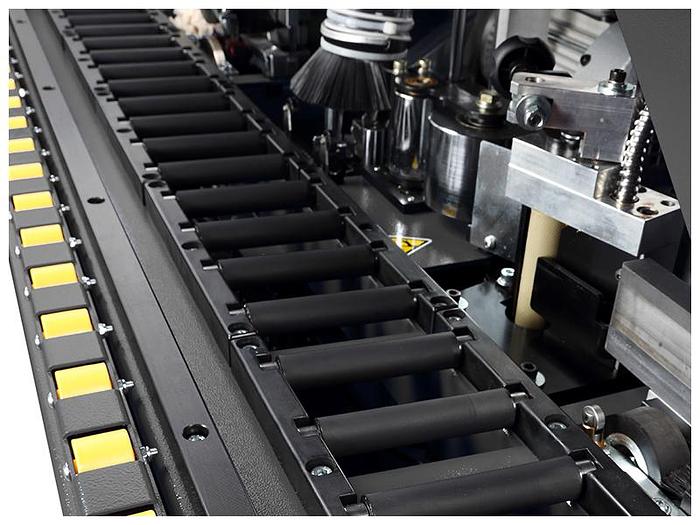

- Workpiece is fed by upper conveyor belt & idle table rollers.

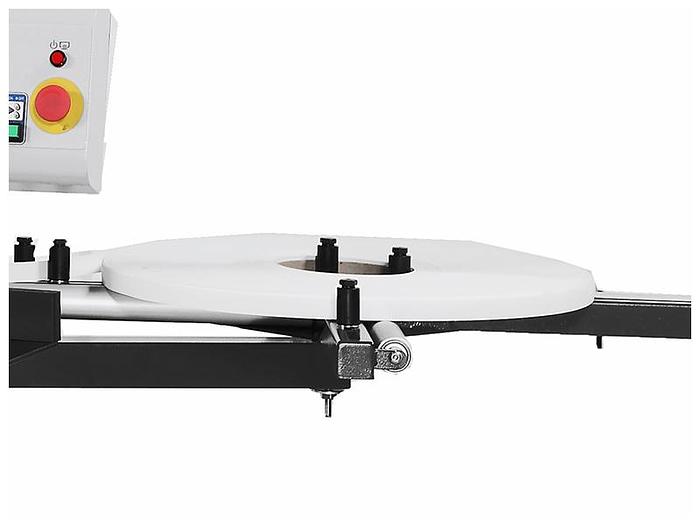

- Edge coil support plate: Ø 800 mm (31.5″) for PVC/ABS.
- Automatic edge feeding with a thickness capacity of 0.4-3 mm.
- Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

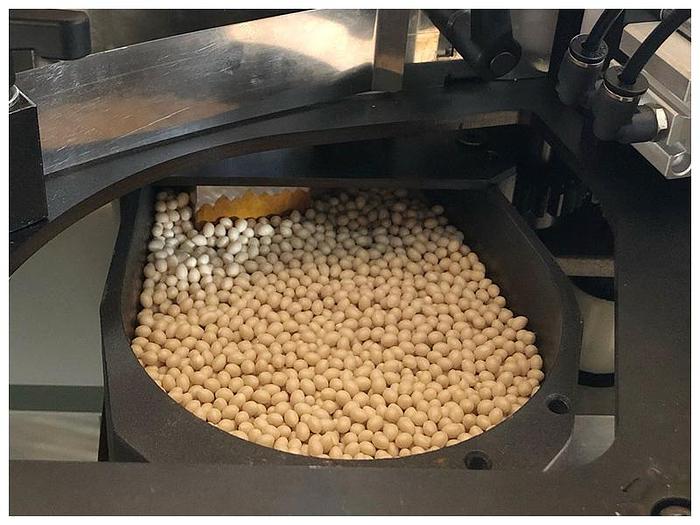

- 2 kg (2.6 lb) Teflon-coated hot-melt glue pot.

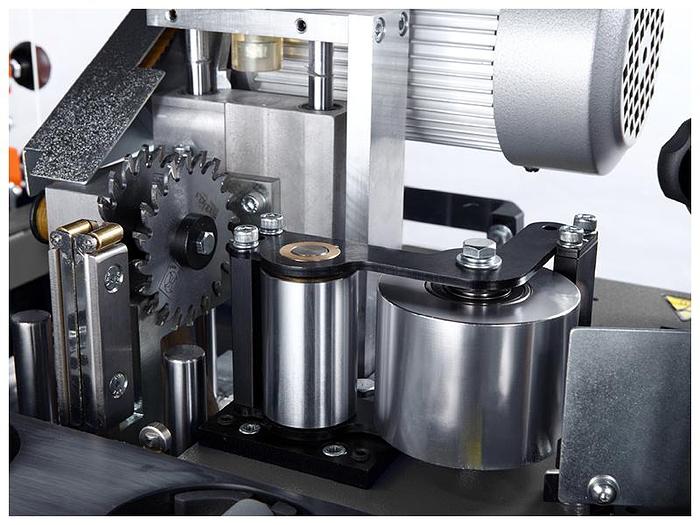

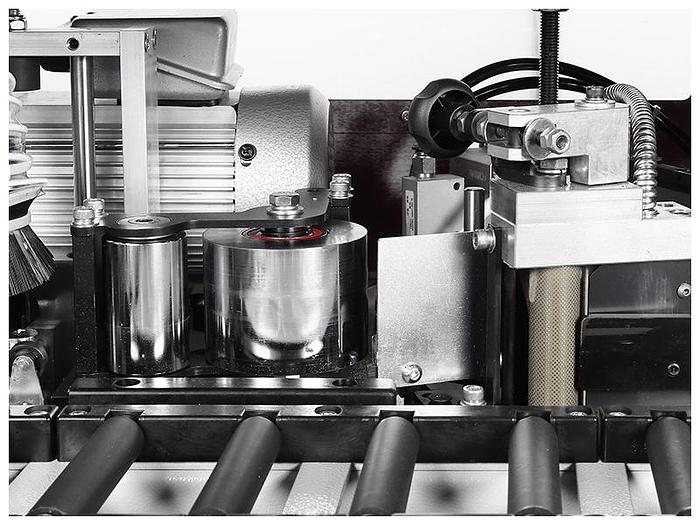

- Spring-loaded pressure unit with (2) chrome pressure rollers.
- Heavy-duty pressure beam with extendable workpiece support.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.
- Mobility wheels allow you to move your edge bander in and out of position to save you work space.

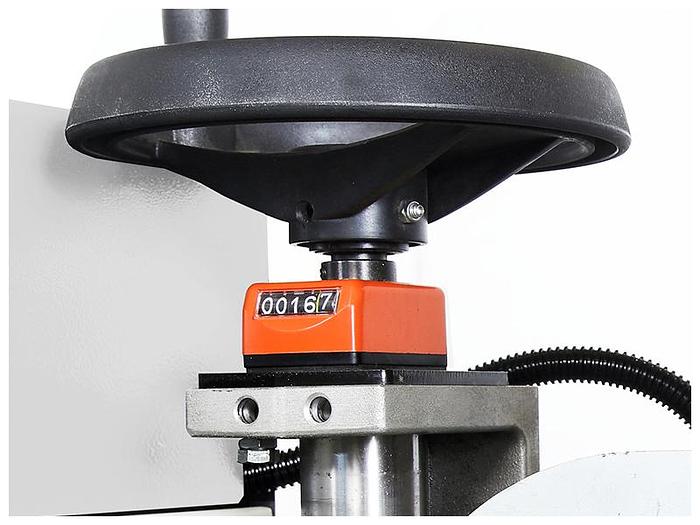

- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness.
Specifications
Manufacturer | Cantek |
Condition | New |
Shipping weight | 1021 lbs. |
Shipping dimensions (LxWxH) | 89'' x 29'' x 52'' |
Machine weight | 766 lbs. |
Max. machine dimensions (LxWxH) | 110'' x 61'' x 49.4'' |
Air | 6 CFM / 85 - 100 PSI |
Total connected power | 4.5 HP |
Dust Collection outlet dia. | 2 x 4'' = 800 CFM |
Working table height | 33.7'' |
Min. panel length | 9.45'' |
Min. panel width | 4.73'' |
Edge thickness | 0.0158''~0.0787'' |
Panel thickness | 0.472~1.77'' |
Feeding Speed | 16.4 FPM |
Electrical requirements | 230/1/60 = 30 amps |
