SCM Startech cn k
SCM Startech cn k
Description

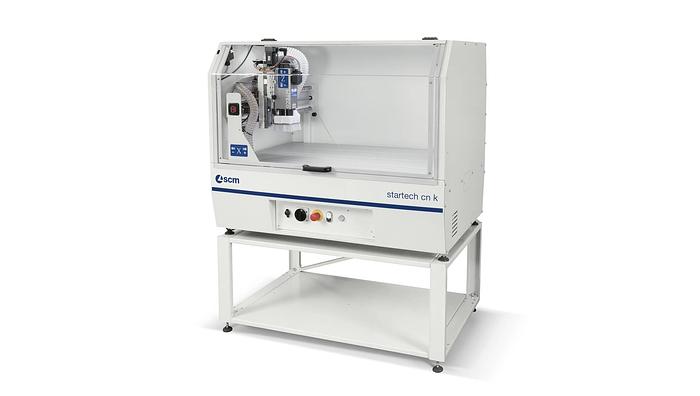

(the machine stand in the picture is optional)
Compact 3-axis machining center ideal for all types of milling, decorations, engraving, signboard creation and 3D models prototyping.
Maximum safety
The integral cabin with internal LED lighting ensures protection for the operator and keeps the surrounding environment clean.
Easy programming
“open” virtual human-machine interface capable of importing G-code from any type of CAD/CAM software (it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface).
Unique in its cateogory
The machine has a powerful 2,4 kW electrospindle with R25 tool-chuck generally used on higher-segment machines!
No limit to creativity
4th interpolating axis (lathe processing) that can be positioned on the worktable.
Specifications
| Manufacturer | SCM |
| Model | Startech cn k |
| Condition | New |
| Worktable dimensions | 1170x760 mm |
| X-Y-Z stokes | 915-610-176 mm |
| Z-axis work-piece clearance | 160 mm |
| X-Y-Z axes max. speed | 5-5-2,5 m/min |
| Max. tool diameter | 60 mm |
| Max. tool-holder diameter | 16 mm |
| Electrospindle max speed | 24000 rpm |
| Electrospindle motor power | 2,4 kW (S6) kw |
