RAS 900
RAS 900
orCall 239-770-4474
Description

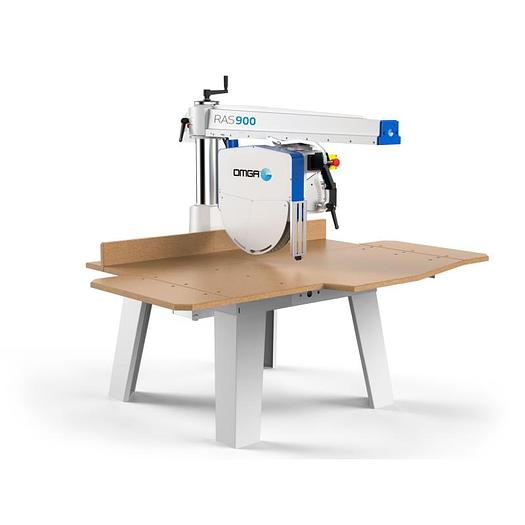

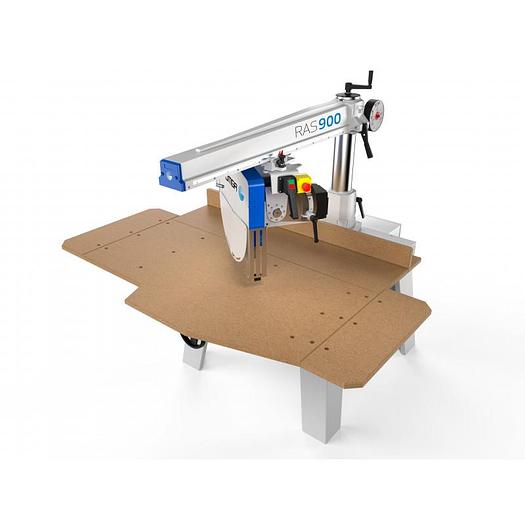

18" Radial Arm Saw 7.5HP Motor, 32 1/4" Cross Cut Capacity, 45" Rip Capacity. Cast Iron Arm.

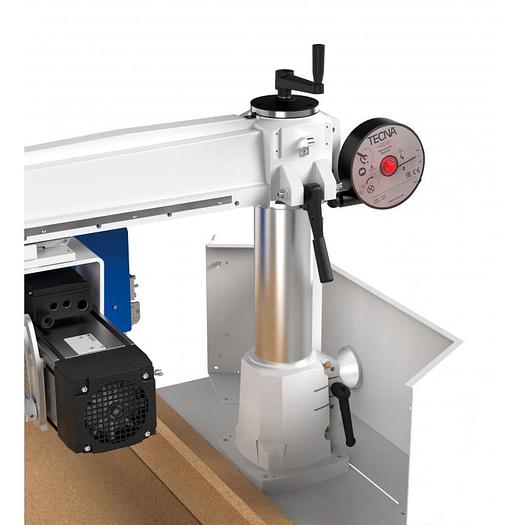

These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops.
Specifications
| Manufacturer | OMGA |
| Condition | New |
| Max. Depth of cut 45 Deg. | 4" 4 3/4" |
| Motor power | 7.5 HP 7.5 HP |
| Saw bore | 1" 1" |
| Saw Diameter | 18" 20" |
| Arbor speed RPM | 3400 3400 |
| Bevel positive stops | 0-45 0-45 |
| Cross cut capacity | 32 1/4" 44" |
| Table Size | 77" x 50" 94" x 62" |
| Max. Depth of cut -90 | 5 3/4" 6 3/4" |
| Miter positive stops | 45-0-45 45-0-45 |
| Overall dimensions | 77" x 50" 94" x 62" |
| Ripping capacity | 45" 56" |
| Shipping Weight Lbs. | 907 1012 |
| Crated Dimensions | 64" x 30" x 49" 96" x 30" x 49" |
