Description

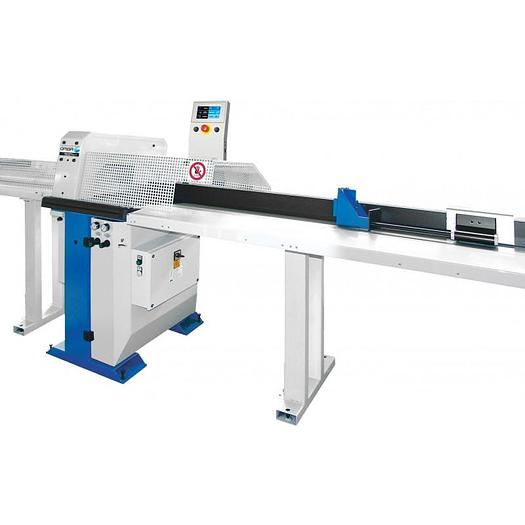

Automatic push fed saw for sequenced cutting with 18" saw blade.

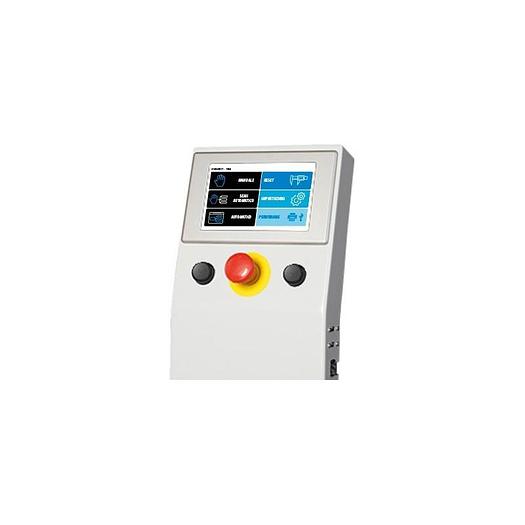

Last Generation automatic programmable cut-off saw for precision length cutting of wood stock. Suitable for any production requirement. The machine is equipped with a controller capable of performing two work cycle programs. The onboard computer is able to store cutting lists with lengths and the relevant quantity of parts. Cutting lists can be input direct for the NC keypad or with direct serial connection to a remote PC. The system is available in 13' or 20' useable lengths.
Specifications
| Manufacturer | OMGA |
| Condition | New |
| Max. piece thickness | 4 1/2" 4 5/16" 4 5/16" |
| Max. piece width | 12 5/8" 12" 12" |
| Max. infeed length | 14' - 20' 13'9" or 20'4" 13'9" or 20'4" |
| Max. feed Speed | 200 FPM 400 FPM 200 FPM |
| Saw blade motor power | 6 HP 6 HP 6 HP |
| Saw blade diameter | 18" (20" Opt) 18" (20" Opt) 18" (20" Opt) |
| Feed motor power | 2.5 Nm (.75 kW) 2.7 Nm (1.50 kW) 2.5 Nm (.75 kW) |
| Cutting Speed | 0.5 - 1 sec. 0.4 - 1 sec. 0.5 - 1 sec. |
| Average number of cuts | 15 - 20 / min. 25 - 35 min. 15 - 20 min. |
