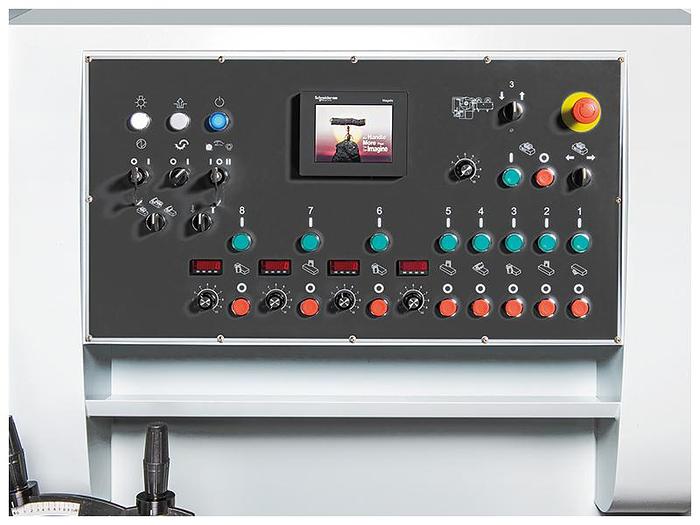

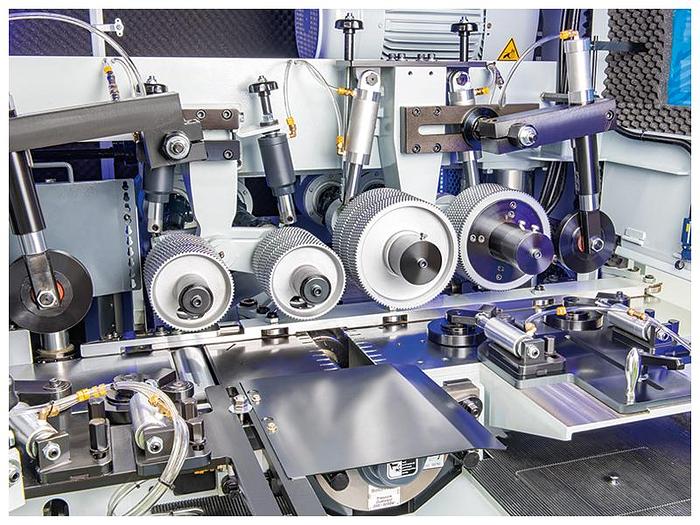

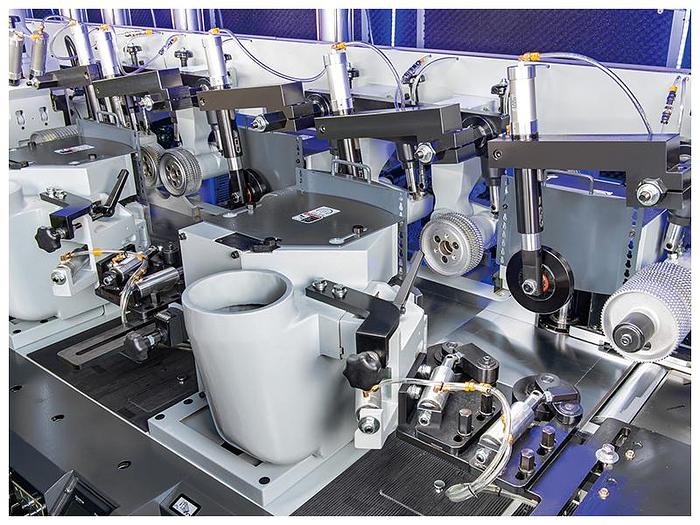

Why Leadermac Speedmac Moulder Series? Heavily built cast iron frame, or fabricated steel frame, ensures the production of quality finished products at high speed rates. The Speedmac moulder comes with high quality components, ensuring the best finish possible. 4 pieces of Abec 7 Precision Bearings per spindle – ensuring an excellent finish on your products. The Speedmac moulder comes standard with Setworks, with a range of series of automation available for easy and consistent set up by your operator, ensuring quick changeovers. With Leadermac’s competitive price advantage, we ensure the Speedmac comes with all the features and options to ensure you get a machine that will hold up to your high speed moulder production needs. Turnkey solutions include on-site operator and maintenance training Heavy-duty cast iron, or fabricated steel frame provides superior vibration damping which produces superiorly finished parts and promotes long bearing & machine life Tightly coupled machine ensures smooth and consistent feeding to assist in producing high quality finish All tables and fences hard chromed with approximately 0.012”-0014” thick hard chrome which ensures maximum longevity Comes with more top driven and bottom full width driven feed rolls than other moulders of its size Bottom bed rolls can be adjusted up and down with a simple adjustment from the front of the machine. 6000, 7200 or 8000 rpm spindles each with (4) ABEC 7 precision bearings per spindle which provides smooth surface finish results Larger cutterhead swing allows for deeper and more complex profiles. Pneumatic side holdover provides consistent side pressure to the fence Pneumatic hold down pressure to all top feed rolls provides consistent and repeatable pressure Pneumatic chip breakers ensuring consistent pressure Full width driven infeed & outfeed bed rolls Machine comes standard with Easyset touch screen control setworks (other setworks systems available to increase automation) Set up controls mounted on pendant with 12’ cord to allow operator to carry in front of machine during setup. Axial adjustment of last bottom head from front of machine Heavy duty pneumatic, automatic and programmable table lubrication system Centralized grease lubrication system Safety sound enclosure is standard Pneumatic pressure to chip breakers, holdovers, and top feed rolls 260, 300 or 400 fpm feed speeds Variable frequency drives for spindles: allow RPM of spindles to be varied and act as a fully electronic braking system. Split hold down pressure shoe Anti-kickback fingers for ripping operations Rip bed plates / special pressure shoe for ripping operations Universal spindle 7200 or 8000 RPM spindles for increase feed speeds 2”, 12”, 13”, or 15.75” wide machines Grooved bed machines for short part feeding 8” diameter feed rolls in lieu of 5.5”/40mm standard rolls 2/2 Heavy duty feed system for more challenging products Increased Axial adjustment to vertical spindles Tilting vertical spindles Directly opposed side heads Smartset 100 Setworks System with touch screen control, memory system, and motorized positioning for near side and top head, utilizing ball screw and rotary encoder for true accurate and repeatable positioning. Proset Setworks system, with link to the grinding room, allowing the building of tool, profile libraries. Transfer of measurements after grinding via a video measurement stand to the PC to update all profiles.  This system is designed to ensure the fastest of changeovers, allowing easy management of larger numbers of tools, product profiles, and changeovers as required. Chamfering spindles for special profiling Multiple ripsaw spindle with sleeve Vertical spindle slicing/ripping system Special requirements on request.
