CS-12

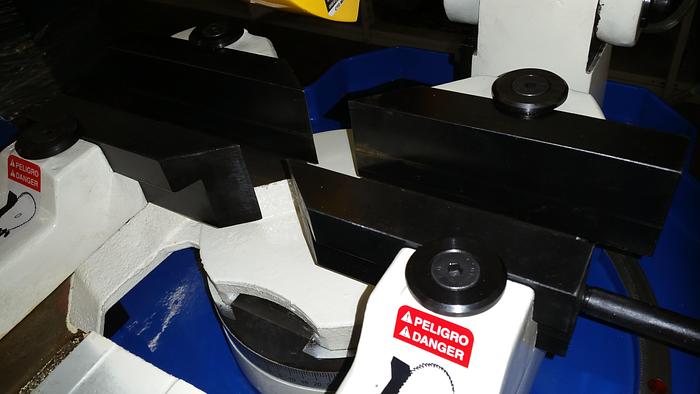

12" Mitre cold saw CTD Machines new CS-12AF is a 12” cold saw with a dual speed motor winding. This dual speed winding allows the blade to spin at 55 or 110 RPM. These two RPM speeds cover most of the cutting applications this cold saw was built for. The CS-14 cold saw has the capability to cut through solids, tubing, or pipe. The head has a strong 3 HP motor coupled to a direct drive gear box that allows the blade to cut through the material easily for improved blade life. The CTD CS-12AF cold saw can miter 45 degrees to the left and right with the ability to slot perpendicular to the material as well. The vise has a taper lock system that helps increase production when repetitive cutting is required. The vise clamps on both sides of the saw head increasing blade life. The CTD CS-12AF cold saw includes: 2 cold saw blades, horizontal clamps, floor stand, coolant pump with recirculation tank for cooling & washing chips away from the blade to improve blade life. Specifications Standard Equipment 3 HP Baldor motor Solid Round at 45° 3" - Square Tube at 45° 3.5" 3.5" - Rectangle Tube at 45° 3.5" x 2.8" - Round Tube at 45° 4" Solid Round at 90° 3.5" - Rectangle Tube at 90° 6.3" x 3.5" - Square Tube at 90° 4" x 4" - Round Tube at 90° 4.7" Single Action Vice with Cam Lock Max. Vice Opening 6.5" Operation Manual cycling - Head Style Pivot Arbor Size 1.26" * specifications subject to change without notice. Floor Stand 2 Blades Coolant Pump with fluid holding tank Shipping Weight 550 lbs. Shipping Dimensions 61" x 45" x 50" Optional Equipment Floor Stand 2 Blades Coolant Pump with fluid holding tank Shipping Weight 550 lbs. Shipping Dimensions 61" x 45" x 50"
