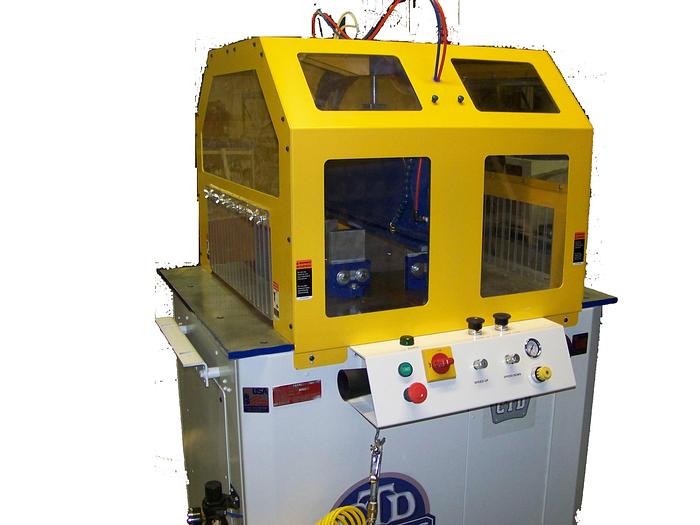

UCS 222M

22" Blade capacity semi automatic Miter cut-off saw, Manual, Quill controlled, or Digital option The CTD up-cut saws are engineered for accurate, fast and safe production cutting of wood, aluminum, plastic and non-ferrous metals. The saw blade remains under the table surface until the cut is made. An air proximity sensor adjacent to the blade and a new extended blade guard with Lexan windows provide a very safe operation. A maintained contact, two hand control unit is standard. These models employ a time-tested and dependable Baldor motors. Specifications C.F.M. 14.04 SCFM/2,18 CFM Optional Equipment In feed and Out feed Tables​ Lubricate System Automatic Stop Digital Stop 22 A.T.B. or T.C. Systi-Matic Blades Standard Equipment 5 HP Baldor TEFC Motor 3 Premium Notched Belts Filter, Regulator w/Air Pressure Gauge Magnetic Starter in NEMA 12 Box with Low Voltage Controls Tempered Chrome-Moly Spindle Heavy Steel Spindle Housing 4" Dust Chute 400 CFM Suggested Capacity 1" x 12" – 2.5" x 8.5" – 4" x 5" 5" x 7" on Special Order
