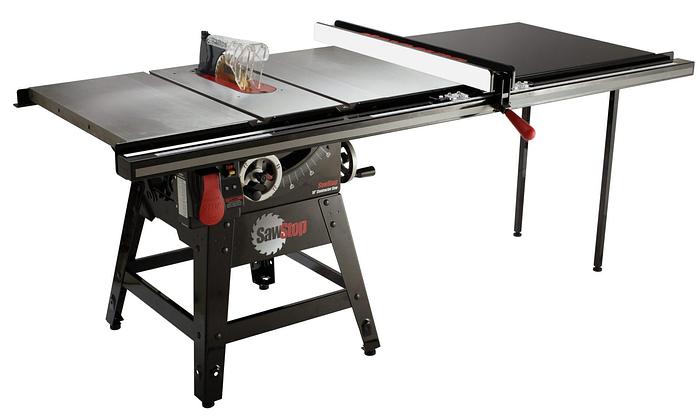

Contractor Saw CNS™ (52” T-Glide Fence Assembly)
Contractor Saw CNS™ (52” T-Glide Fence Assembly)
$2,350 (USD)
orCall 239-770-4474
Description
52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
SawStop Safety System stops on contact with skin.
Includes Two Steel Extension Wings
The most configurable saw in the SawStop lineup
Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw at an affordable price.
(2) Steel Extension Wings
(1) Miter Gauge
(1) Micro Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Standard Lockdown Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(1) Assembly Instructions
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm hex Key
(1) Blade Spacing Adjustment Gauge
Specifications
| Manufacturer | SawStop |
| Condition | New |
| 52" Rip Capacity | 52” T-Glide Fence Assembly |
| Motor Option(s) (60Hz TEFC) | 1.75 HP available |
| Overall saw dimensions 52 in | 85 1/4" W x 45" D x 34 3/4" H |
| Motor Configuration(s) | CNS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase). |
| Saw body footprint | 25 3/4" W x 27" D (w/stand installed) |
| Cast iron table | 20″ W x 27″ D |
| Cast iron table (w/ extension wings) | 44″ W x 27″ D |
| Extension wings | 12″ W x 27″ D Stamped Steel (optional cast iron for purchase) |
| Extension table 52 in | 40 1/8″ W x 27″ D |
| Shipping weights - w/ 52 in fence systems | 373 lbs (4 boxes) |
| Shipping dimensions (saw body only) | 35" W x 30" D x 20" H |
| Shipping weight (approx.) | 240 lbs (table saw only) |
| Assembled weights - w/ 52 in fence systems | 335 lbs |
| Weights - table saw only | 225 lbs |
| Weights - (optional cast iron wings) | 35 lbs each |
| Blade | 40-tooth, prof. grade, 5/8″ arbor |
| Blade diameter | 10" |
| Blade tilt | Left |
| Blade kerf | 0.118″ (3mm) |
| Blade plate thickness | 0.078″ (2mm) |
| Max. depth of cut, blade at 0º | 3 1/8″ |
| Max. depth of cut, blade at 45º | 2 1/4″ |
| Max. rip, left of blade (w/36” or 52” T-Glide Fence) | 12 1/2" |
| Max. rip, right of blade (w/52” Fence) | 52 1/2" (w/optional 52" rails) |
| Dado diameter | 8" (requires dado brake cartridge & insert) |
| Dado max. width | 29/32” |
| Arbor diameter at blade | 5/8" |
| Main bearing size | 62mm OD x 30mm ID |
| Second bearing size | 52mm OD x 25mm ID |
| Table in front of blade (max. elevation) | 10 5/8" |
| Table behind blade (max. elevation) | 7 1/8 |
| Arbor Runout | 0.001″ Maximum allowable runout |
| Table flatness measured diagonally | 0.016″ Maximum gap |
| Blade alignment with miter slot | 0.010″ Maximum displacement |
| Deviation of miter gauge indexing stops from actual | ±0.25º |
| Alignment between splitter and blade | 0.010″ Maximum difference |
| Miter slots T-shaped | 3/4″ at top, 1″ at bottom, 3/8″ deep |
| Miter slots center | 11 1/8″ center-to-center |
| Miter slots info | 5 1/2″ (arbor flange to center of right slot) |
| Dust collection port diameter | 4" |
| Riving knife / splitter thickness | 0.090" (2.3 mm) |
| Blade guard | Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase) |
| Insert | zero clearance, phenolic core, melamine surfaces |
| Hand wheels | 6″ diameter, cast alum. w/ ABS handle |
| Belts | V-ribbed belt – static dissipative |
| Dimension | 85 1/4 " w, 45" d, 34 3/4" h |
