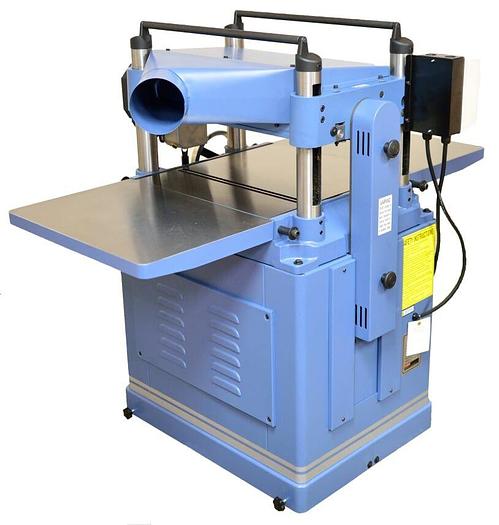

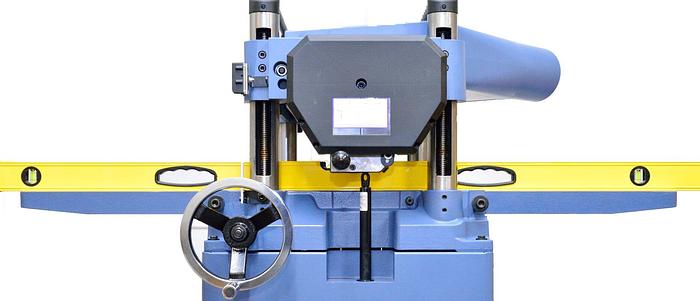

20" Planer w/Oliver HCX Helical Cutterhead - 5HP, 1PH - M-4430
20" Planer w/Oliver HCX Helical Cutterhead - 5HP, 1PH - M-4430
$4,299.99 (USD)
orCall 239-770-4474
Description
Unique design allows motor and cutter head to move in unison.
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.

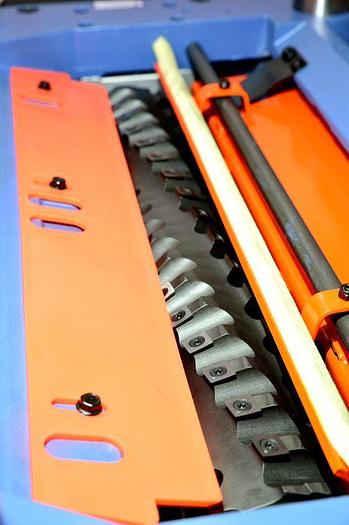

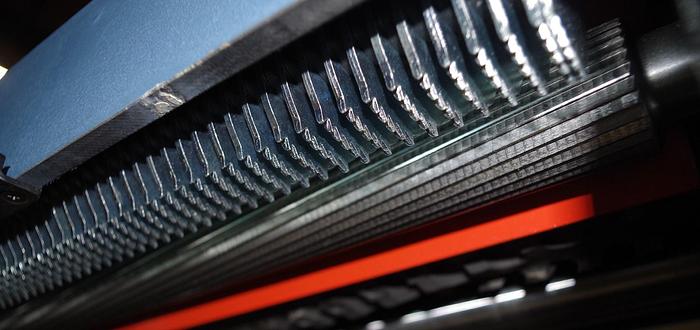

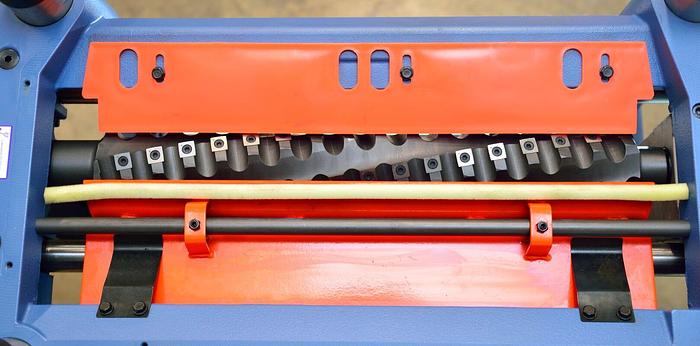

Oliver HCX Helical cutterhead with premium carbide inserts.

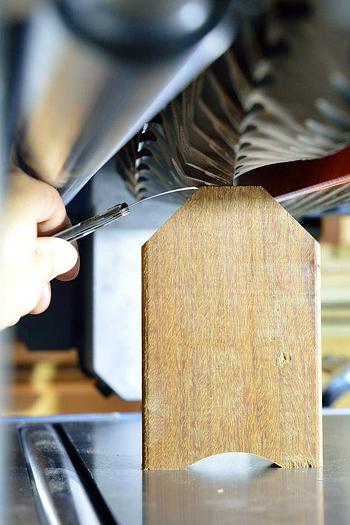

4-sided cutting inserts are indexed and easy to replace.

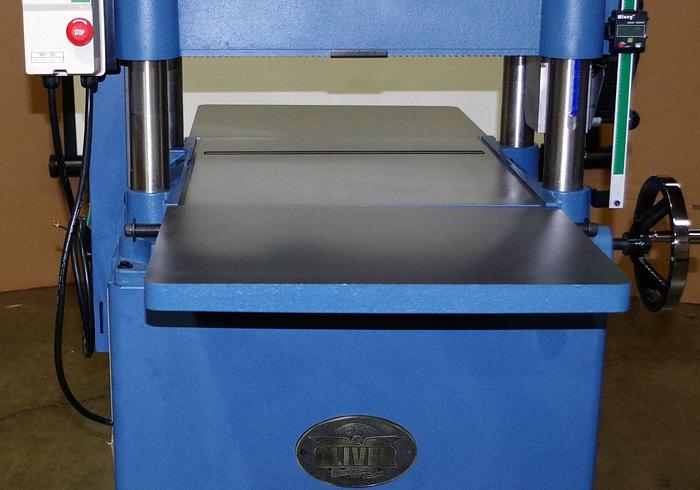

Heavy cast iron construction including extension wings.
Table is precision ground for smooth stock feeding
Table is fixed allowing easy use of auxiliary stock support

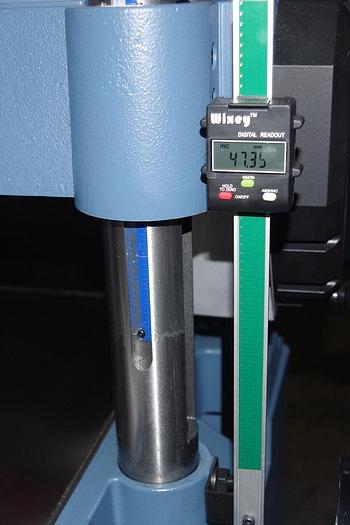

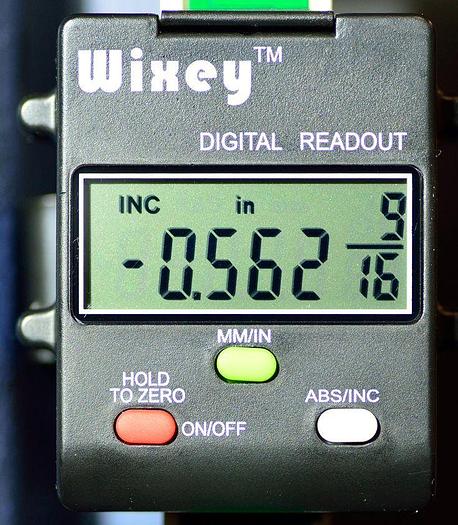

Wixey digital read out allows precise thickness settings

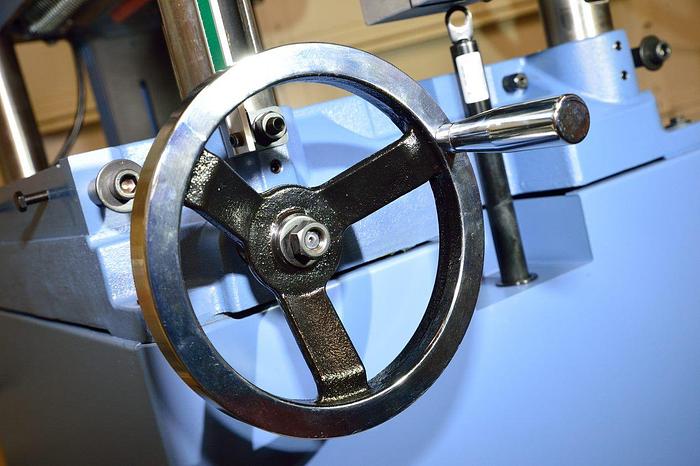

Large hand wheel and support struts allow easy height adjustment.
Four-post design ensures head alignment regardless of stock thickness.

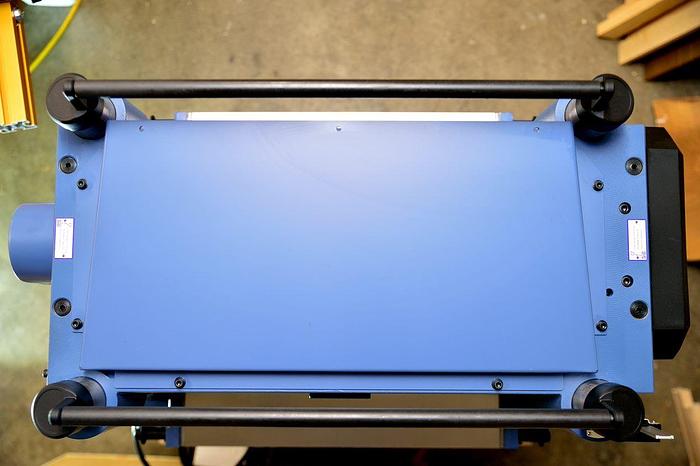

Top mounted roller for easy multiple passes.

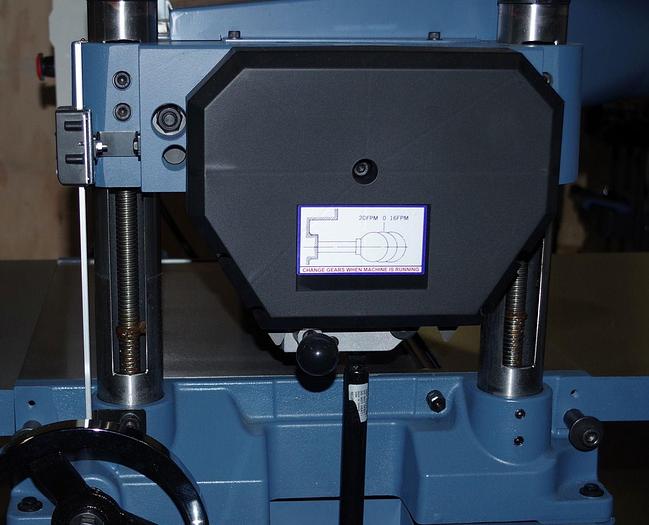

Two-speed feed gearbox for better cuts.
Oil bath gear lubrication for years of performance.
5” port allows excellent dust management.
Built-in heavy-duty casters for mobility.

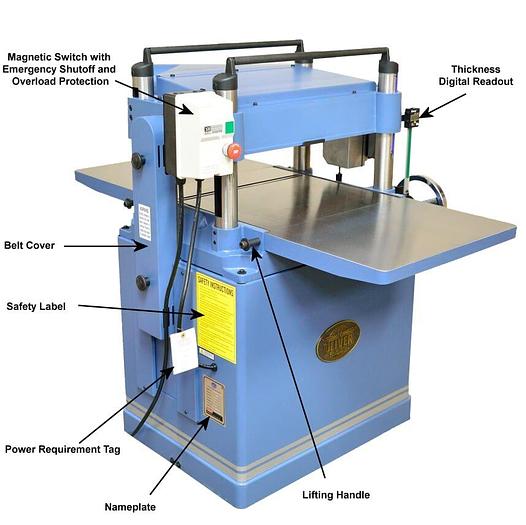

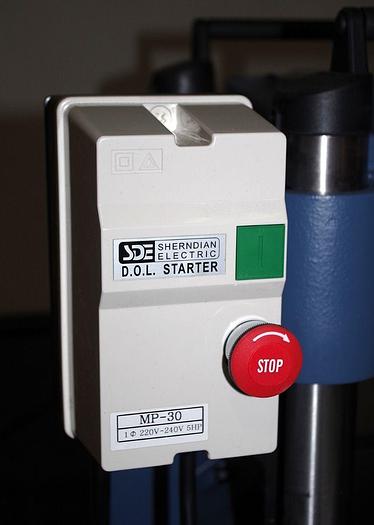

Magnetic switch for added protection and safety.
CSA listed.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Specifications
| Manufacturer | Oliver |
| Condition | New |
| Stock Number | M-4430 |
| Model Number | 4430 |
| Overall Dimension | 51”(L) x 40”(W) x 46-1/2”(H) |
| Ph | 1Ph |
| Stock No. (5HP, 1Ph) | 4430.201 |
| Maximum Stock Width | 20" |
| Maximum Depth of Cut | 1/4" (Stock less than 8” wide) 1/8”(Full Width) |
| Maximum Stock Thickness | 8" |
| Minimum Stock Thickness | 1/4" |
| Minimum Stock Length | 7" |
| Dust Port Diameter | 5" |
| Minimum CFM Required | 650 CFM |
| Feed Speeds | 16/20 |
| Bed Rollers | 1, Adjustable |
| Table Size | 21” x 20” |
| Table Size w/Extension Wings | 51” x 20” |
| Table Height | 29-3/4” |
| Cutterhead Diameter | 3-1/4" |
| Cutterhead Speed | 3450 RPM |
| Number of Knives | 68 |
| Number of Knives (helical) | 68 |
| Footprint | 22-1/2” (L) x 28-3/4”(W) |
| Footprint - with Table | 51”(L) x 40”(W) x 46-1/2”(H) |

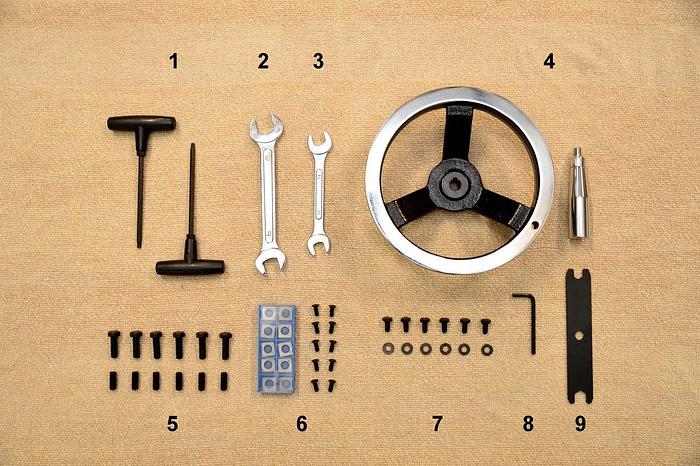

| Motor | Included 10 Cutter inserts and compatible Torx screws. |
| Motor 1Ph | 5HP 1Ph 230V (1Ph, 18 Amp) |
| Overall Dimensions | 38-1/4” (L) x 32”(W) x 51-3/4”(H) |
| Net Weight | 546 lbs. |
| Gross Weight | 625 lbs. |
