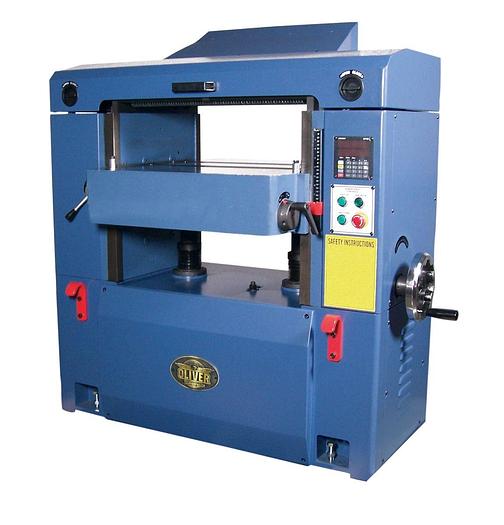

25” Planer with Byrd Shelix Cutterhead - 4470.102B - 15HP, 3PH

25” Planer with Byrd Shelix Cutterhead - 4470.102B - 15HP, 3PH

$14,999.99 (USD)

orCall 239-770-4474

Description

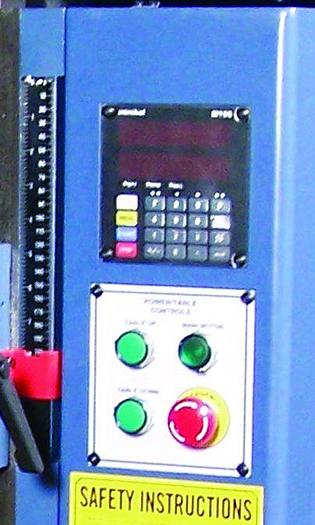

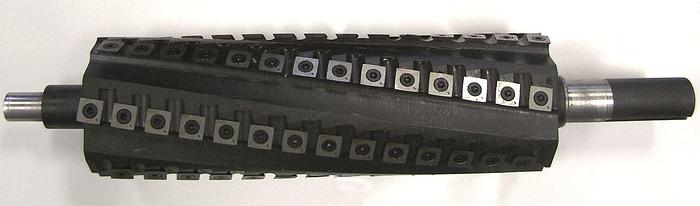

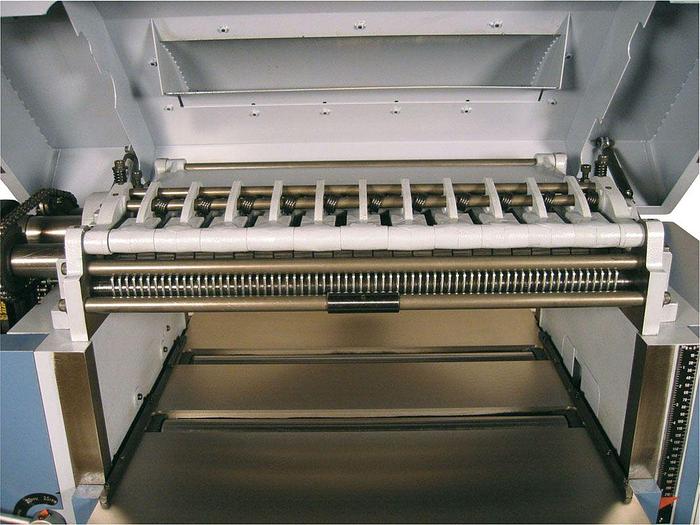

Helical carbide inserts are indexed for quick changing. Massive cast iron construction throughout allows up to a 1/4” cut. Polished built-in table roller assists movement of rough stock. Segmented infeed roller and sectional chip breaker easily handle rough stock. Dual outfeed rollers assist with heavy stock. 3-speed gear box provides the perfect feed rate. Magnetic controls with emergency off switch for safer operation. Control panel with digital readout allows precise thickness settings. Power assisted table makes for quick, accurate, adjustments. Hinged access to cutter head and feed rollers for quick set-up. 5” dust chute easily handles chip removal. Easy access to motor, drive train, and gearbox assist in maintenance and adjustment. Powerful TEFC motor available in three phase. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Stock Number4470B
Model Number4470.102B
CutterHeadByrd Shelix
Ph3Ph
Stock No. (15HP, 3Ph, Byrd)4470.102B
Maximum Stock Width25”
Maximum Depth of Cut1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25"
Maximum Stock Thickness9-1/4”
Minimum Stock Thickness1/8” Manual 15/64” Automatic
Minimum Stock Length10"
Dust Port Diameter5"
Minimum CFM Required900 CFM
Infeed Roller Diameter3"
Steel Outfeed Roller Diameter3" (x2)
Feed Speeds20, 25 and 30 FPM
Bed Rollers2, Adjustable
Table Size26” x 32”
Cutterhead Diameter3-3/8”
Cutterhead Speed4,800 RPM
Number of Knives Byrd125
Footprint47-1/2” L x 21” W
Table Support2-Column
Motor 3Ph15HP, 240V/440V* Prewired 220V (38/19 Amps)
Overall Dimensions46”L x 23”W x 56”H
Net Weight1,732 lbs.
Gross Weight1,850 lbs
