22” Planer with Byrd Shelix Cutterhead - 4455.103B - 7.5HP, 1PH

22” Planer with Byrd Shelix Cutterhead - 4455.103B - 7.5HP, 1PH

$9,999.99 (USD)

orCall 239-770-4474

Description

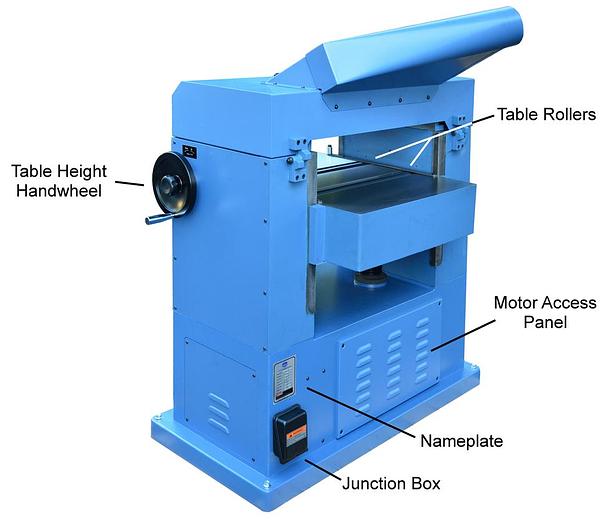

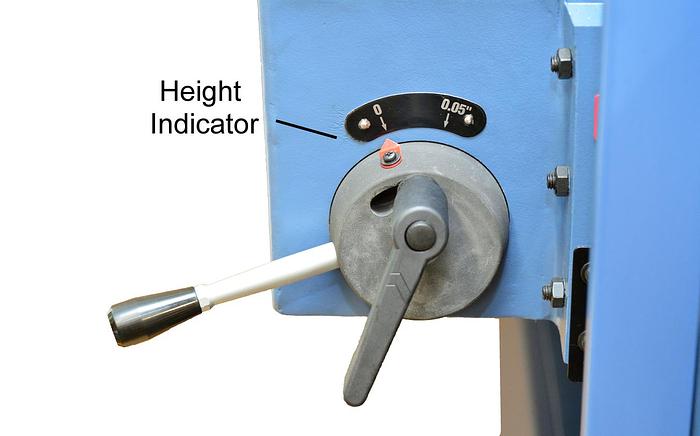

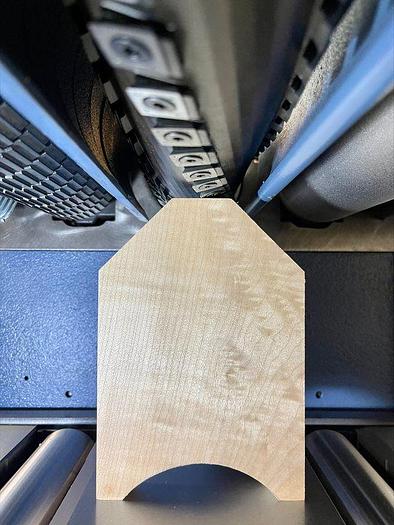

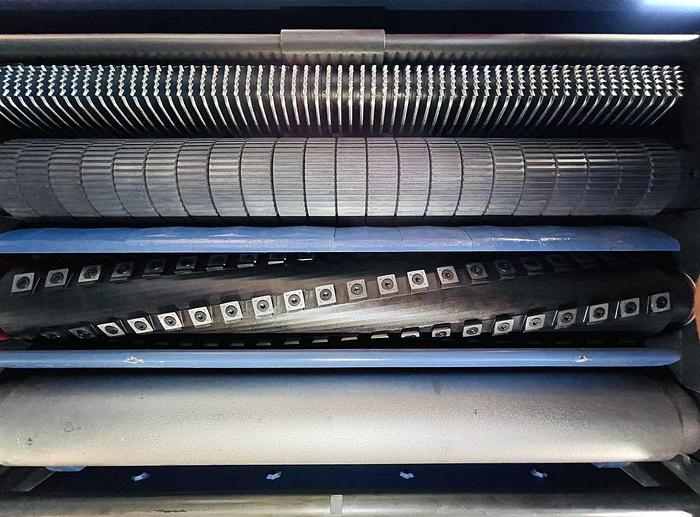

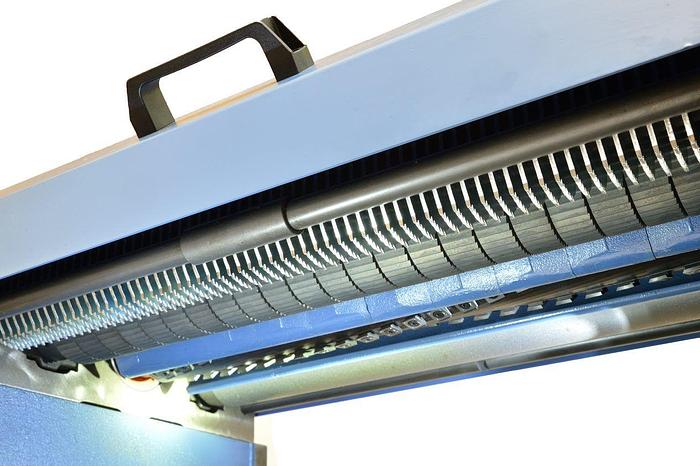

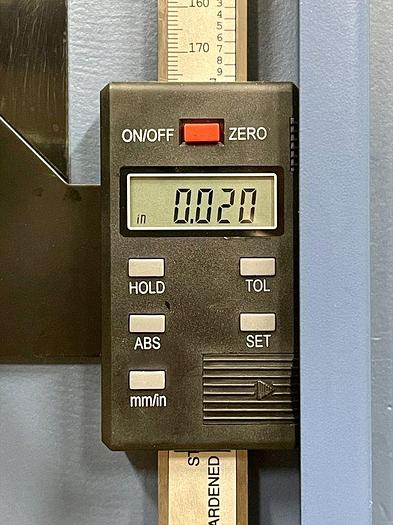

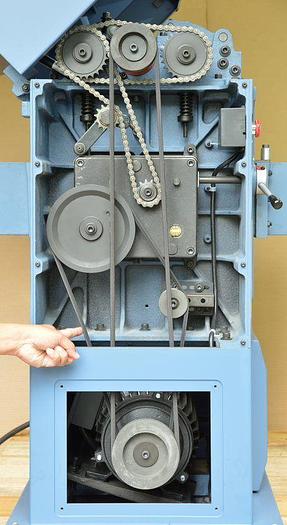

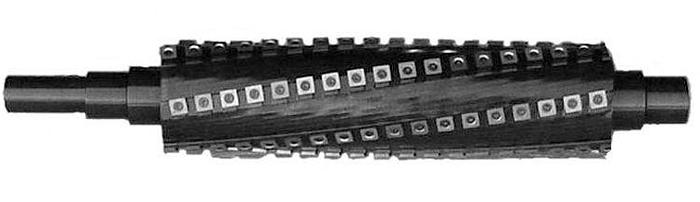

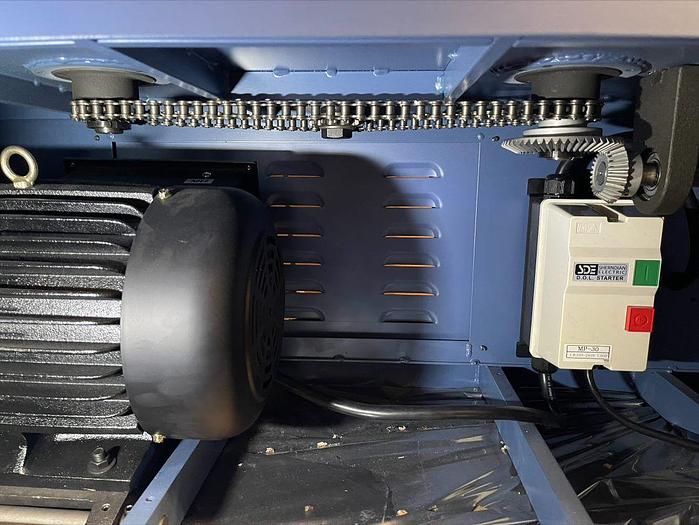

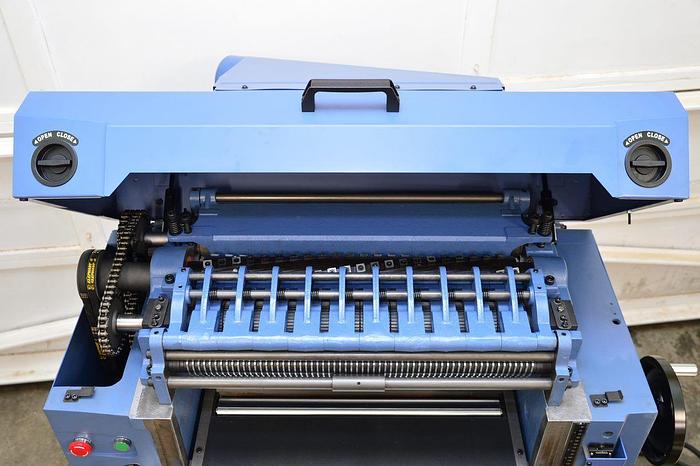

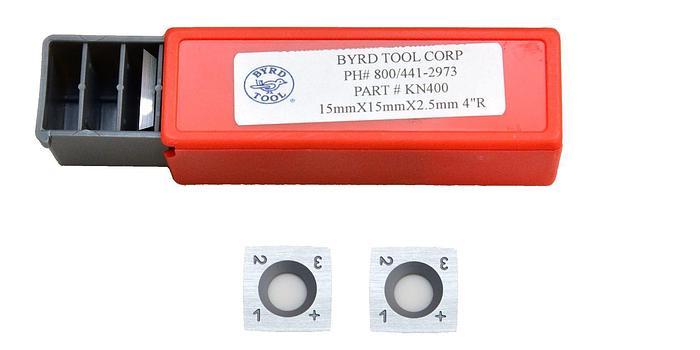

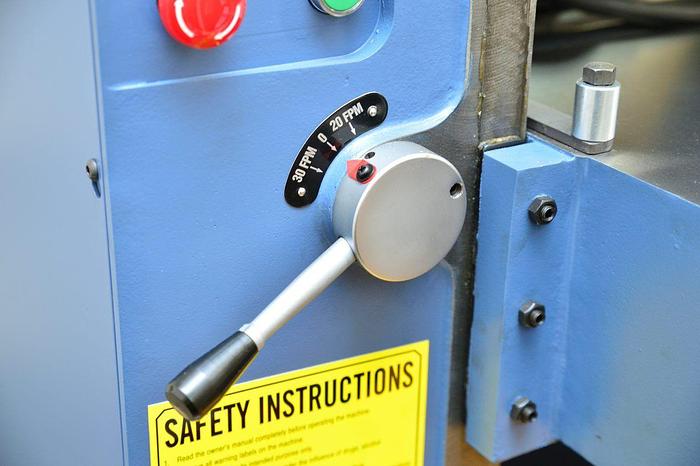

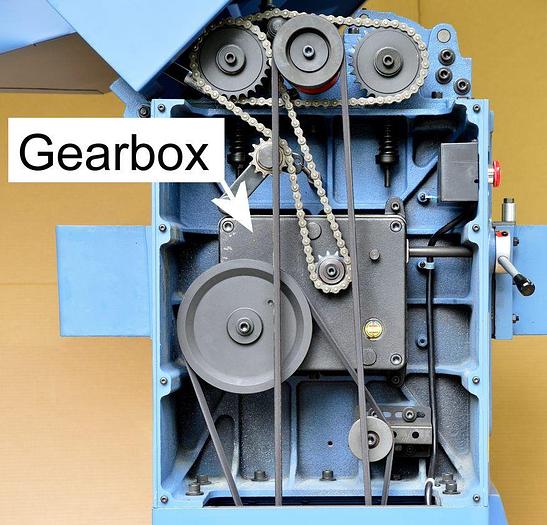

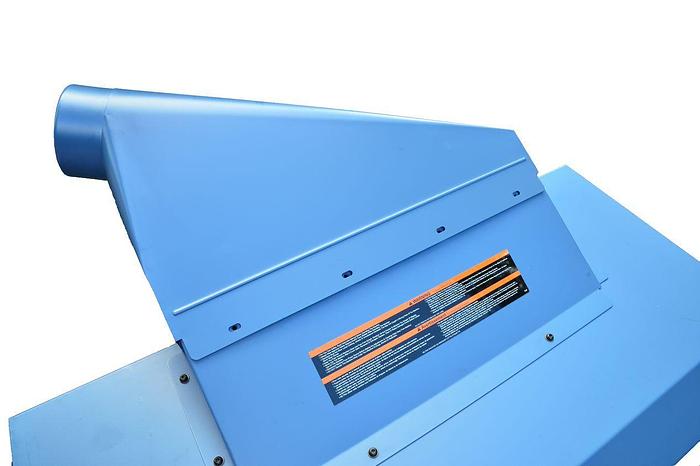

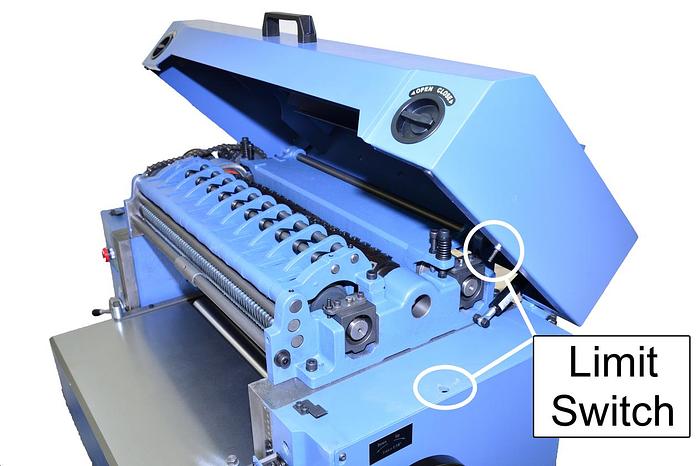

BYRD Shelix carbide inserts are indexed for quick changing. Massive cast iron construction throughout. Polished built-in table roller assists movement of rough stock. Segmented infeed roller and sectional chip breaker easily handle rough stock. 2-speed gear box provides the perfect feed rate. Magnetic controls with emergency off switch for safer operation. Digital readout allows precise thickness settings. Hinged access to cutter head and feed rollers for quick set-up. Easy access to motor, drive train, and gearbox assist in maintenance and adjustment. 5” dust chute easily handles chip removal. 3 V-belt drive smoothly transfers power to drive train and cutter head. Powerful TEFC motor available in single phase. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Stock Number0
Model Number4455.103B
CutterHeadByrd Shelix
Ph1Ph
Stock No. (7.5HP, 1Ph, Byrd)4455.103B
Maximum Stock Width22"
Maximum Stock Thickness9"
Minimum Stock Thickness1/8"
Minimum Stock Length10"
Dust Port Diameter5"
Minimum CFM Required900 CFM
Infeed Roller Diameter3"
Outfeed Roller Diameter3-5/16"
Feed Speeds20 and 30 FPM
Bed Rollers2, Adjustable
Table Size23-3/4” x 32-1/4”
Cutterhead Diameter3"
Cutterhead Speed5,000 RPM
Number of Knives (straight)4
Number of Knives Byrd110 Inserts
Footprint44”L x 22”W
Table Support2-Column
Motor 1Ph7.5HP, 220V Only (38 Amp)
Overall Dimensions45”W x 32”D x 50”H
Net Weight1,340 lbs
Gross Weight1,550 lbs.
