10" Professional Table Saw - 1.75HP 1Ph with 36" Rail - 10040
10" Professional Table Saw - 1.75HP 1Ph with 36" Rail - 10040
$1,699.99 (USD)
orCall 239-770-4474
Description

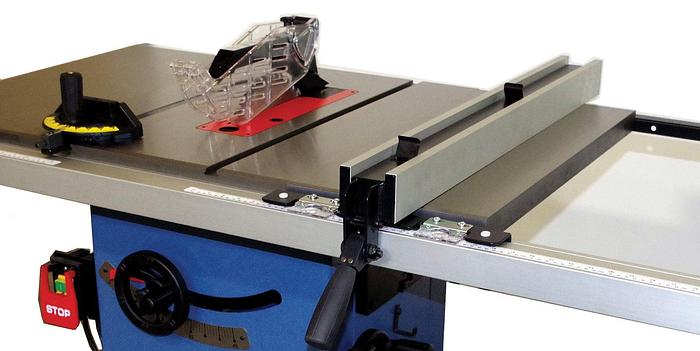

Large precision ground table with cast iron extension wings.

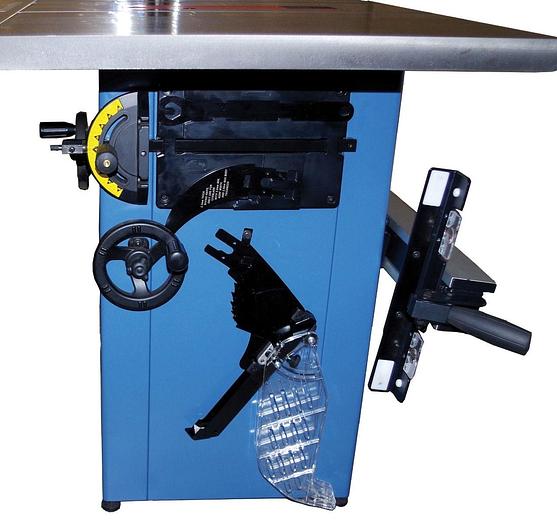

Cabinet mounted blade trunnion.
Spindle lock for easy blade changes.
Built in storage for fence, blade guard, miter gauge, and riving knife.
Saw blade included.
Poly V-belt for long life and smooth operation.
Extension table and legs included with 52” model.
Quick mount and release blade guard.
Riving knife included.
Built in wheels with locks for mobility.

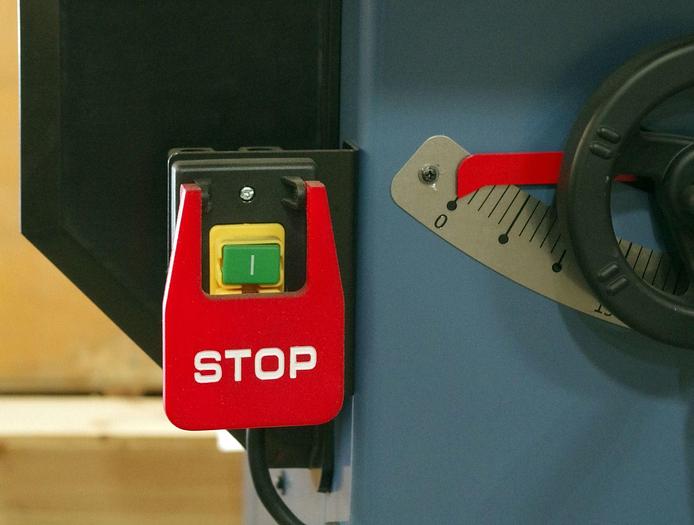

Industrial switch with large OFF paddle.
Dust shroud and hose for efficient dust management.

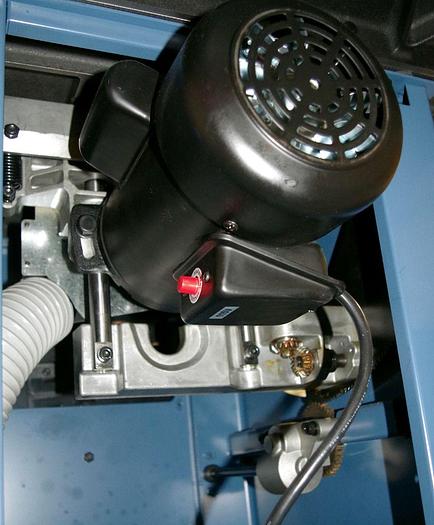

Motor includes thermo overload reset switch for added protection.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Specifications
Manufacturer | Oliver |
Condition | New |
Stock Number | 10040 |
Model Number | 10040 |
Ph | 1Ph |
Rail Length | 1Ph w/36" Rail |
Stock No. (36") | 10040.001 |
Blade Diameter | 10" |
Arbor Diameter | 5/8" |
Blade Tilt | Left |
Arbor Speed | 4,500 RPM |
Maximum Depth of Cut at 90° | 3-1/8” |
Maximum Depth of Cut at 45° | 2-1/4” |
Maximum Width of Dado | 13/16” |
Maximum Cut to Right of Blade | 36” |
Maximum Cut to Left of Blade | 12" |
Dust Port Diameter | 4” Ø |
Table Dimensions w/o Extensions | 27”D x 20”W |
Wing Size | 27" x 12" |
Table Height | 35" |
Motor 1Ph | 1.75 HP, 1Ph, 115V/220V Prewired 115V (14.8/7.4 Amp) |
Overall Dimensions | 32” x 67” |
Net Weight | 266 lbs. |
Gross Weight | 275 lbs. |
