10" Table Saw - 4016.004.A001 - 5HP, 3PH with 52" Rail

10" Table Saw - 4016.004.A001 - 5HP, 3PH with 52" Rail

$4,249.99 (USD)

orCall 239-770-4474

Description

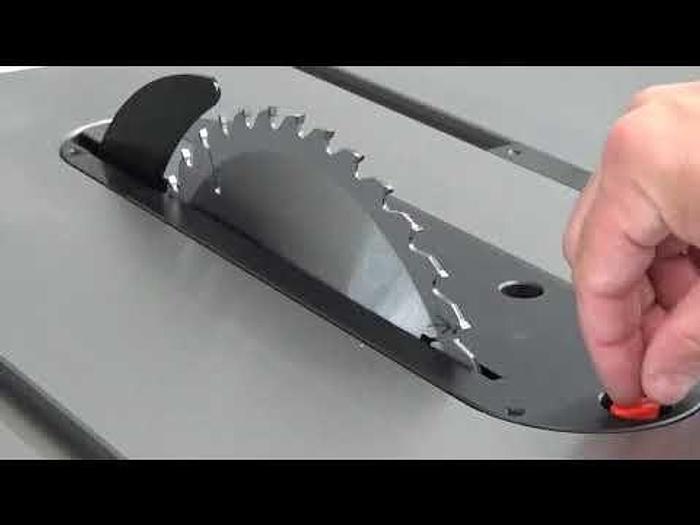

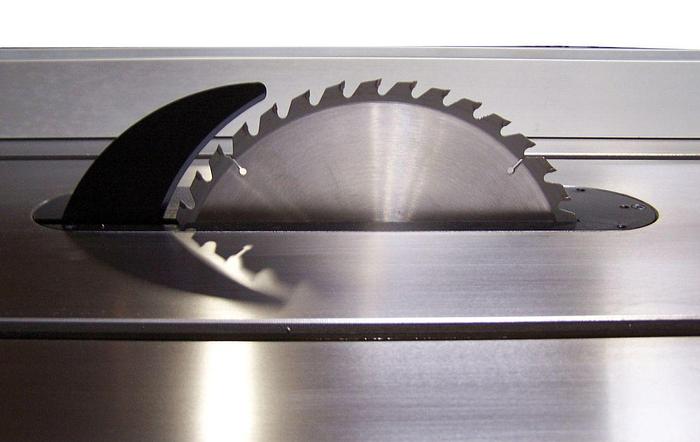

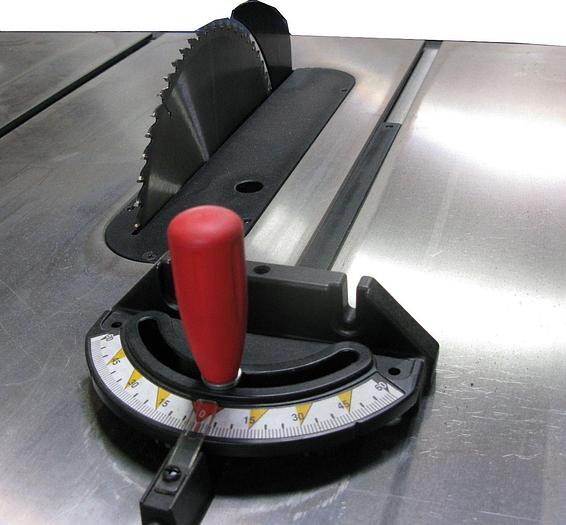

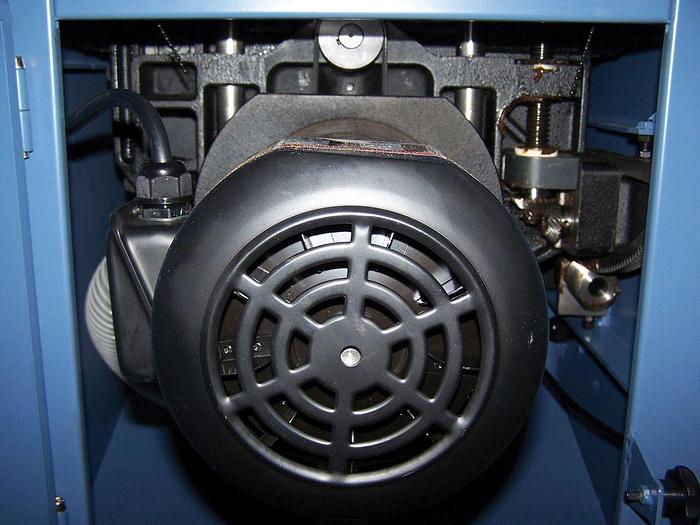

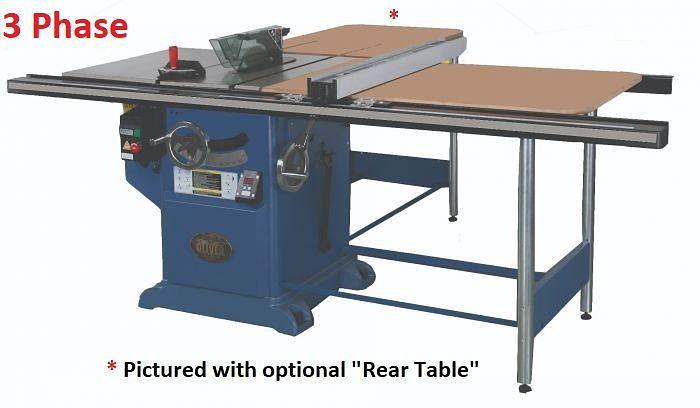

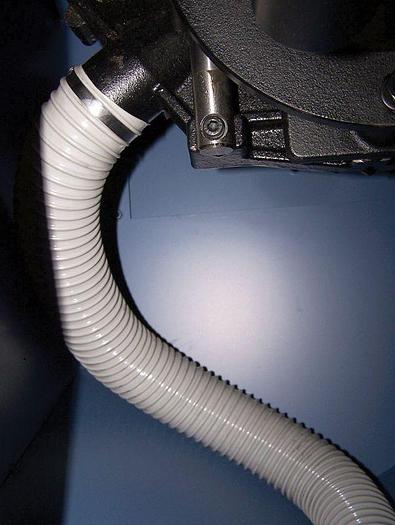

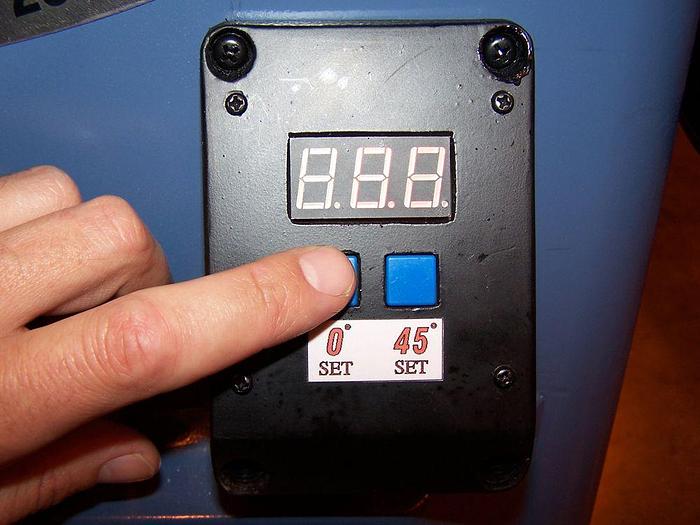

Large precision ground table provides a stable work surface. Cast iron base offers a steady platform. Fully enclosed cabinet and blade dust shroud for better dust management. Precision ground 5/8” arbor. Wide stance trunnion features a left tilt blade. Poly V-belt drive smoothly transfers power to the blade. Hydraulic assisted blade lift mechanism for easy movement. Large chrome hand wheels allow easy adjustments. Includes digital readout of blade tilt. Riving knife splitter for added safety against kick-back. Optimus T-square fence available in 52” rip capacity. 52” rail includes wood side table and (1) cast iron extension wing. Optional rear support table available (pictured) Magnetic controls with emergency off switch. Powerful TEFC motor available in three phase. Miter gauge included. Blade not included. Shipping will be calculated at checkout *Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Specifications

ManufacturerOliver
ConditionNew
Stock Number4016
Model Number4016.004.A001
Ph3Ph
Rail Lengthw/Side Table w/52" Rail
Stock No. (5HP, 3Ph)4016.004.A001
Blade Diameter10"
Arbor Diameter5/8"
Blade TiltLeft
Arbor Speed3,450 RPM
Maximum Depth of Cut at 90°3"
Maximum Depth of Cut at 45°2-1/4"
Maximum Width of Dado13/16"
Maximum Cut to Right of Blade52” with side table
Maximum Cut to Left of Blade12"
Dust Port Diameter4"
Table Dimensions w/o Extensions27”D x 21-1/4”W
Wing Size27” x 12”
Table Height36"
Motor 3Ph5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
Overall Dimensions74”L x 32-½”W x 40”H
Net Weight480 lbs.
Gross Weight720 lbs.
