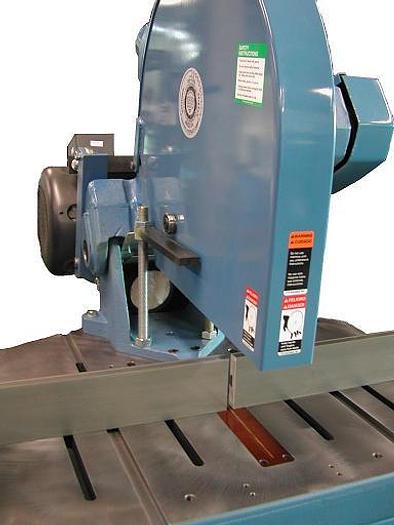

F426

16" Straight cut-off saw Incorporates all the standard features of Models M416 & M516 except that the machines cut 90° only. Specifications Straight cut-off saw 5 H.P. 3 phase Magnetic Starter 10 strokes per min 90° Only Blade Capacity Models M416 & F426, 16" OD (406mm); Models M516 & F526, 20" OD (504mm); saw blades not included. Arbor 1" (25mm) with 5" (127mm) saw collars. Spindle & Pivot Spindle mounted on preloaded and sealed bearings; with V-belt drive completely enclosed; pivot uses Timken bearings lubricated for life. Motors & Starters 5 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motor with Magnetic Starter standard; 8½ H.P., 10 H.P., & 15 H.P. motors available as optional extra. Floor Stand Heavy gage steel sheet and angle. Table Base Precision machined cast iron base with milled keyways to guide fences; disc set flush with base. Dust Outlet Two 4" (102mm) outlets provided; 1200 CFM required. Production Rate Up to 10 strokes per minute; actual production rates will vary with the type and width of the material to be cut. Actuation Hand operated standard; optional Power Downfeeds of Sawheads actuated by Two-Hand, Anti-Tie Down Maintained Contact Safety Control. Air Pressure & Consumption 3 CFM at 80 PSI (.09 cubic meters/minute at 5.6 kg/cm2) based on 10 strokes per minute; air filter/regulator/lubricator with auto drain included. Size & Weight 48" (122cm) Wide x 40" (102cm) Front to Back x 70 (178cm) High; Weight is 850 lbs. (386kg). Optional Extras Power Downfeeds of Sawheads, Clamps, Measuring Systems and Table Supports.
