Edition 60

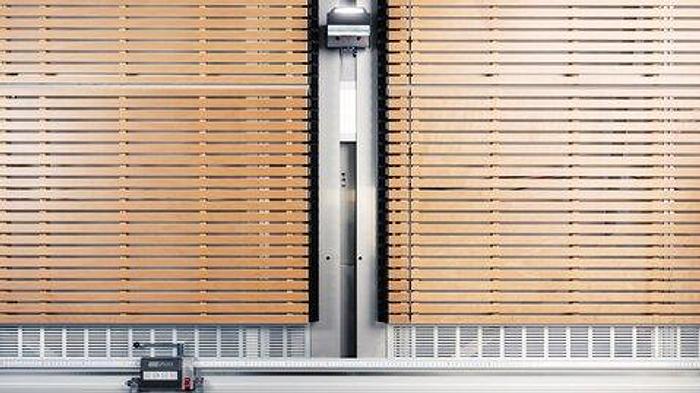

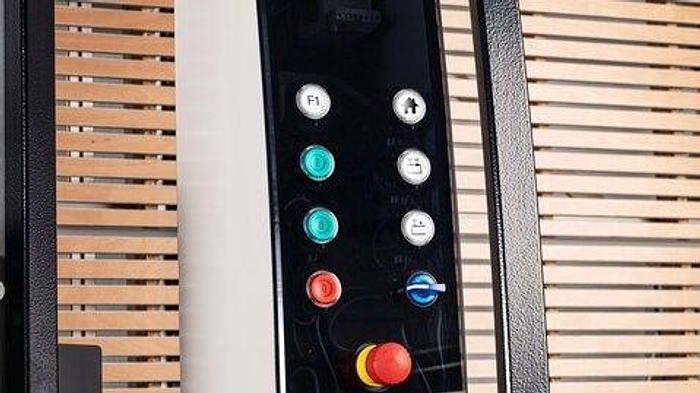

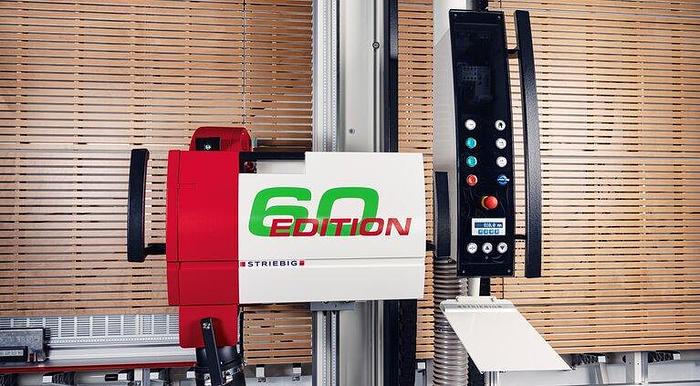

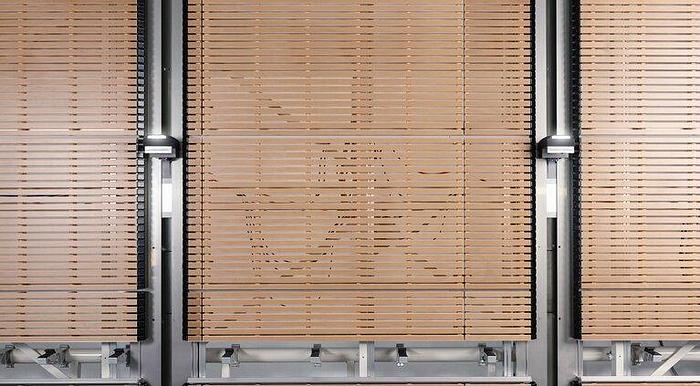

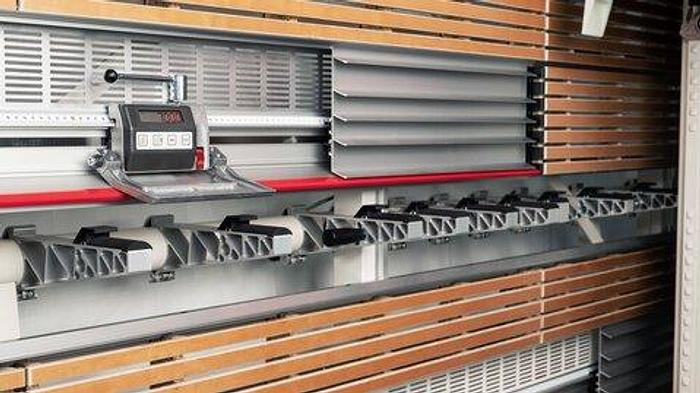

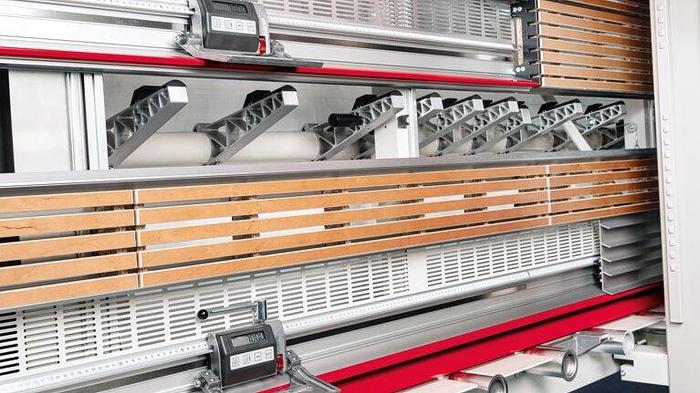

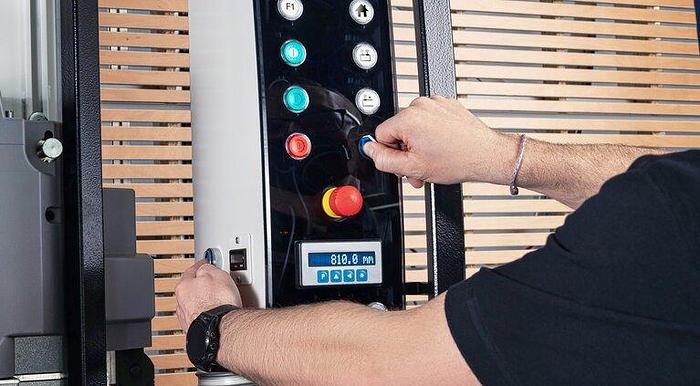

Function and technology optimally combined 1-person operation and smooth finished cut thanks to panel lowering device. There is no need to turn the panel and the cut strips can be directly divided vertically. STRIEBIG EDITION 60 PAV Strong and compact panel lowering device (PAV) The integrated panel lowering device of the EDITION 60 comprises two panel lowering units. It can be used for panel materials up to 3000 × 2150 mm and up to 160 kg (80 kg/PA unit). With an additional panel lowering unit (optional), panels up to 5000x2150mm and weight up to 240kg (80kg/PA unit) can be processed. Extensive equipment package The comprehensive equipment package of the EDITION 60 ensures efficient cutting. Wooden support wall TRK1 with integrated small parts support made of wood Panel lowering device (PAV) with two panel lowering units Pneumatic clamping of the motor carriage Pneumatically braked support rollers Digital measuring system DMS-Y, incl. fine adjustment Digital measuring system DMS-X, incl. fine adjustment Laser-supported display of the horizontal cut Clear push-button control for easy operation The EDITION 60 is operated by means of a clear push-button control. The panel lowering device can be moved quickly and precisely by means of 2-hand control. The LED lights on the panel lowering units guide the operator safely through the sawing process.
