MiniMax FS41 Elite 16" Jointer/Planer w/ Tersa Head (1 ph)
MiniMax FS41 Elite 16" Jointer/Planer w/ Tersa Head (1 ph)
$9,695 (USD)
Description

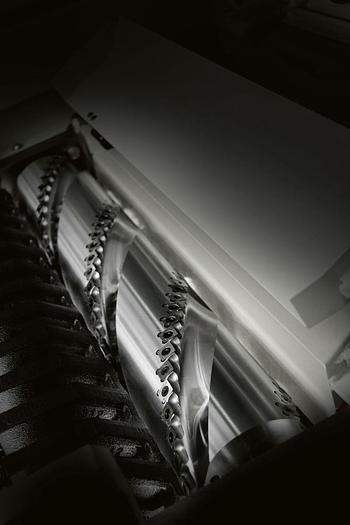

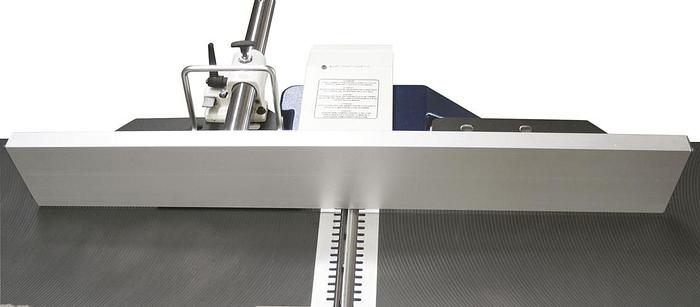

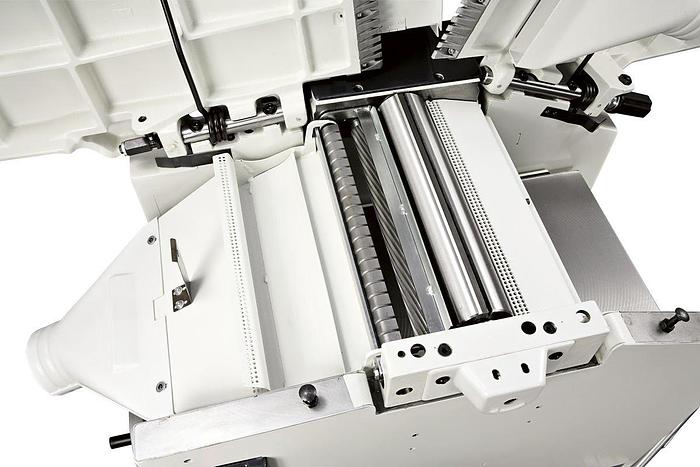

Surfacing-thicknessing machine for the demanding craftsmen and carpentries, for a high-flexible production with an “elite” finishing. The MiniMax FS41 Elite over-sized jointer and planer tables offer industrial performance, while the quick-change Tersa head, and digital readout add unmatched speed and finish for semi-professional or professional furniture and cabinet shops. Discover the "Xylent" cutterhead, available for this machine. Advantages Perfect finishing The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressureof the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing. Planing fence The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar. “Xylent” spiralknife cutter block with 3 series of knives The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement. Features: Digital-mechanical thickness readout Four-knife Tersa cutterhead Two-speed planer Industrial center-mounted fence with cast iron support boss Jointer tables lift with helper springs and safety latch American-style jointer guard Mobility kit Optional Accessories: Euro-style jointer guard Elite-series cast iron mortising attachment and chuck 4.8hp (1x230v) motor 16" Width 79" jointer bed
Specifications
Manufacturer | MiniMax |
Condition | New |
Fs 41e | |
Cutterhead working width | 410 / 16 mm / inches |
With TERSA Straight-knife CutterheadCutterblock diameter / no° of standard knivesDimension of standard knives | 87 / 3410 x 30 x 3 mm / n°mm |
With XYLENT Spiral helical CutterheadCutterblock diameter / no° of standard knivesDimension of standard knives | 87 / 6615 x 15 x 2.5 mm / n°mm |
Max. stock removal | 5 mm |
Jointer table length | 2200 / 79 mm / inches |
Planer table dimensions | 423 x 775 / 16.65 x 30.5 mm / inches |
Planer feed speeds | 6 / 12 m/min |
Min. - max. planer working height | 3 - 230 / 0.12 - 9 mm / inches |
Single-phase motor | 4.8 Hp |
Fence Tilt | 0 - 45 degrees |
Net weight | 1,000lbs |
