MiniMax fs41 Classic 16" Jointer/Planer w/ Tersa Head (1 ph)
MiniMax fs41 Classic 16" Jointer/Planer w/ Tersa Head (1 ph)
$6,895 (USD)
Description

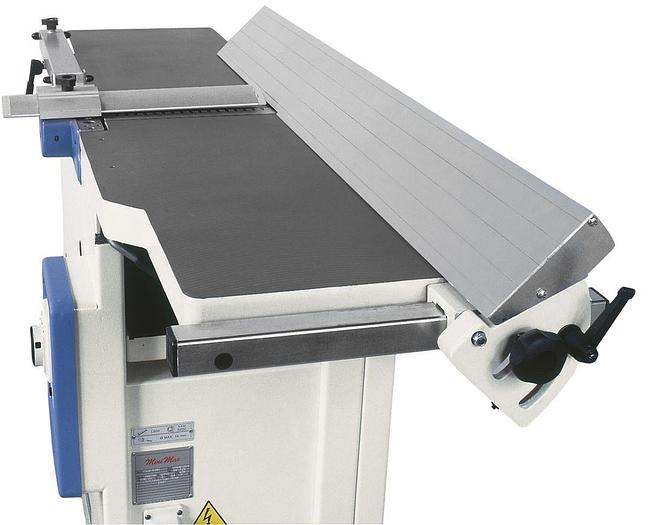

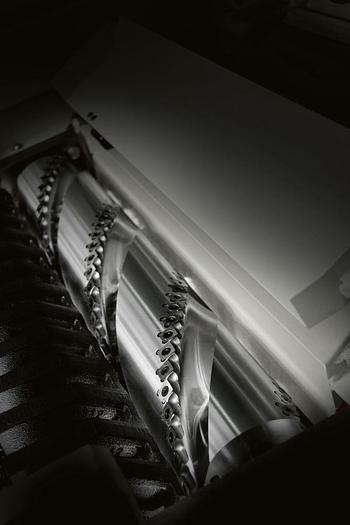

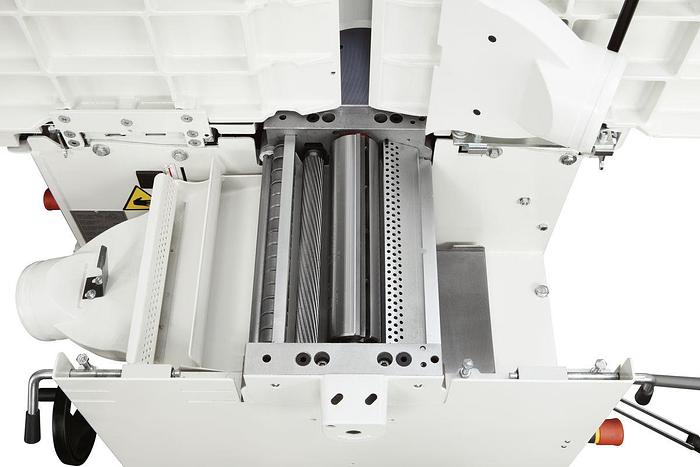

The surfacing-thicknessing planer powerful and user friendly, for D.I.Y. woodworkers and craftsmen workshops. This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why this machine may be perfect for you. Need to increase your bandsaw re-saw height due to your increased jointer width? Take a look at our S 400P or S 500P Bandsaw! Discover the "Xylent" cutterhead, available for this machine. Advantages Optimal planing The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish. Absolute rigidity Very high rigidity of the surfacing fences made of extruded aluminum with 1670 mm length. “Xylent” spiralknife cutter block with 3 series of knives The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Specifications
Manufacturer | MiniMax |
Condition | New |
Fs 41c | |
Cutterhead working width | 410 / 16 mm / inches |
With TERSA Straight-knife CutterheadCutterblock diameter / no° of standard knivesDimension of standard knives | 87 / 3410 x 30 x 3 mm / n°mm |
With XYLENT Spiral Helical CutterheadCutterblock diameter / no° of standard knivesDimension of standard knives | 87 / 6615 x 15 x 2.5 mm / n°mm |
Max. stock removal | 4 mm |
Jointer table length | 1800 / 71 mm / inches |
Planer table dimensions | 410 x 605 / 16 x 24 mm / inches |
Planer feed speed | 7 m/min |
Min. - max. planer working height | 3 - 230 / 0.12 - 9 mm / inches |
Single-phase motor | 4.8 Hp |
Fence Tilt | 0 - 45 degrees |
