MiniMax e 20- 3 Phase 9HP Manual Contouring Edgebander
MiniMax e 20- 3 Phase 9HP Manual Contouring Edgebander
$10,865 (USD)
orCall 239-770-4474
Description

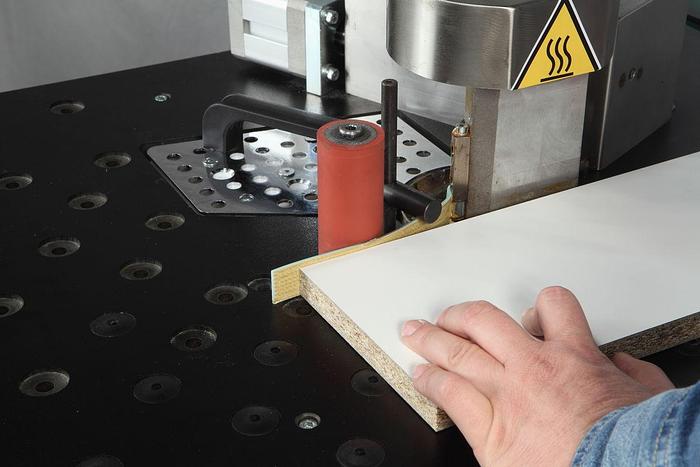

Edge banding with hot melt glueon edges in rolls and strips on shaped panels.
Simply essential and functional. Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels.
Advantages
Gluing the most critical edges without compromise.
The teflon-coated glue pot, positioned under the work table, with continuous glue circulation avoids burning of the glue. It is possible to adjusty the quantity of the glue to be applied on the edge.
No surface damage to the workpiece during machining.

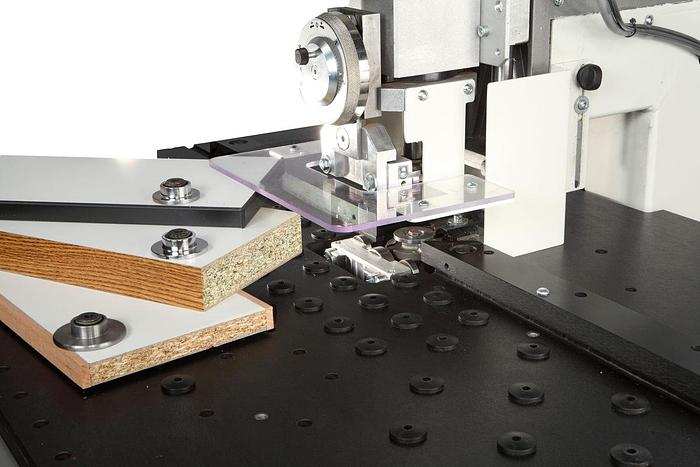

Easy machining with the special anti-scratch phenolic multilayer work table with modular holes complete with panel supports.
Front extension.
It allows an easy movement and the support of large dimensions panels (option).
Specifications
Manufacturer | MiniMax |
Condition | New |
E 10 | |
Min. - max. edgebanding thickness | 0.4 - 3 mm |
Min. and max. edgebanding height | 12 - 84 mm |
Min. - max. panel height | 8 - 80 mm |
Min. panel length/width | 210/50 mm |
Minimum internal radius (concave), 0.4 mm thickness | 25 mm |
Minimum external radius (convex), 0.4 mm thickness | 5 mm |
2 feed speeds | 4 - 8 m/min |
Single-phase motor | 4 Hp |
