SCM Group Nova SI 400EP - 3 Phase 10.5’ Programable Sliding Table Saw
SCM Group Nova SI 400EP - 3 Phase 10.5’ Programable Sliding Table Saw
$24,395 (USD)
orCall 239-770-4474
Description
Superior technology combined with an ease of use.
Advantages
Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.

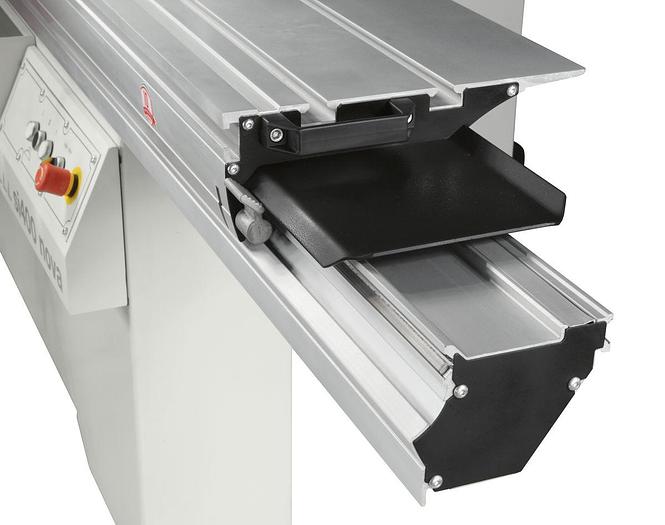

Sliding carriage: smooth sliding and a solid work surface. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an exclusive method of mechanical fixing.

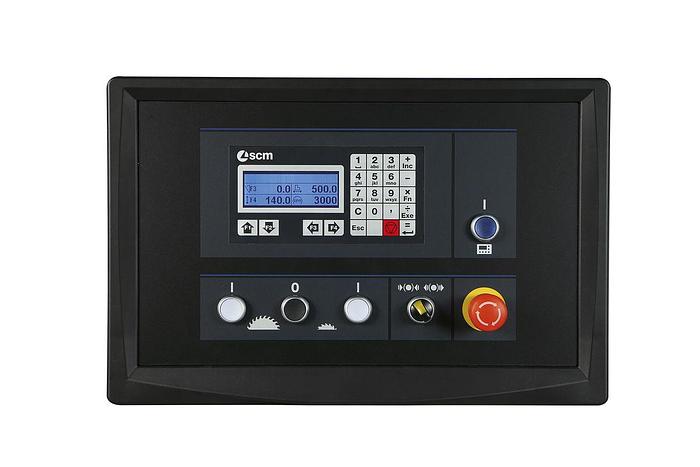

READY: the practical advantage for automatic control of the main positions. The programming of the work becomes simple and effective with the electronic control with a 4” LCD colour screen.
Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.
Specifications
Manufacturer | SCM |
Condition | New |
Nova si 400ep | |
Max. saw blade diameter with mounted scorer | 400 / 16 mm |
Maximum saw blade projection from table to 90°/45° | 140/97 5.5/3.8 mm / inches |
Cutting width on rip fence (Rip capacity) | 1270 / 50 mm / inches |
Max. squaring stroke of sliding table saw | 3200 / 126 mm / inches |
Three-phase motor | 15 Hp |
Indipendent scoring motor | 1 Hp |
Blade tilt | 0 - 45 degrees |
