Cantek MX350M Automatic Edgebander with Pre-Milling

Cantek MX350M Automatic Edgebander with Pre-Milling
$23,500 (USD)
Description

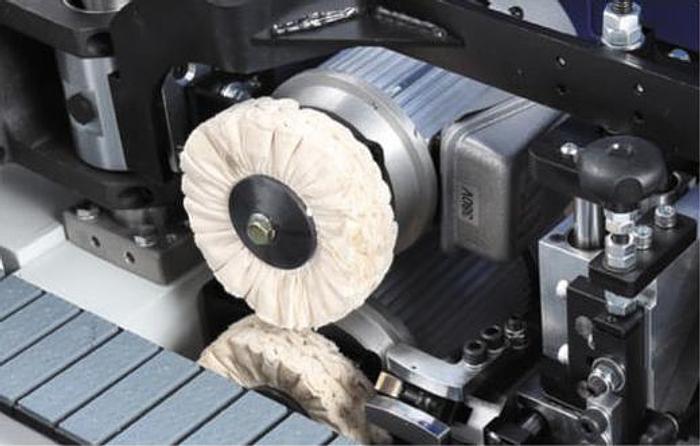

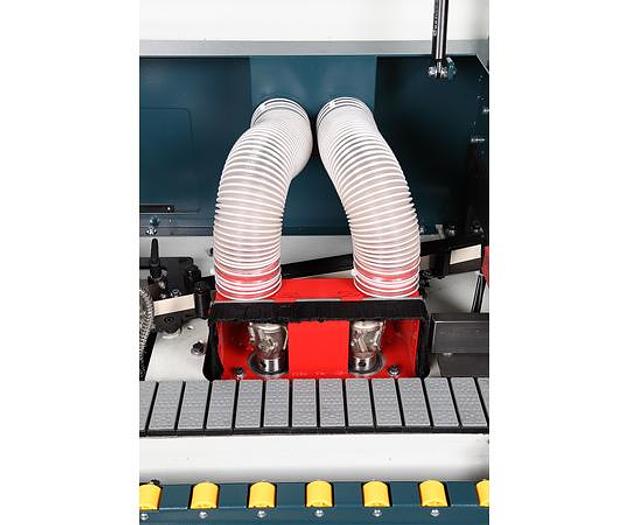

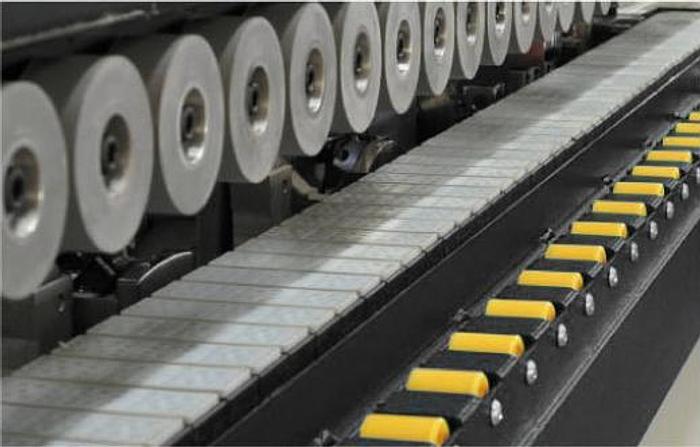

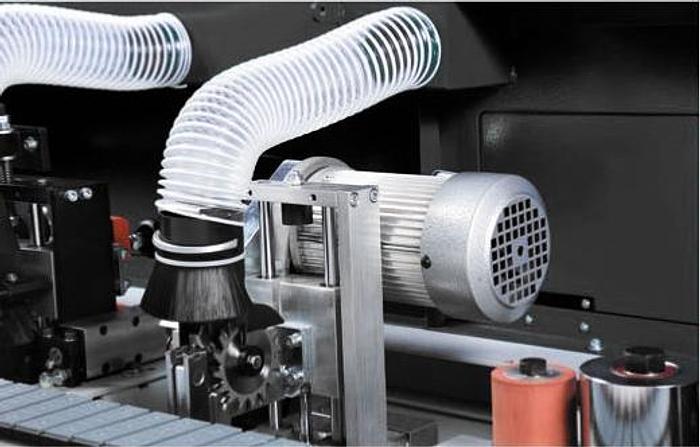

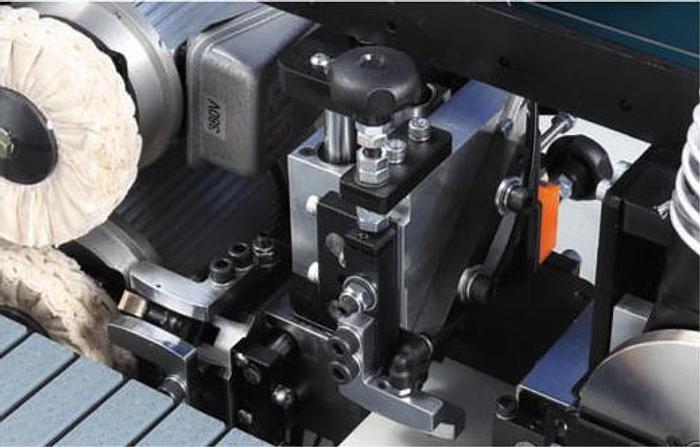

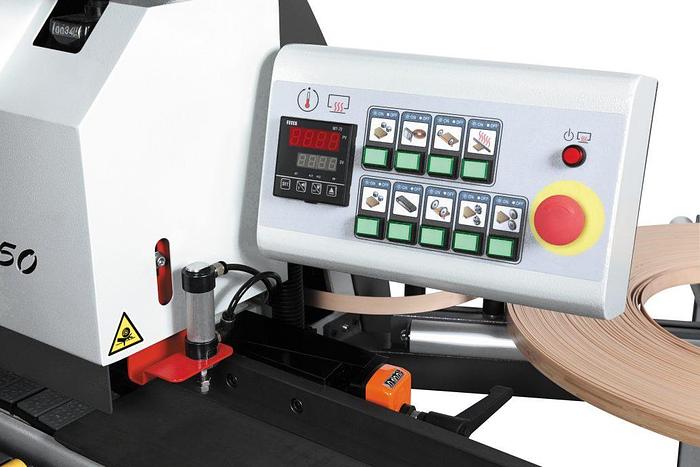

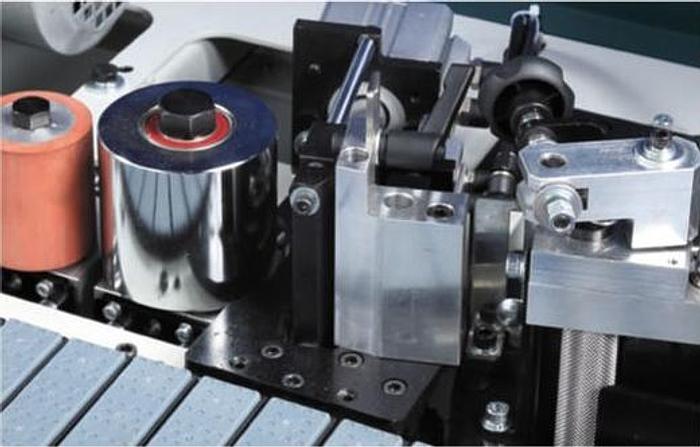

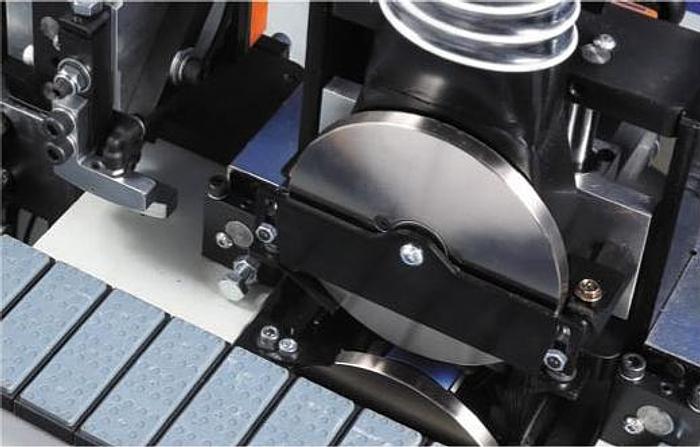

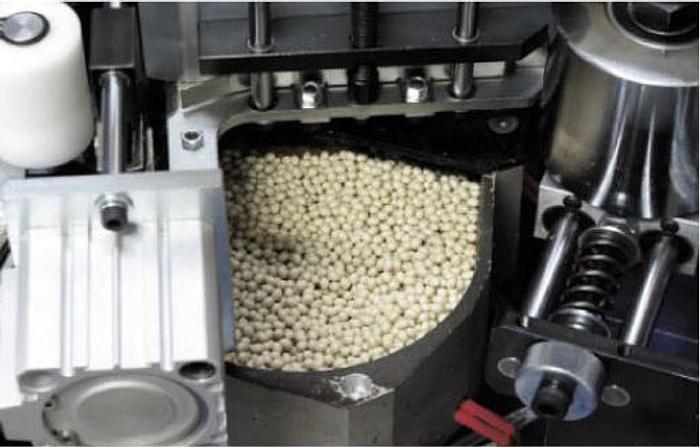

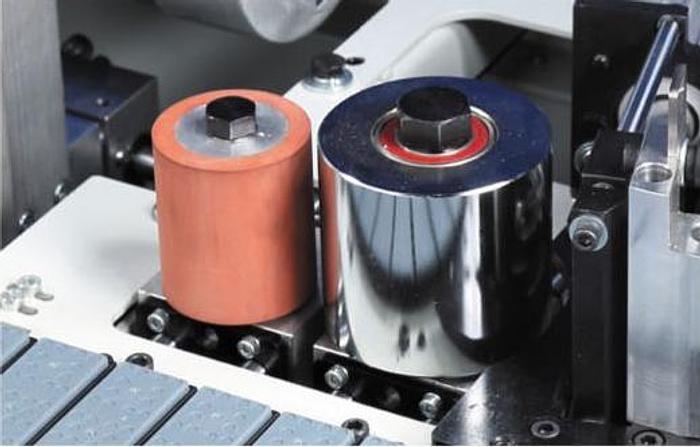

**Also available MX350 (230V 3PH) High Frequency ............. $31,700 The MX350M from Cantek is designed to be a compact & durable entry level edgebander with pre-milling function offered at an affordable price. This machine is equipped with pre-milling, end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm & wood strips up to 4mm. PLC control system with LED display and keypad Work-piece is fed by chain Automatic edge feeding with a thickness capacity of 0.4–3 mm Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears. 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber) Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality. 8800 RPM dual saw blade (80mm / 3.15”) end trimming unit 10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming Top & Bottom trimmers use copy tracing wheels for optimum finishing results without scratching the face of the workpiece Radius scraper with 2mm radius 2800 RPM top & bottom buffing units Heavy duty pressure beam with extendable work-piece support Heated infeed fence for pre-heating the panel for optimum glue penetration Mechanical digital readouts for convenient and quick adjustment to the working units & thickness Specs
Specifications
Manufacturer | Cantek |
Condition | New |
Feeding speed | 7 m/min. 23 FPM |
Panel thickness | 12~45 mm 0.472~1.77” |
Edge thickness | 0.4 ~ 3 mm 0.0158”~0.118” |
Minimum panel width | 90mm 3.54” |
Minimum panel length | 90mm 3.54” |
Working table height | 856mm 33.7” |
Extraction connection | 100mm 4” |
Premilling spindle speed | 9000 RPM |
Top & bottom trimmer RPM | 10500 RPM |
Max. machine dimensions (LxWXH) | 3200 x 1200 x 1200mm 126” x 47 ¼” x 47 ¼” |
Machine weight | 528 kgs 1162 lbs |
Shipping dimensions (LxWxH) | 2820 x 720 x 1320mm 111” x 28.4” x 52” |
Shipping weight | 660 kgs 1452 lbs |

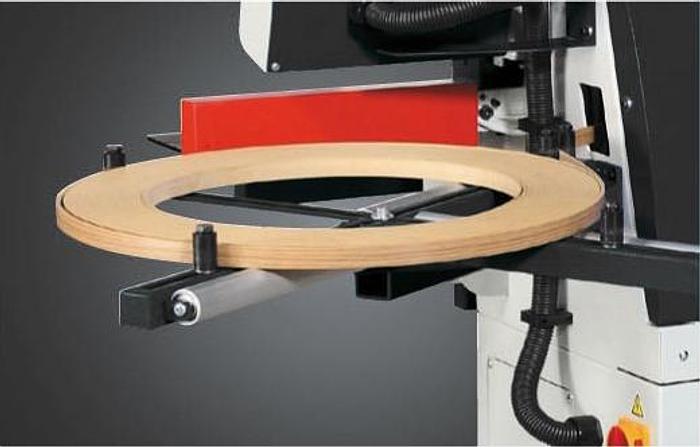

Edge coil support plate | Ø 800 mm (31.5”), for PVC/ABS |
