Cantek 24'' Widebelt Sander (60'' Belt) C251 (3PH)
Cantek 24'' Widebelt Sander (60'' Belt) C251 (3PH)
$11,300 (USD)
orCall 239-770-4474
Description
Also available in 1PH...... $13,400
A robust widebelt sander with minimal footprint.
The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Why Cantek C251 24″ Widebelt Sander?

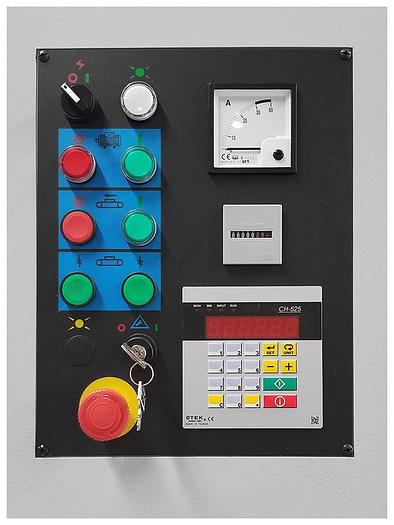

Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
Small footprint

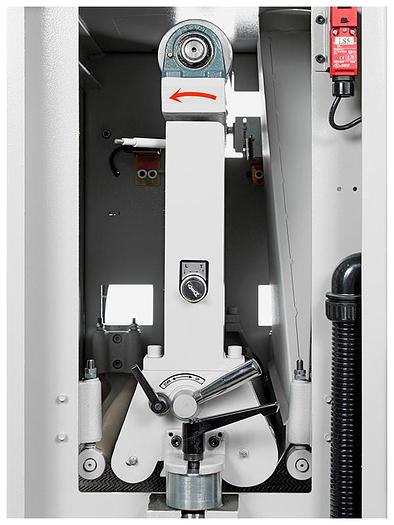

Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.
Key Advantages

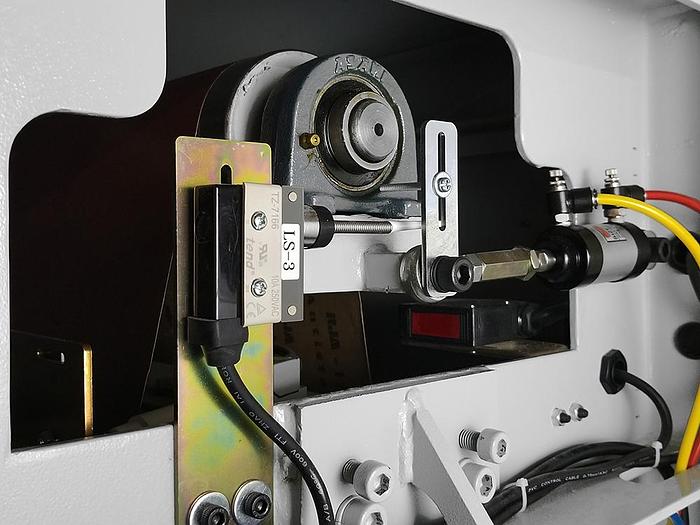

Electronic belt tracking for optimum belt life and sanding results
Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
Disc brake on main motor allows for faster belt changes

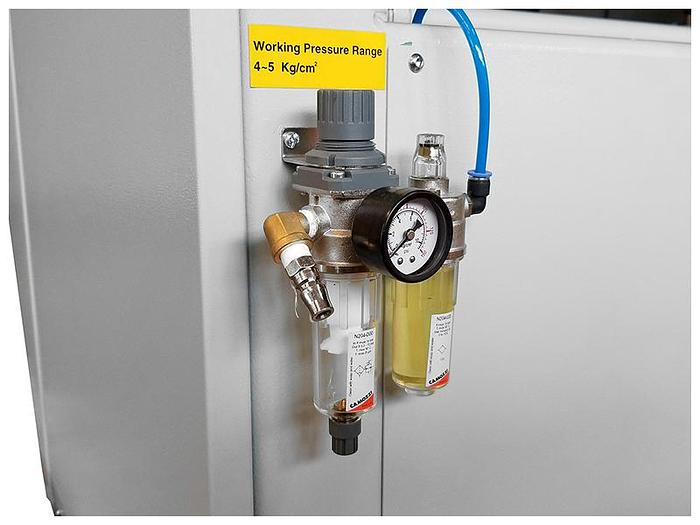

Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.

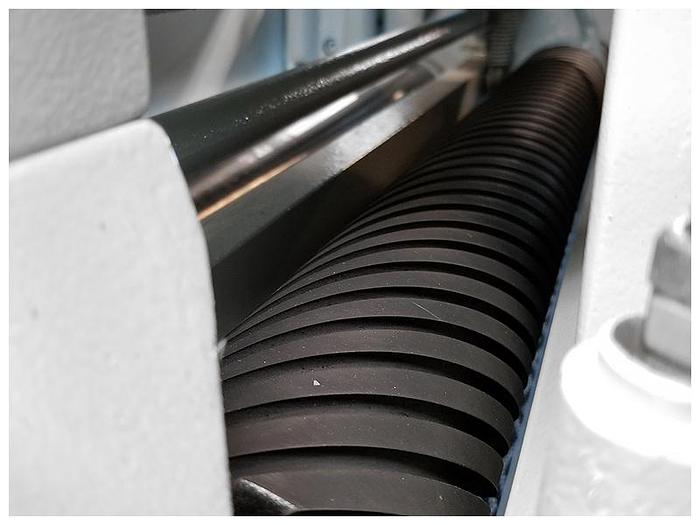

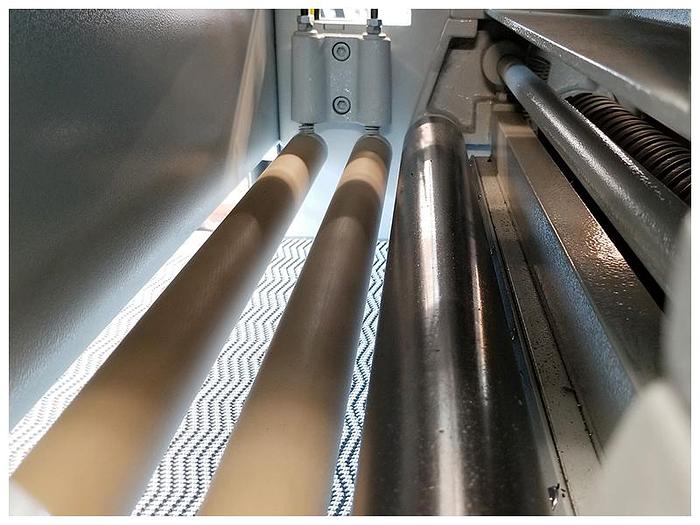

Double infeed and outfeed pressure rolls for superior part hold down
Material over-height limit switch
Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
Interlocks located on all access doors.
Specifications
Specifications
Manufacturer | Cantek |
Condition | New |
Abrasive belt size | 635 X 1524 mm 25” x 60” |
Main motor | 10 HP |
Feed motor | 1 HP |
Table rise/fall motor | ½ HP |
Maximum width stock | 609 mm 24” |
Minimum part length | 330 mm 13” |
Maximum thickness opening | 100 mm 4” |
Feed speed variable | 4 to 16 m/min 13 to 52 FPM |
Passline height | 838 – 965 mm 33” – 38” |
Infeed table | 292 mm 11-1/2” |
Dust outlet | 1 @ 101 mm 1 @ 4” |
Compressed air usage | 2 CFM @ 90 PSI 2 CFM @ 90 PSI |
Net weight | 660 kgs 1452 lbs |
Machine dimensions | 1346 x 1270 x 1600 mm 53” x 50” x 63” |
Shipping weight | 720 lbs 1584 lbs |
