Cantek 36'' Two Head Widebelt Sander (60'' Belt) C372 (3PH)
Cantek 36'' Two Head Widebelt Sander (60'' Belt) C372 (3PH)
$27,700 (USD)
orCall 239-770-4474
Description
CANTEK | C372 37″ TWO HEAD WIDEBELT SANDER
Accomplish your tasks without worrying about the performance of your sander.
The Cantek C372 37″ Two Head Widebelt Sander is perfect for any small to mid-sized shops looking to achieve outstanding results. Its robust construction is the best in its class and provides superior sanding results. The flexibility with quick change abrasive belts, allow for more applications in a shorter time frame, helping to assist and meet deadlines. The C372 has a relatively small footprint providing greater access for smaller shops to accomplish bigger results. Equipped with motorized thickness adjustment with digital input control with settings to 0.001” / 0.01mm for precise table setting without compromise!
Why Cantek C372 37″ Two Head Widebelt Sander?
Dual sanding heads increases efficiency by reducing the number of passes

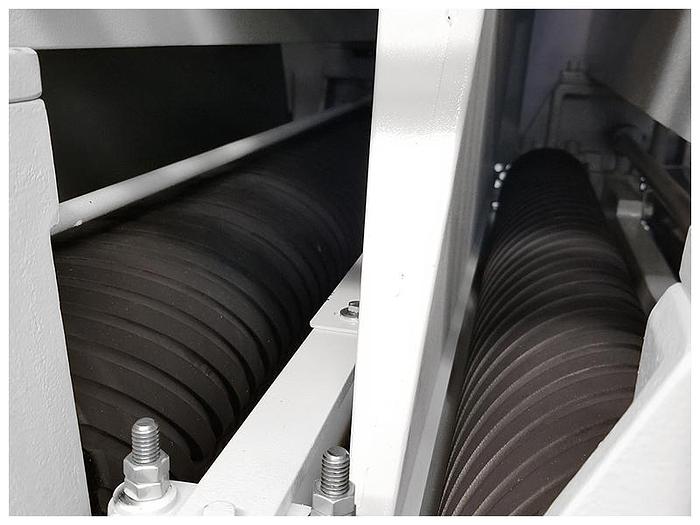

Rubber contact drum for calibration sanding

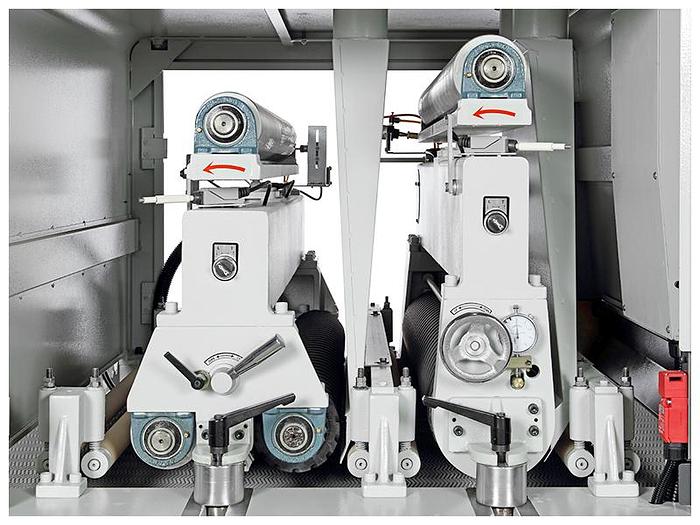

Combination sanding unit with 5” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
Adjustable platen produces superior sanding results with finer sandpaper grits
Solid cast iron sanding heads and mounting base for superior vibration damping resulting in an optimum sanding result
Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
Small footprint
Key Advantages
Two sanding heads
Electronic belt tracking for optimum belt life and sanding results
Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

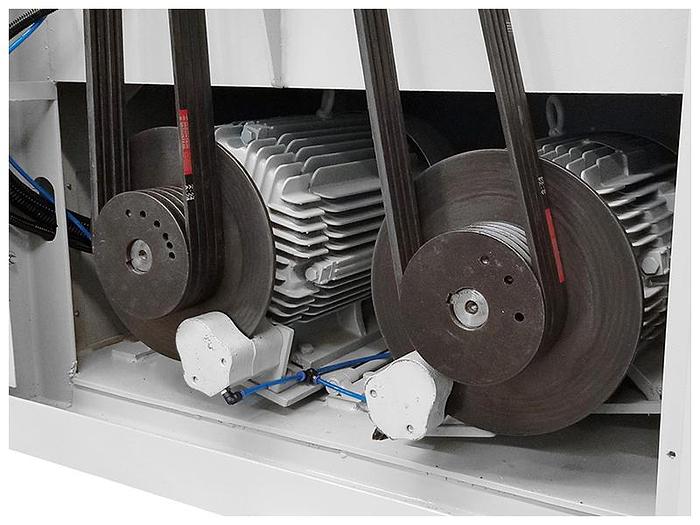

Disc brake on main motor allows for faster belt changes
Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
Double infeed and outfeed pressure rolls for superior part hold down
Four table raising jack screws

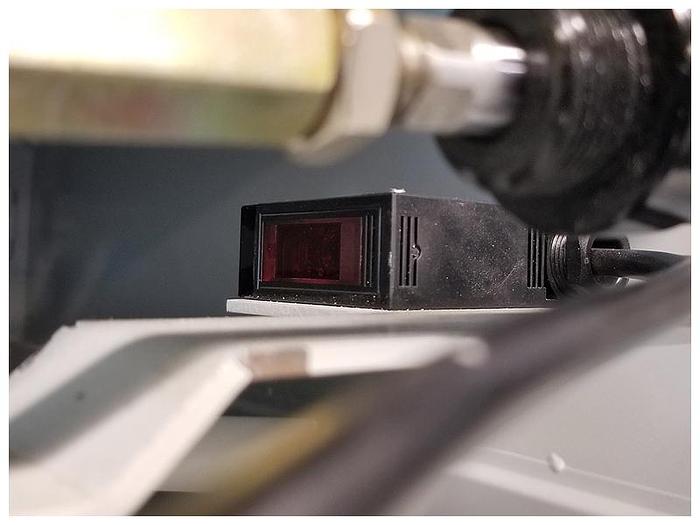

Material over-height limit switch
Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
Interlocks located on all access doors.
Specifications
Specifications
Manufacturer | Cantek |
Condition | New |
Inch | Metric |
Abrasive belt size | 940 X 1524 mm 37” X 60” |
Main motor (First Head) | 20 HP 20 HP |
Main motor (Second Head) | 15 HP 15 HP |

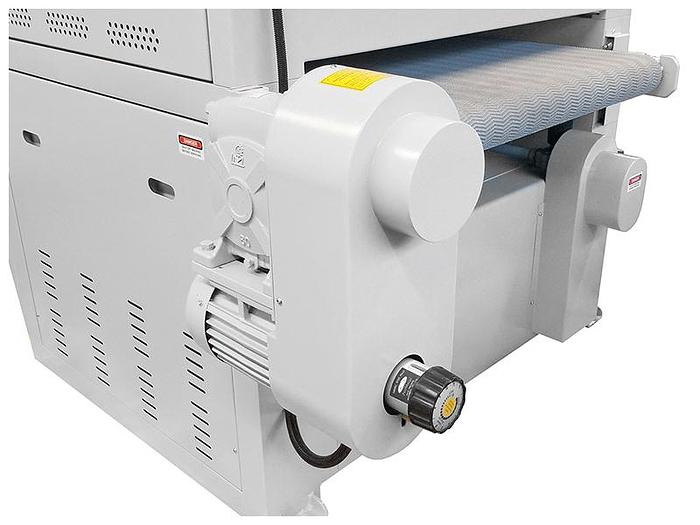

Feed motor | 2 HP 2HP |
Table rise/fall motor | ½ HP ½ HP |
Maximum width stock | 914 mm 36” |
Minimum part length | 330 mm 13” |
Maximum thickness opening | 127 mm 5” |
Feed speed variable | 13 to 52 FPM 13 to 52 FPM |
Passline height | 838 – 965 mm 33”- 38” |
Infeed table | 279- 12.7 mm 11-1/2” |
Dust outlet | 4 @ 100 mm 4 @ 4” |
Compressed air usage | 2 CFM @ 90 PSI 2 CFM @ 90 PSI |
New weight | 3300 lbs 3300 lbs |
Machine dimensions | 1879 X 1625 X 1778 mm 74” X 64” X 70” |
Shipping weight | 1796 kgs 3960 lbs |
Shipping dimensions | 1981 X 1701 X 1930 mm 78” X 67” X 76” |
First head | Rubber contact drum with 7” diameter drum |
Second head | Combination head with 5” diameter drum and 2” wide platen |
