Cantek 44'' Widebelt Sander (60'' Belt) C431 (3 PH)

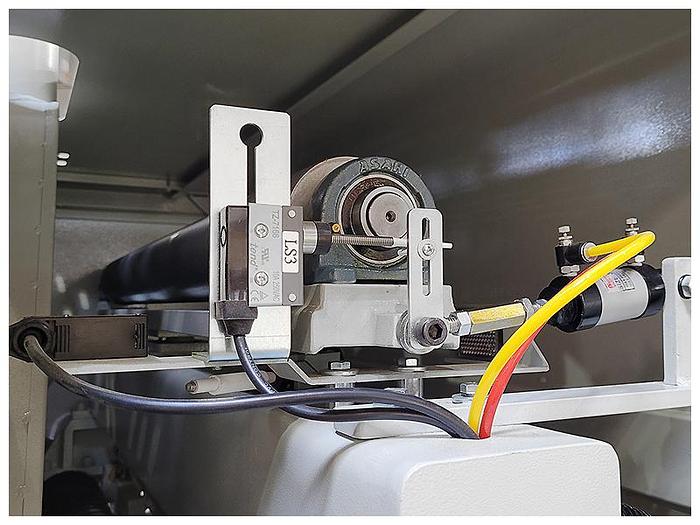

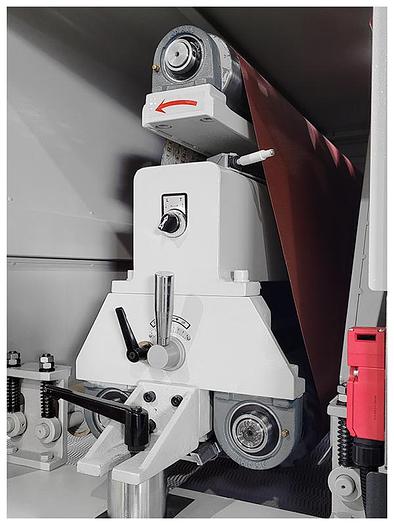

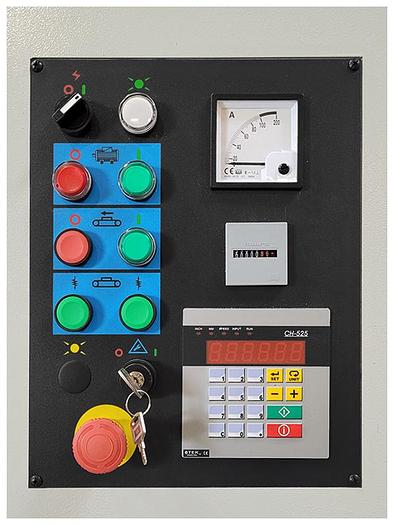

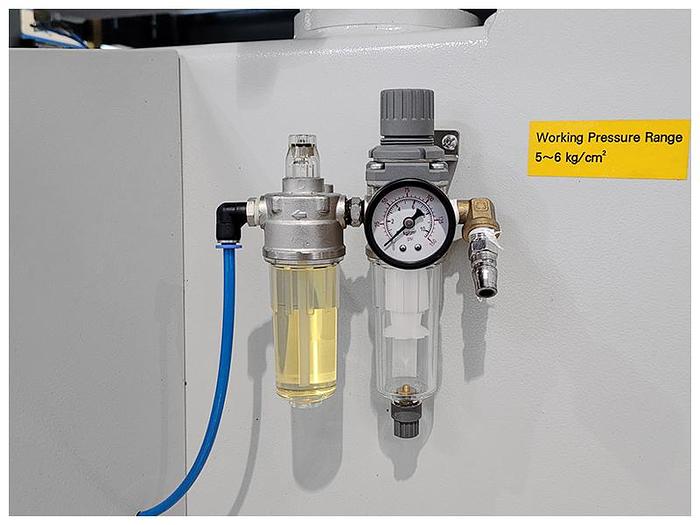

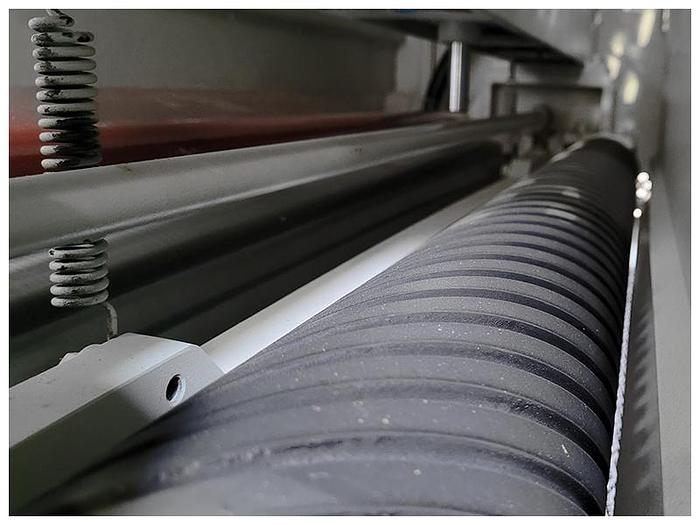

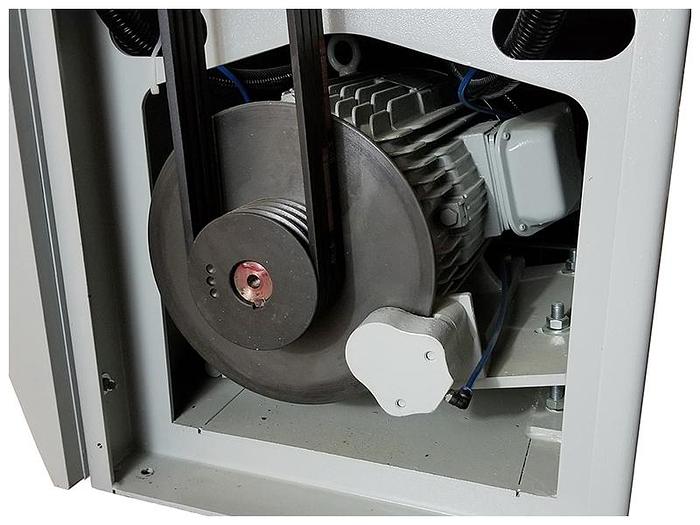

** Also available in 1PH- C431 Add $3,300 ** Also available Cantek 43'' Two Head Widebelt Sander (60'' Belt) C432 $35,200.00 CANTEK | C431 43″ WIDEBELT SANDER Dependable, consistent sanding results with a robust design that is built to last. The Cantek C431 43″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment. Why Cantek C431 43″ Widebelt Sander? Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position. Small footprint Combination sanding unit with 5” rubber contact drum and 2.6” wide adjustable sanding platen for a wide range of sanding applications. Key Advantages Electronic belt tracking for optimum belt life and sanding results Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit. Disc brake on main motor allows for faster belt changes Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes. Double infeed and outfeed pressure rolls for superior part hold down Four table raising jack screws Material over-height limit switch Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine Interlocks located on all access doors. Specifications Inch Metric Abrasive belt size 44” x 60” 1117 x 1524 mm Main motor 20 HP Feed motor 2HP Table rise/fall motor ½ HP Maximum width stock 43” 1092 mm Minimum part length 16” 400 mm Maximum thickness opening 5.9” 150 mm 13 to 52 FPM 4 to 16 m/min Passline height 33”- 38” 838 – 965 mm Infeed table 11 ½” 292 mm Dust outlet 2 @ 4” 2 @ 100 mm Compressed air usage 2 CFM @ 90 PSI 2 CFM @ 90 PSI New weight 3344 lbs 1520 kgs Machine dimensions 70” x 72” x 71 ¼” 1780 x 1820 x 1810mm Shipping weight 3652 lbs 1660 kgs Shipping dimensions 73” x 77” x 82” 1854 x 1950 x 2080mm
