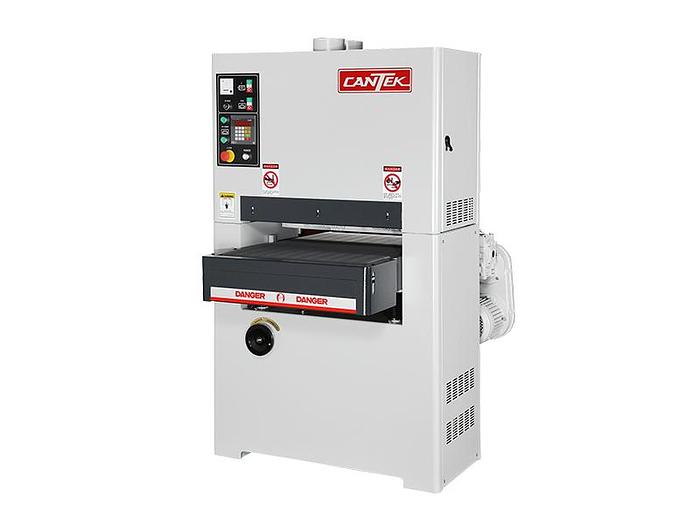

Cantek 24″ Widebelt Sander (60" Belt) S251 (1PH)
Cantek 24″ Widebelt Sander (60" Belt) S251 (1PH)
$13,200 (USD)
orCall 239-770-4474
Description

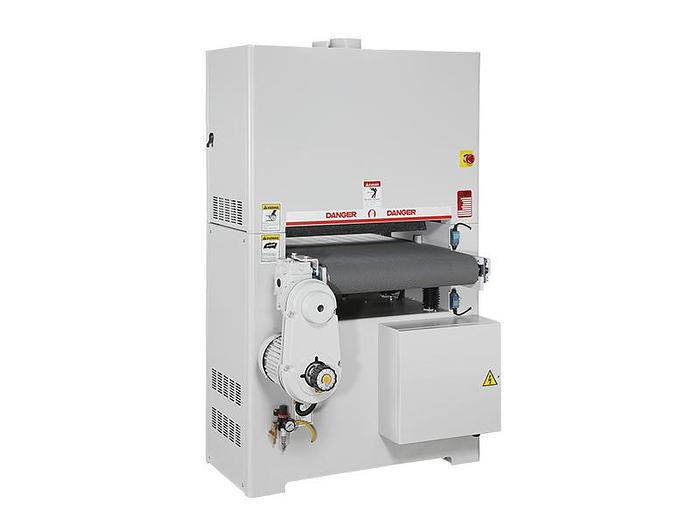

CANTEK | S251 24″ WIDEBELT SANDER
A robust widebelt sander with minimal footprint.
The Cantek S251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Why Cantek S251 24″ Widebelt Sander?

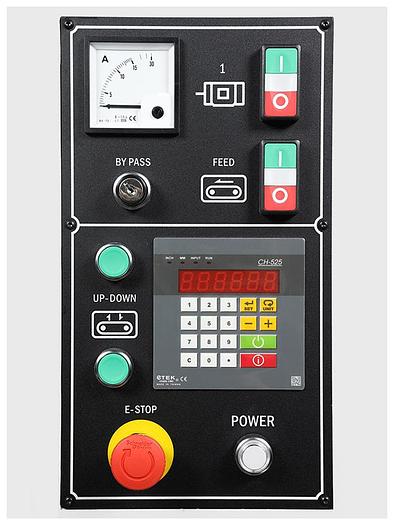

Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.

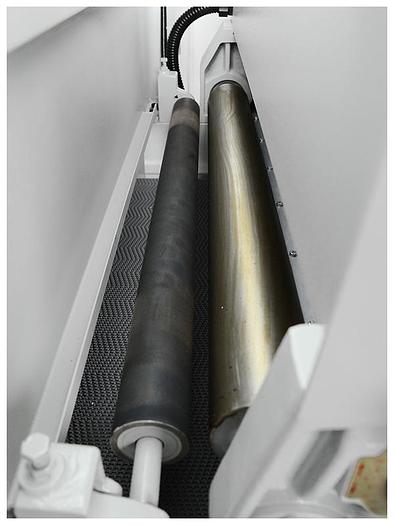

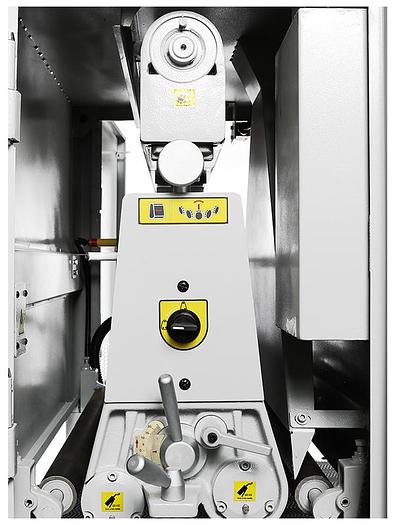

Combination sanding unit with 3-3/8″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
Small footprint.
Key Advantages

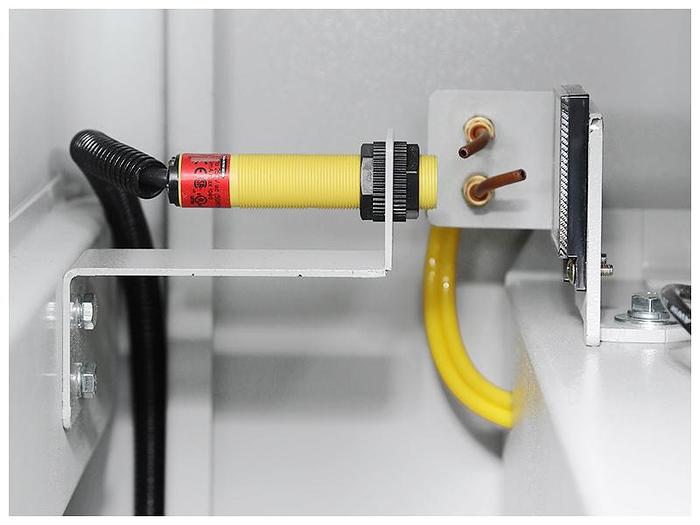

Electronic belt tracking for optimum belt life and sanding results.
Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.

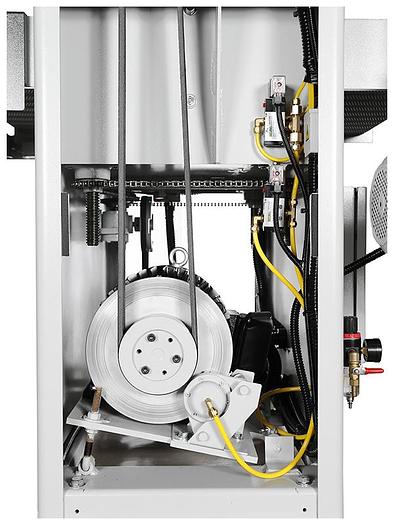

Disc brake on the main motor allows for faster belt changes.

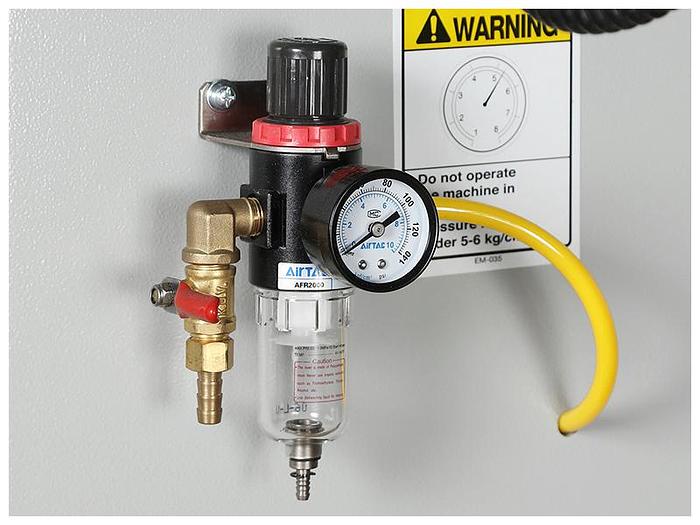

Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
Material over-height limit switch.
Interlocks are located on all access doors.
Specifications
Specifications
Manufacturer | Cantek |
Condition | New |
DESCRIPTION | METRIC INCH |
Abrasive belt size | 635 X 1524 mm 25” x 60” |
Main motor | 10 HP |
Feed motor | 1HP |
Table rise/fall motor | 0.25 HP |
Working width | 609 mm 25″ |
Minimum part length | 320 mm 13″ |
Maximum thickness opening | 150 mm 5″ |

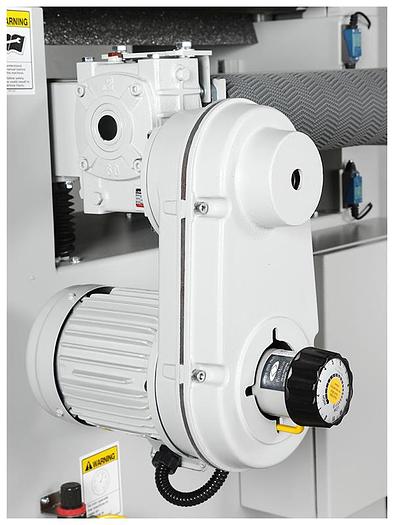

Feed speed variable | 4 to 15 m/min 15 to 49 FPM |
Pass line height | 950 mm 37″ |
Dust outlet | 2 @ 101 mm 2 @ 4” |
Compressed air pressure | 4 Kg/cm2 PSI 60 |
Compressed air volume | 0.2M3/Min 7 CFM |
Dust collection requirements | 1400 M3/HR 824 CFM |
Net weight | 610 kgs 1344 lbs |
Machine dimensions | 1270 x 1150 x 1940 mm 50” x 45” x 76” |
Shipping weight | 710 kgs 1565 lbs |
Shipping dimensions | 1330 x 1150 x 1940 mm 52” x 45” x 76” |
Electrical requirements | 230/3/60 = 34 amps |
