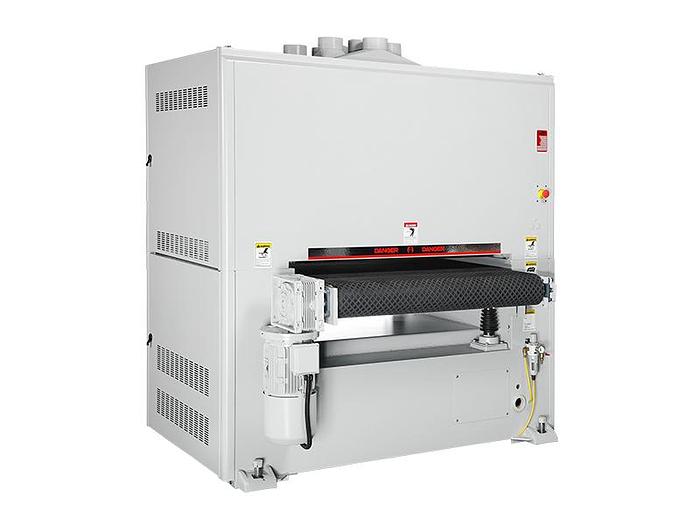

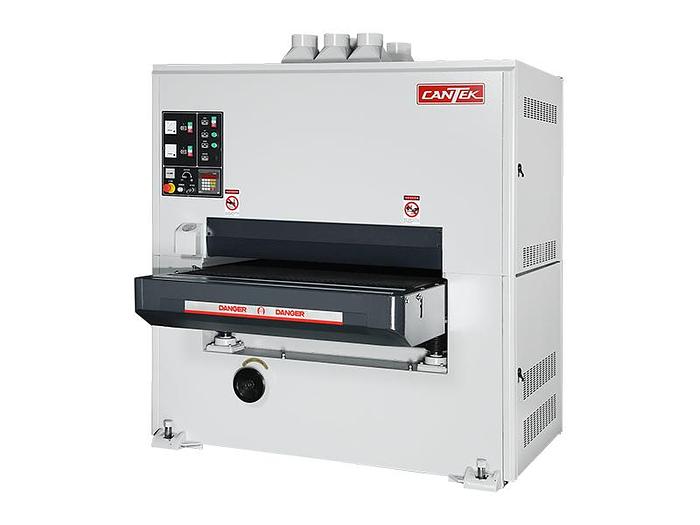

Cantek 43″ Two Head Widebelt Sander (75'' Belt) SR43DA (Rubber Roller-3PH

Cantek 43″ Two Head Widebelt Sander (75'' Belt) SR43DA (Rubber Roller-3PH

$49,600 (USD)

orCall 239-770-4474

Description

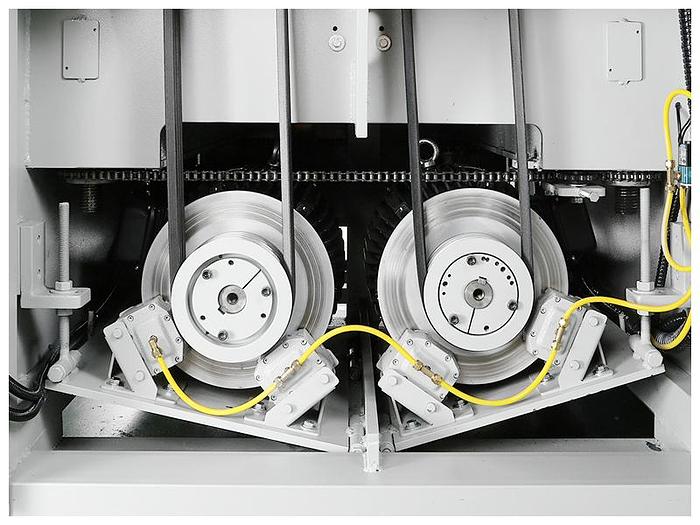

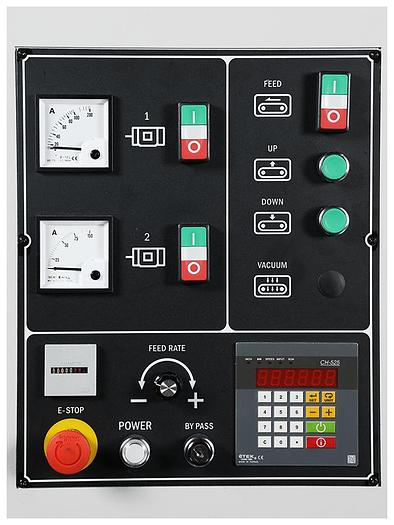

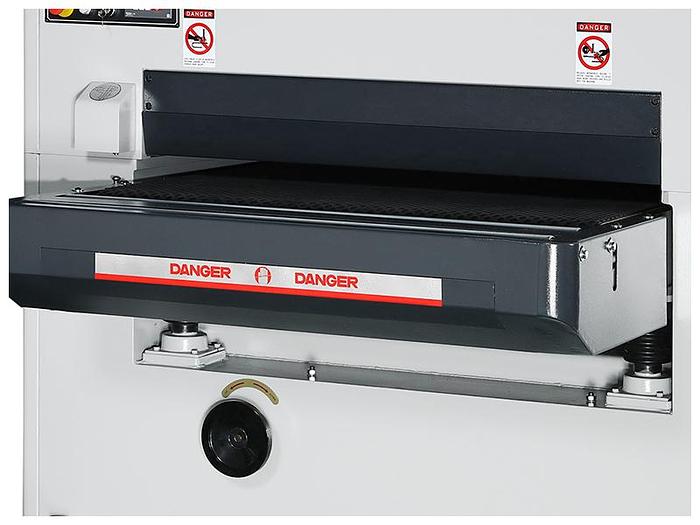

CANTEK | SR43DA 43″ WIDEBELT SANDER A sander that is not only capable but thrives in multiple-shift environments. The Cantek SR43DA 43″ Widebelt Sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability. The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput. The first sanding head is a rubber contact drum with calibration capacities and durability. The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits.  The 75″ long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results. Why Cantek SR43DA 43″ Widebelt Sander? Heavy-duty construction with upgraded horsepower for production use. Dual sanding heads for increased productivity. The first sanding head is hard rubber for calibration results, while the second head is a combination unit with adjustable platen for calibration and finish sanding capabilities. Accurate digital thickness control to 0.001” (0.026mm) resolution. Micro sanding drum height adjustments with dial indicators. Caliper thickness setting unit for fast setup to your workpiece. Key Advantages Heavy-duty welded steel frame with cast iron sanding head assemblies for vibration-free sanding. Dual rubber-covered pressure rollers on infeed and outfeed for consistent material hold down. High-quality rubber conveyor with automatic pneumatic belt tracking. Extended infeed bed with two table rollers. The table is adjusted using four heavy-duty jackscrews driven by a robust chain system. Automatic caliper thickness setting. Electronic sanding belt tracking. Pneumatic belt tensioning & quick release outboard support for fast belt changes. Automatic disc brakes for the sanding heads allow for fast belt changeover. Safety switches on all access doors. High-quality Schneider electrical controls and Comozzi pneumatic valves. Specifications

Specifications

ManufacturerCantek
ConditionNew
Abrasive belt size939 X 1905 mm 43” x 75”
1st Main motor 20 HP
2nd Main motor 15 HP

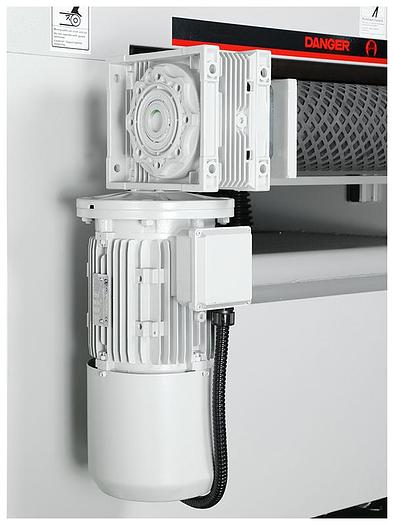

Feed motor 3HP
Table rise/fall motor 1/2 HP
Working width920 mm 42″
Minimum part length430 mm 16.9″
Maximum thickness opening120 mm 4.7″
Feed speed variable4 to 18 m/min 13 to 59 FPM
Pass line height950 mm 37″
Dust outlet8 @ 127 mm 8 @ 5”
Compressed air pressure6 Kg/cm2 PSI 85
Compressed air volume0.35M3/Min 12 CFM
Dust collection requirements9100 M3/HR 5356 CFM
Net weight3000 kgs 6613 lbs
Machine dimensions2120 x 1820 x 2025 mm 83” X 71” X 79”
Shipping weight3300 kgs 7275 lbs
Shipping dimensions2230 x 2030 x 2090 mm 87” X 79” X 82”

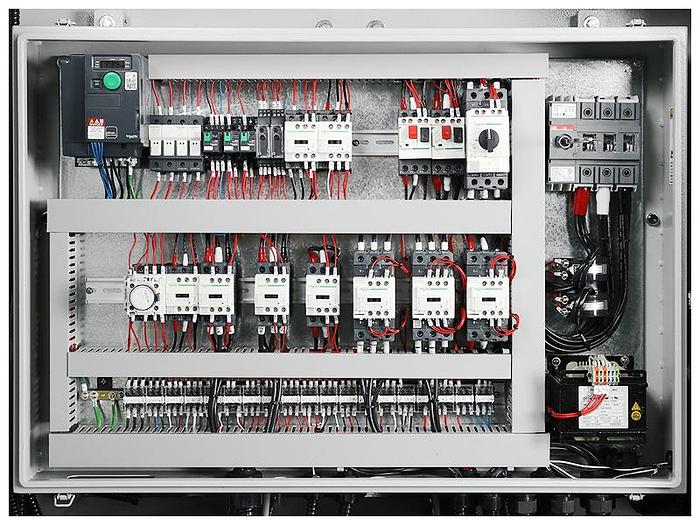

Electrical requirements 230/3/60 = 102 amps
