Cantek 36″ Two Head Widebelt Sander (60" Belt) S372 (3PH)
Cantek 36″ Two Head Widebelt Sander (60" Belt) S372 (3PH)
$23,500 (USD)
orCall 239-770-4474
Description
CANTEK | S371 36″ WIDEBELT SANDER
Dependable, consistent sanding results with a robust design that is built to last.

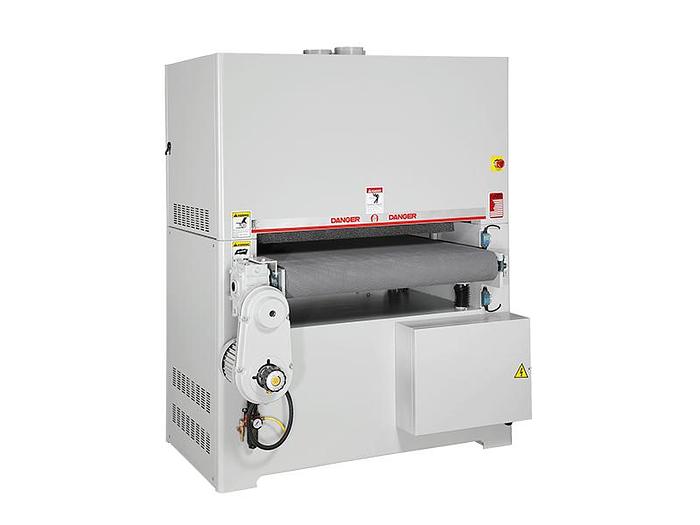

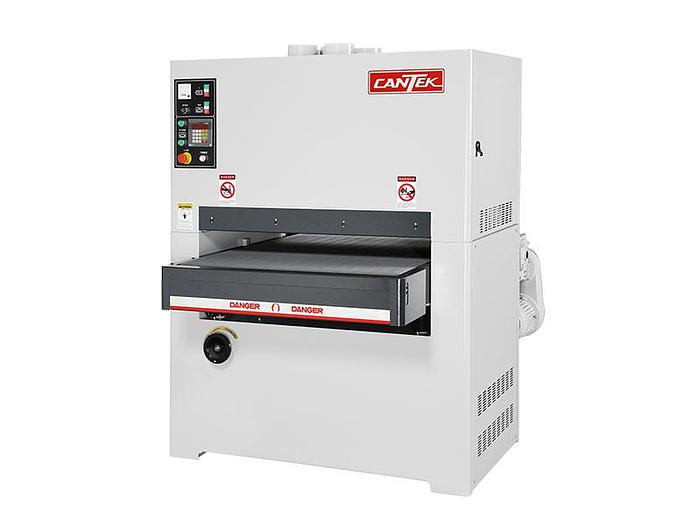

The Cantek S371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Why Cantek S371 36″ Widebelt Sander?

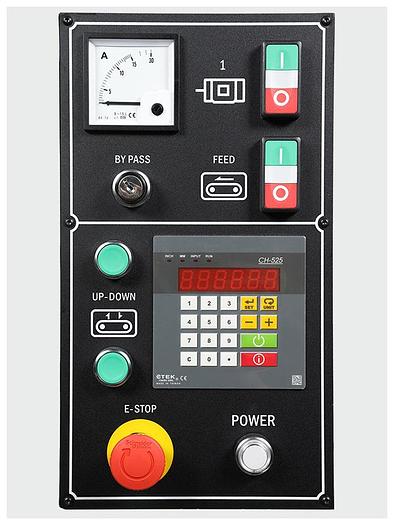

Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.

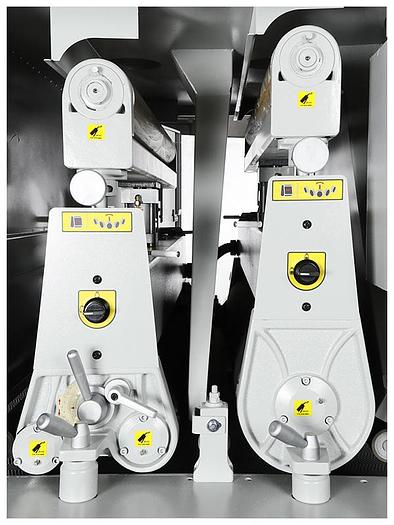

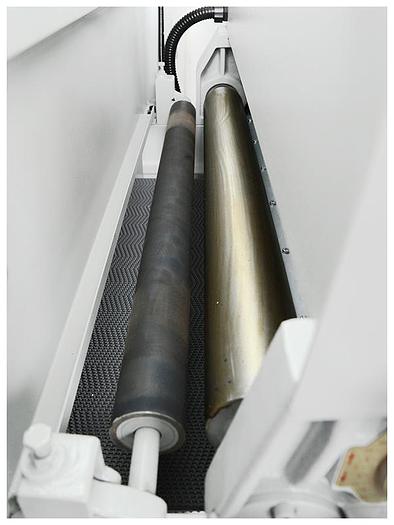

Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
Small footprint.
Key Advantages

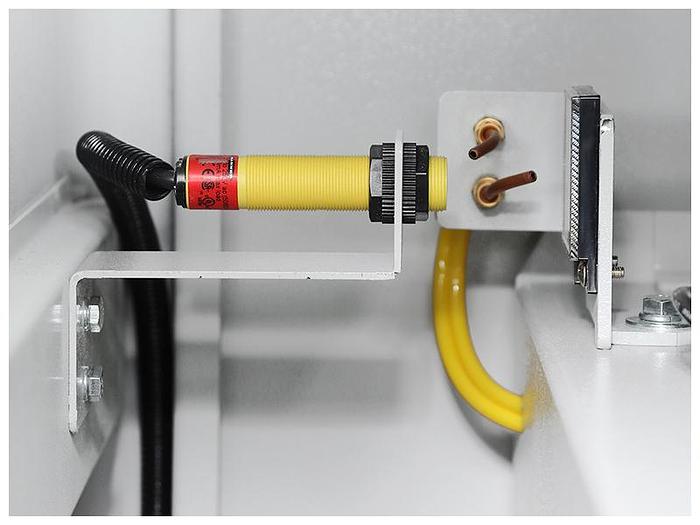

Electronic belt tracking for optimum belt life and sanding results.
Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
Disc brake on the main motor allows for faster belt changes.
Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
Table raising jackscrews.
Material over-height limit switch.
Hour meter records the machine’s actual running time, which can be used to provide timely maintenance for the machine.
Interlocks are located on all access doors.
Specifications
Specifications
Manufacturer | Cantek |
Condition | New |
INCH | METRIC |
Abrasive belt size | 939 X 1524 mm 37” x 60” |

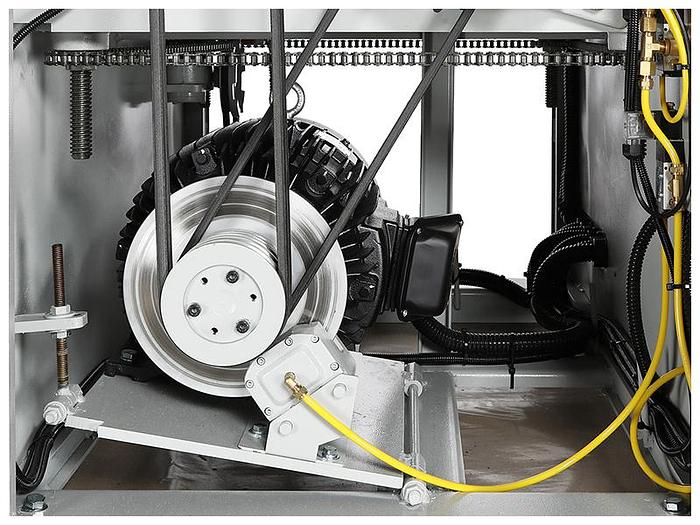

Main motor | 15 HP |

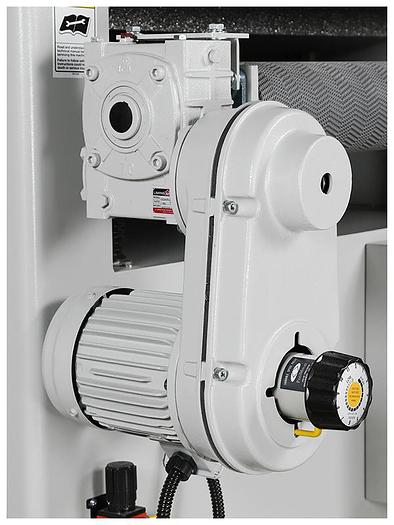

Feed motor | 1HP |
Table rise/fall motor | 0.25 HP |
Working width | 930 mm 37″ |
Minimum part length | 320 mm 12.5″ |
Maximum thickness opening | 150 mm 5″ |
Feed speed variable | 4 to 15 m/min 15 to 49 FPM |
Pass line height | 950 mm 37″ |
Dust outlet | 3 @ 101 mm 3 @ 4” |
Compressed air pressure | 4 Kg/cm2 PSI 60 |
Compressed air volume | 0.2M3/Min 7 CFM |
Dust collection requirements | 2100 M3/HR 1236 CFM |
Net weight | 730 kgs 1609 lbs |
Machine dimensions | 1270 x 1335 x 1680 mm 50” X 52” X 66” |
Shipping weight | 830 kgs 1829lbs |
Shipping dimensions | 1330 x 1460 x 1940 mm 52” X 57” X 76” |

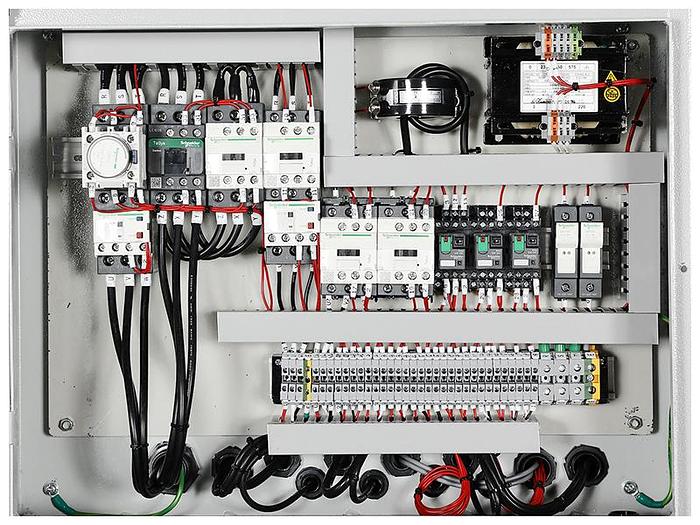

Electrical requirements | 230/3/60 = 47 amps |
