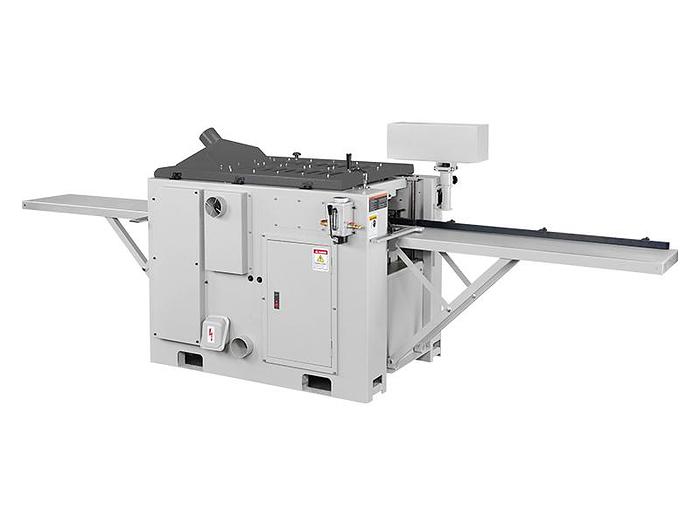

Cantek 4-Sided Planer Moulder M412 (3PH)

Cantek 4-Sided Planer Moulder M412 (3PH)

$20,900 (USD)

orCall 239-770-4474

Description

CANTEK | M412 4-SIDED PLANER MOULDER Economical 4-Sided Planer Moulder Solution for the Small Shop. The Cantek M412 4-Sided Planer Moulder is an economical and compact machine designed for professional woodworkers looking to produce a wide range of mouldings or S4S. With individual motors to each spindle you can comfortably produce a wide range of products including flooring, crown moulding, paneling, door & furniture components, S4S, and more. The electronic digital thickness control and mechanical readouts allow for fast and accurate adjustment of the spindles to produce the desired result. Equipped as standard with both infeed and outfeed tables the material is well supported during cutting operations. Its small footprint makes it the ideal solution for the small custom shop who wants to produce their own mouldings. Why Cantek M412 4-Sided Planer Moulder? Designated individual motors to each spindle Variable feed speed from 11-52 FPM for optimum finish results Digital motorized thickness controller (inch / metric) for operator convenience Mechanical digital readouts for side head adjustment 3 depth of cut control plates for bottom cutterhead Includes infeed outfeed table for supporting material during machining Upgraded adjustable infeed fence for convenient depth adjustment See through top guard so operator can view cutterheads Key Advantages Centralized control panel to turn on and off all working units and adjust thickness opening Top horizontal spindle is equipped with two pattern knife for planing and moulding operations Left vertical spindle can be adjusted in and out manually with a mechanical digital readout for accurate positioning Specifications Planing 2-Side Planing/Moulding 4-Side Planing/Moulding Top Horizontal Spindle Bottom Horizontal Spindle: Right & Left Vertical Spindles Table Dust Hood Outlet 4 – 100mm (3.95″) Minimum width 0-306mm Minimum thickness 12-230mm Feed System Machine Dimensions (LxWxH) 1485 x 1265 x 1216 mm Packing Dimensions (LxWxH) 1350 x 1140 x 1130 mm New Weight 635kgs (1400bs) Gross Weight 730kgs (1610lbs) Electrics 230/3/60 – 48 Full Load Amps Additional Options -Top Horizontal Helical Cutterhead $4,160 -Bottom Horizontal Helical Cutterhead $3,035 -Side Vertical Helical Cutterhead $765

Specifications

ManufacturerCantek
ConditionNew
Four cutting modesSingle / double / three / four-sided planing and moulding
Width13-5/8” (346mm)
Depth7/16” – 4” (12 – 100mm)
Max. planing depth1/4” (6mm)
Max. moulding depth3/16″ (5mm)
Speed7000 RPM
Cutterhead diameter2-7/8” (72mm)
Motor1HP (0.745Kw)
Max. cutting height4” (100mm)
Max. cutting depth13/16” (21mm)
Spindle diameter1-1/4″ (31.75mm)
Max. cutterhead diameter3-1/2” (90mm)
Area1125 x 685 mm
Elevation230mm
Power table (raise)120w
Speed (variable)11-52 ft/min.
