Cantek 7.5 HP Spindle Shaper w/ Sliding Table SS512CSB

Cantek 7.5 HP Spindle Shaper w/ Sliding Table SS512CSB

$10,200 (USD)

orCall 239-770-4474

Description

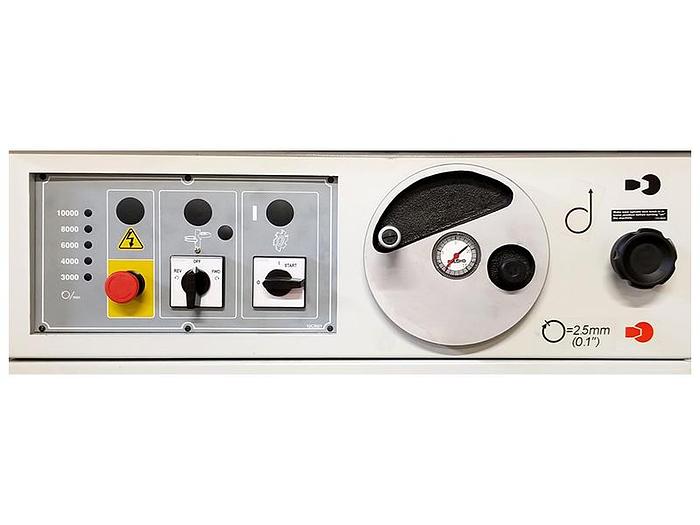

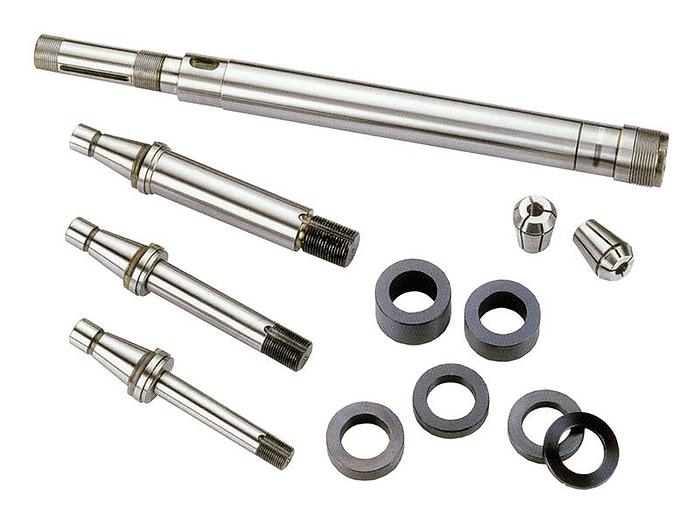

CANTEK | SS512CSB SLIDING TABLE SHAPER Production 7.5 HP sliding table shaper. The Cantek SS512CSB sliding table shaper is a ruggedly built sliding table shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The sliding table is cast iron and runs on bearings for smooth and vibration free movement. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality. Why Cantek SS512CSB Shaper? Cast iron sliding table runs on bearings for vibration free and smooth movement 1 ¼” interchangeable spindle is standard (other sizes available) Large cast-iron table is ground and polished for maximum stability and durability Powerful 7.5 HP motor for even the most demanding profiling work Five spindle speeds can be easily adjusted to suit your tool diameter Electronic spindle brake for added safety and facilitates with fast changeover Precision fence assembly with micro infeed and outfeed fence adjustment Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability Key Advantages Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig Precision ground and electronically balanced spindle V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM) Electric spindle brake for added safety Spindle lock – with limit switch safety, machine will not start with lock engaged Micro spindle height adjustment with dial indicator for precise height adjustment 1 ¼” Interchangeable cutter spindle is standard Forward/reverse spindle rotation Adjustable “finger” type fence Independent micro-fence adjustment on both sides Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base Includes the following standard equipment: 1 ¼” spindle (1) 5” dust chute on guard & (1) 4” dust chute in the table Safety guard Mitre tenoning jig Specifications

Specifications

ManufacturerCantek
ConditionNew
Table size 31 ½” x 39.4″

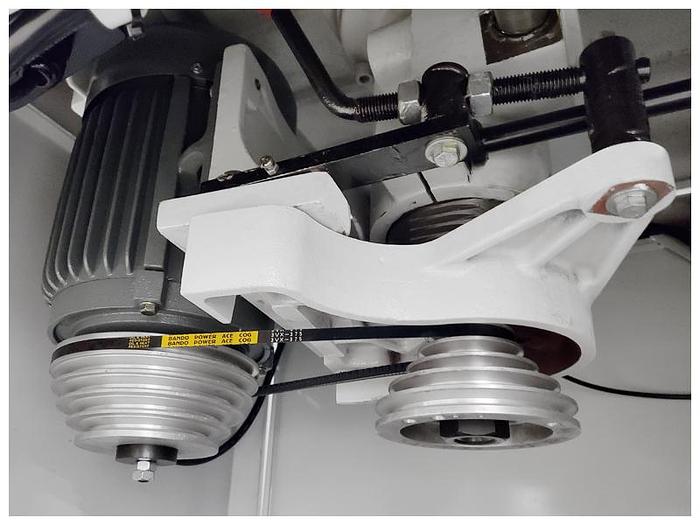

Spindle speeds (5) 3000/4000/6000/8000/10000 RPM
Spindle taper 5 MT

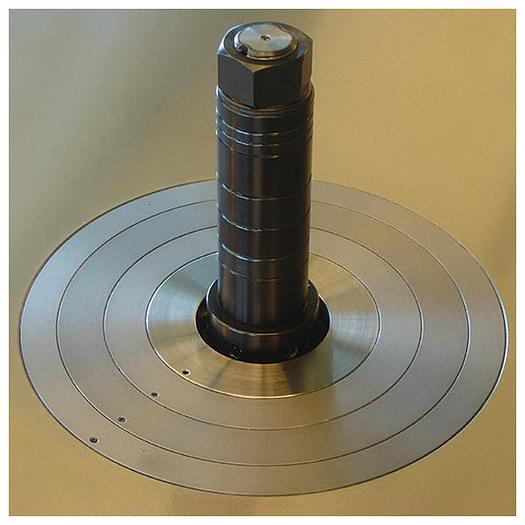

Spindle diameter 1 ¼”
Motor 7.5 HP
Sliding table dimensions 39.4” x 10 ¼”
Sliding table stroke 37”
Largest diameter of cutter
Above table 8 ¼”
Below table 13 ¼”

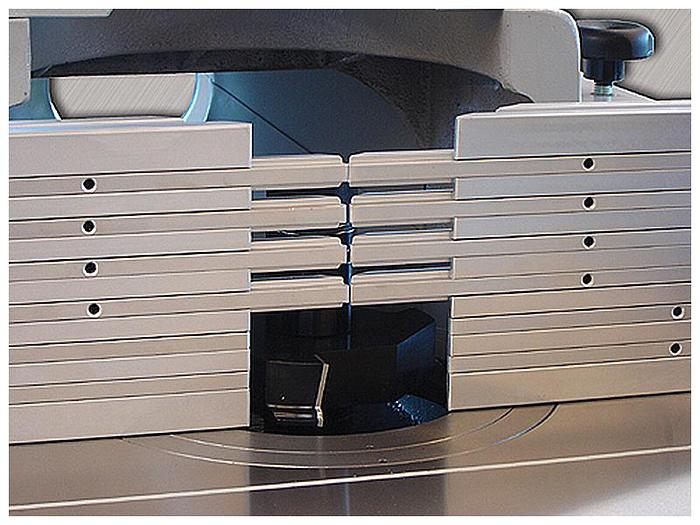

Fence size 6″ x 43″
Vertical spindle stroke 7”
Useable length of spindle 5 ½” long

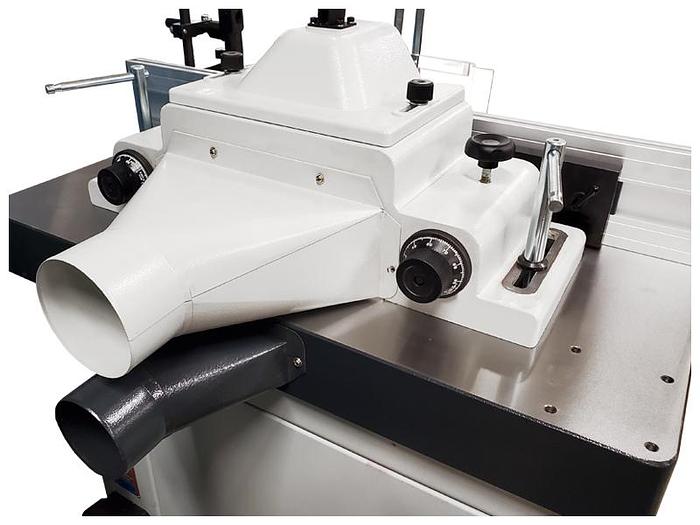

Dust port (1) 5″ on guard, (1) 4” in table
Total HP 7.5 HP
Net weight 1034 lbs.
Machine dimensions 48.4″ x 39.4″ x 52 ¾”
Shipping weight 1166 lbs.
Shipping dimensions 45 ¼” x 37″ x 41″
