SCM 53'' Sander- Steel Drum, Combi Head w/ Elastic Pad, TS #DMC sd 70 RC

SCM 53'' Sander- Steel Drum, Combi Head w/ Elastic Pad, TS #DMC sd 70 RC

$81,640 (USD)

orCall 239-770-4474

Description

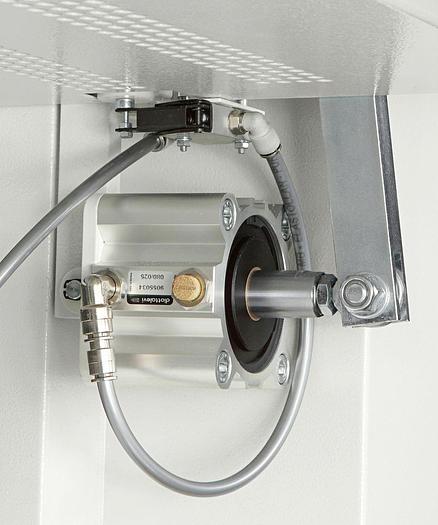

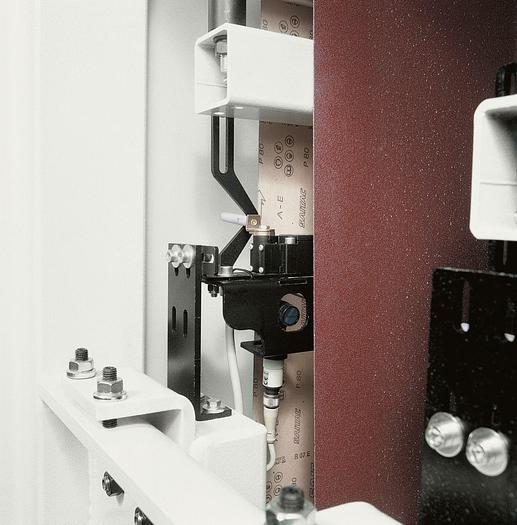

SCM 53'' Sander- Steel Drum, Combi Head w/ Elastic Pad, eye-S #DMC sd 70 RCS 135 VN Its high level of versatility makes dmc sd 70 perfect for different types of machining.  In the furniture sector (with veneered and painted panels) it excels in the provision of optimum level finishing thanks to the 2,620 mm sanding belt length and the electronic sectional pad. Advantages Better cooling of the abrasive grit due to the greater development of the belts that reduces the adherence of processed dust. An extended belt length lasts longer, requires fewer replacements and consequently less downtime. An electro-pneumatic system keeps the feed belt on track, perfectly centered and tensioned at all times. The system is automatic and no operator intervention is required. Belt oscillation controlled by an electronic photocell This precision control system maximum uniformity in belt oscillation: this reduces the risk of belt breakage and improves finishing quality.

Specifications

ManufacturerSCM
ConditionNew
Working width1,350 mm
Min. - max. working thickness (with mobile table)4 - 170 mm
Min. - max. working thickness (with fixed table)4 - 200 mm
Sanding belts width1,370 mm
Sanding belts length2,620 mm
Standard main motor power11 (15) kW (Hp)
Motor power 1st group11 (15) kW (Hp)
Motor power 2nd group11 (15) kW (Hp)
Feed belt speed4.5/9 m/min

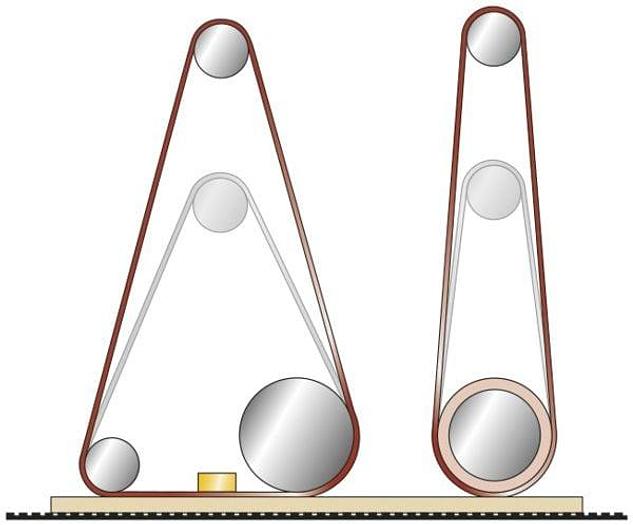

Long belts2,620 mm length for greater finishing and productivity
Automatic feed belt tensioning and centeringfor an easy operation
