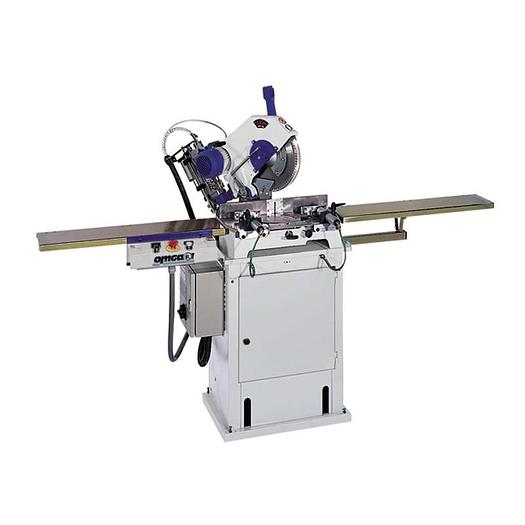

OMGA- T50 350 14'' Mitre Chop Saw
OMGA- T50 350 14'' Mitre Chop Saw
$7,415 (USD)
orCall 239-770-4474
Description
The heaviest duty of all model of OMGA's Precision Mitre Chop Saws (along with the T 53 370). It features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.
DATA SHEET
ACCESSORIES
Specifications
| Manufacturer | OMGA |
| Condition | New |
| Cross cut capacity 90 Deg. | 6 3/4" 6 3/4" |
| Cross cut capacity 45 Deg. | 4 3/4" 4 3/4" |
| Max. Depth of Cut | 4 5/16" 4 5/16" |
| Max. Depth of cut 45 Deg. | 2" N /A |
| Motor power | 4 3 |
| Max. Beveled Cross Cut | 6 3/4" N /A |
| Saw bore | 1" 1" |
| Saw blade diameter | 14" 14" |
| Arbor Speed RPM | 3200 3200 |
| Dust Chute Diameter | 3 1/8" 3 1/8" |
| Table Size | 23 5/8" X 17 1/8" 23 5/8" X 17 1/8" |
| Shipping Weight Lbs. | 255 222 |
| Crated Dimensions | 28" X 28" X 33" 26" X 25" X 30" |
| Cabinet for Mitre Chop Saws | $1,107.00 |
| Dust Collecting Cabinet | $2,190.00 |
| Table Extension with Scale 4' | $1,067.00 |
| Support for scaled table extension | $206.00 |
| Flip over stop Plexiglass at 45 degrees | $156.00 |
| Automatic Descent of the Head (T 50 350) | $3,144.00 |
| Pneumatic Horizontal Clamp RH (T 50-T 53) | $617.00 |
| Pneumatic Horizontal Clamp LH (T 50-T 53) | $617.00 |
| Pneumatic Hold-Down Clamp (T 50-T 53) | $726.00 |
