Cantek 30'' X 8'' Double Surface Planer GT760ARD-8
Cantek 30'' X 8'' Double Surface Planer GT760ARD-8
$42,400 (USD)
orCall 239-770-4474
Description
Plane your material efficiently in a single pass.

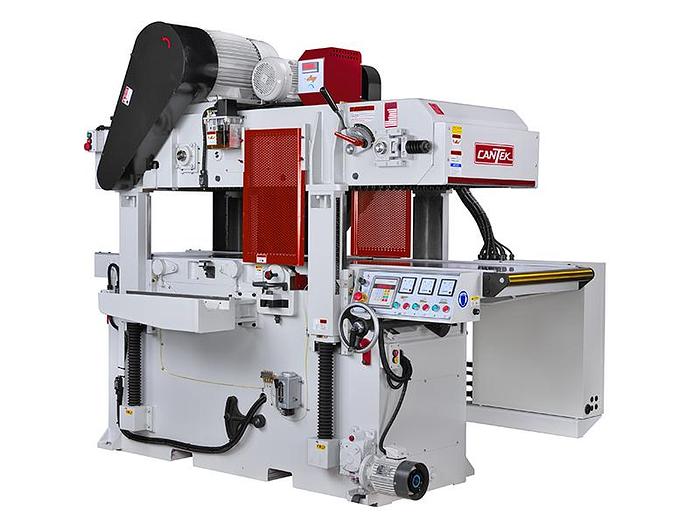

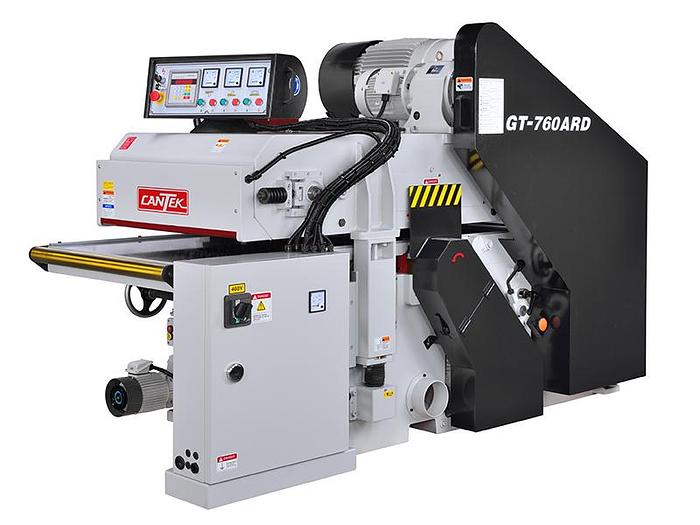

The Cantek GT760ARD 30″ Double Surface Planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.
Why Cantek GT760ARD 30″ Double Surface Planer?

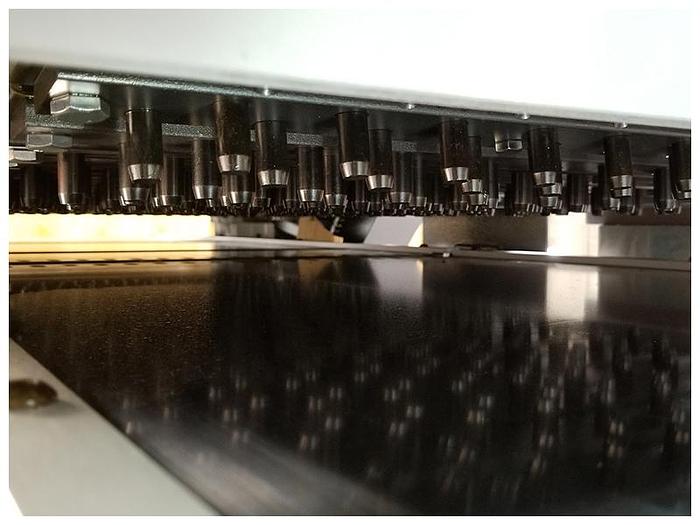

Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

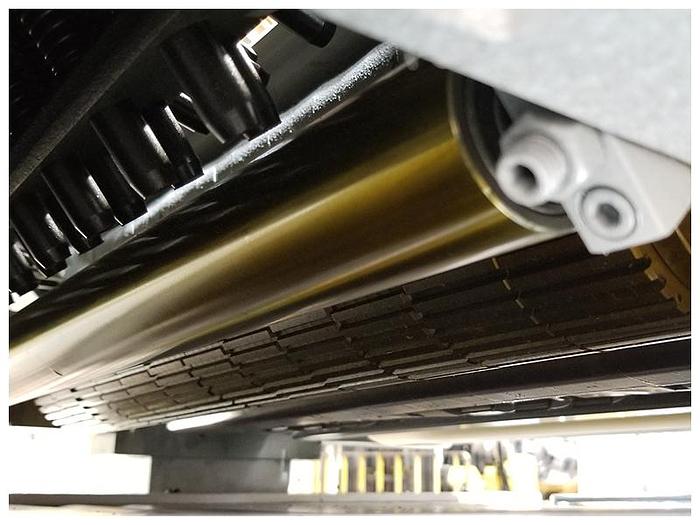

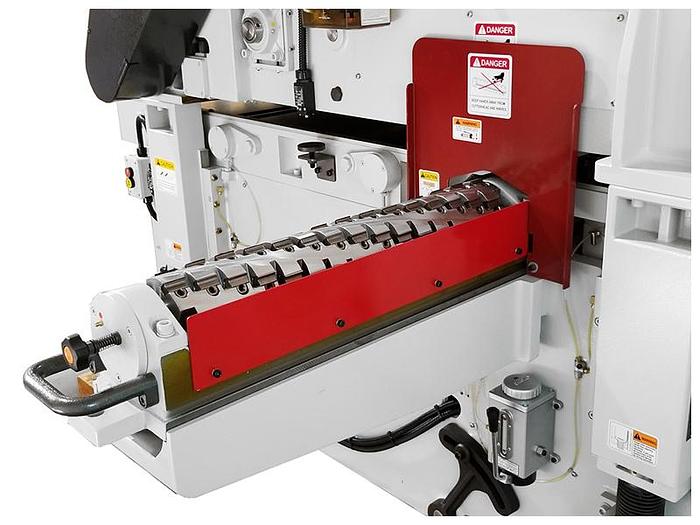

Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
Heavy-duty cast-iron machine body and table for vibration free cutting
Key Advantages
30″ wide x 8″ thickness capacity (optional 16” & 20” opening)
Cutterheads are spiral insert type with six (6) rows of carbide inserts
(2) driven and (1) idle bed roll for superior feeding of even difficult material
Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001” resolution) for precise thickness control
Swiveling control panel for more ergonomic access to machine controls

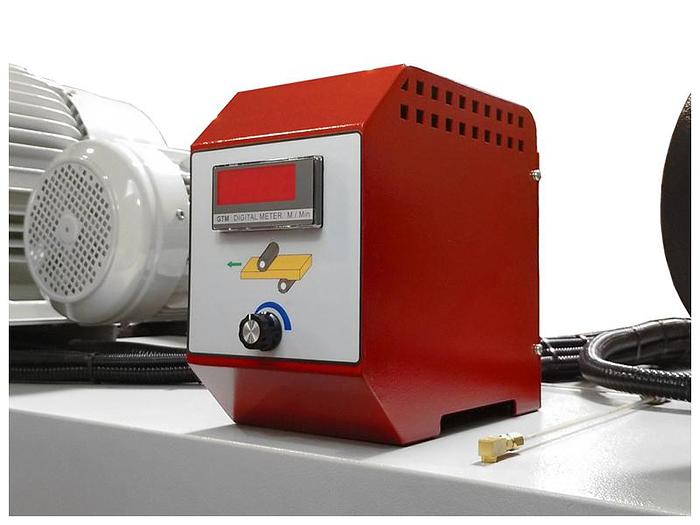

Inverter variable speed control with feed speeds from 26 to 79 FPM

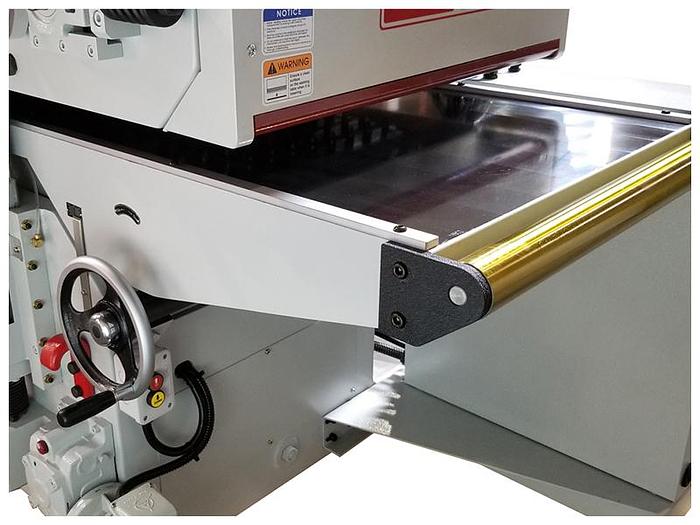

Easy to access external handwheel adjustment of infeed bed
Hard chromed worktable for high wear resistance

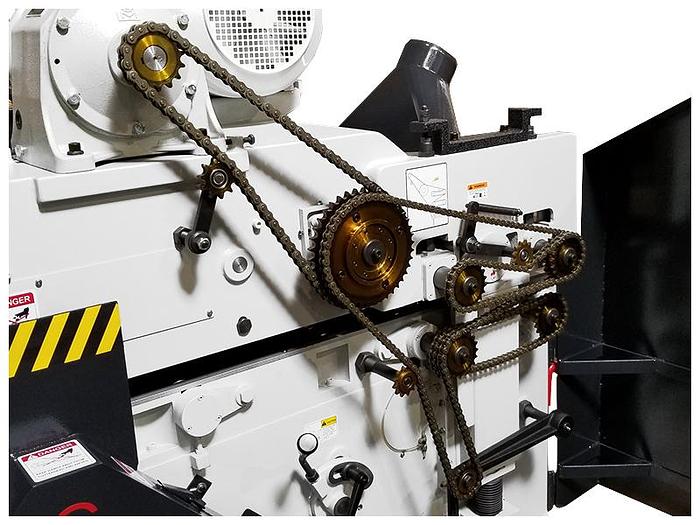

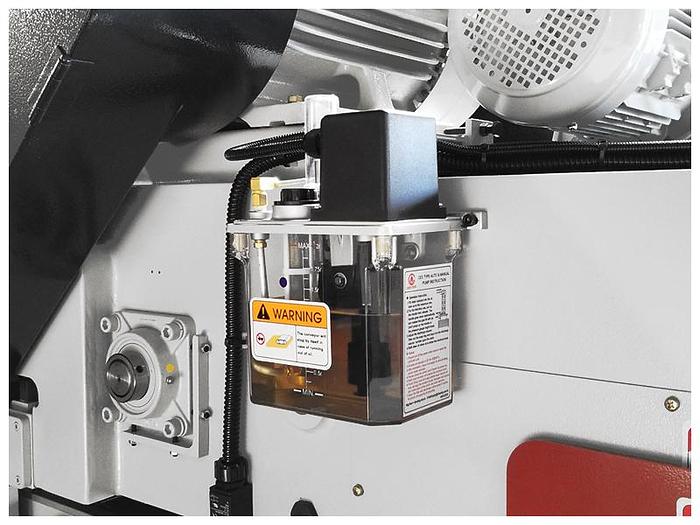

Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
Section chipbreaker and sectional feed roller before top cutterhead
Rubber outfeed top roller to prevent chip marking
Over thickness safety shut-off bar across infeed.

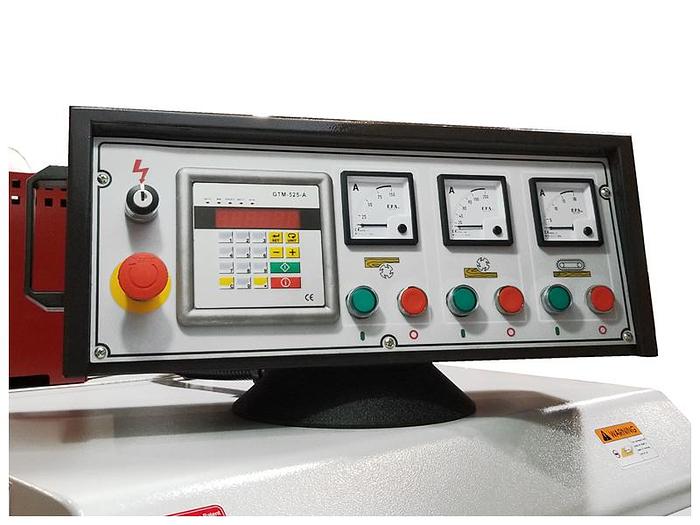

Ammeter for each motor on control panel to monitor motor load
Specifications
Specifications
Manufacturer | Cantek |
Condition | New |
Max. working width | 30″ |
Max. working thickness | 8″ (16″, 20″ optional) |
Min. working thickness | 0.4″ |
Min. workpiece length | 12.2″ |
Bottom head motor | 20 HP |
Top planing head motor | 25 HP |
Feed motor | 5 HP |
Table elevation motor | 1 HP |
Cutterhead diameter | 4″ |
Knife dimensions | 30mmx12mmx1.5mm (114 pcs per head) |
Cutterhead speed | 5000 RPM |
Feed speed (variable) | 26-79 FPM |
Dust ports | (2) 6″ |
Machine dimensions (LxWxH) | 107″ x 55″ x 75.6″ |
Machine weight | 7040 lbs |
Packaging dimensions | 110” x 55″ x 77” |
Shipping weight | 7700 lbs |
Electrical requirement | 460/3/60 = 71 amps575/3/60 = 57 amps |
