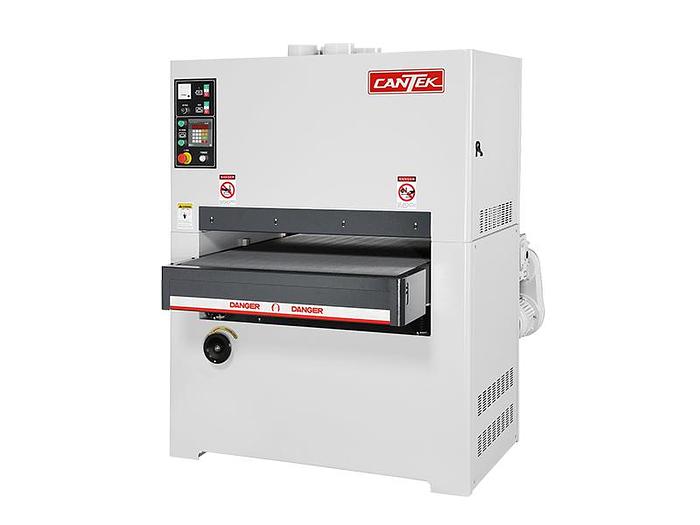

CANTEK | S432 43″ TWO HEAD WIDEBELT SANDER
CANTEK | S432 43″ TWO HEAD WIDEBELT SANDER
$29,200 (USD)
orCall 239-770-4474
Description
Accomplish your tasks without worrying about the performance of your sander.

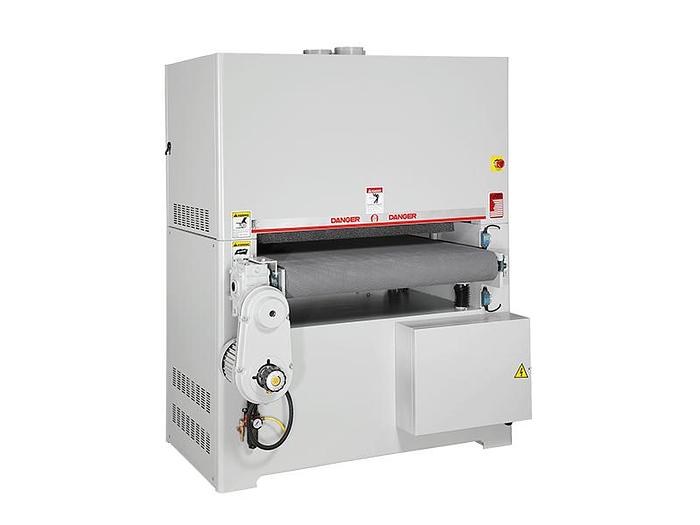

The Cantek S432 43″ Two Head Wide Belt Sander is perfect for any small to mid-sized shop looking to achieve outstanding results. Its robust construction is the best in its class and provides superior sanding results. The flexibility with quick-change abrasive belts allows for more applications in a shorter time frame, helping to assist and meet deadlines. In addition, the S432 has a relatively small footprint providing greater access for smaller shops to accomplish bigger results. Equipped with motorized thickness adjustment with digital input control with settings to 0.001″ / 0.01mm for precise table setting without compromise.
Why Cantek S432 43″ Widebelt Sander?
Dual sanding heads increase efficiency by reducing the number of passes.

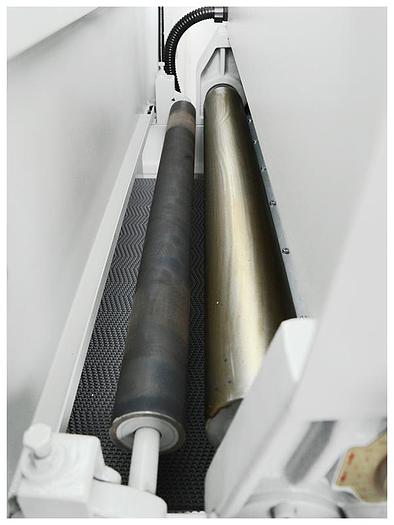

Rubber contact drum for calibration sanding.

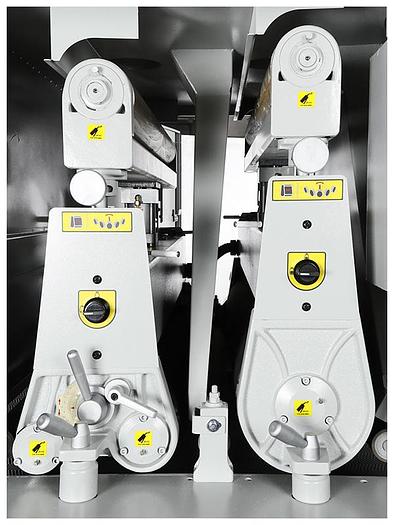

Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
Adjustable platen produces superior sanding results with finer sandpaper grits.

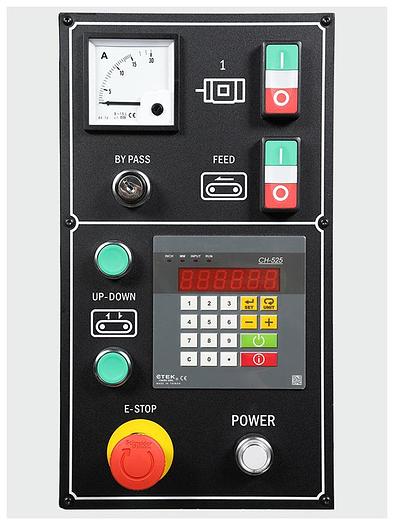

Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.
Small footprint.
Key Advantages
Two sanding heads:

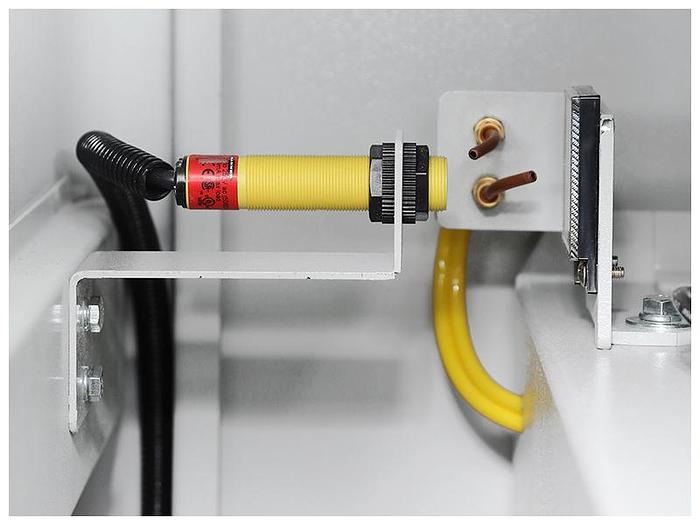

Electronic belt tracking for optimum belt life and sanding results.
Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
Disc brake on the main motor allows for faster belt changes.
Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
Table raising jackscrews.
Interlocks are located on all access doors.
Specifications
Specifications
Manufacturer | CANTEK |
Condition | New |
DESCRIPTIONa | METRIC INCH |
Abrasive belt size | 1092 X 1524 mm 43” x 60” |

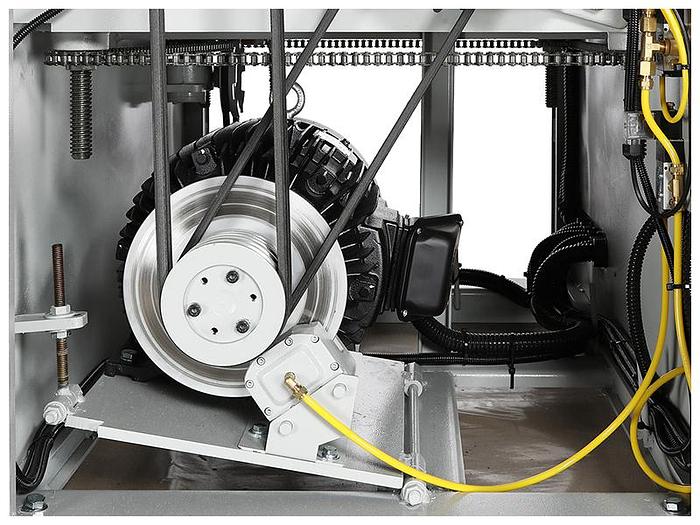

First main motor | 25 HP |

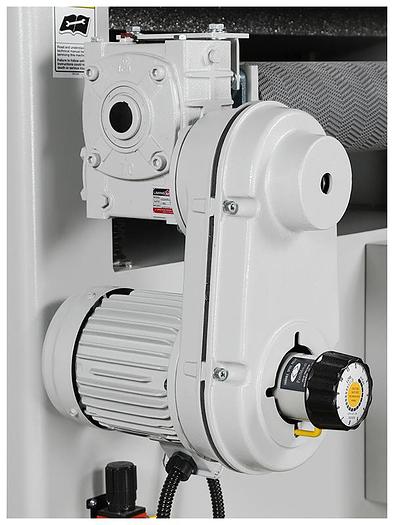

Feed motor | 2HP |
Table rise/fall motor | 0.25 HP |
Working width | 1066 mm 42″ |
Minimum part length | 320 mm 12.5″ |
Maximum thickness opening | 150 mm 5″ |
Feed speed variable | 4 to 15 m/min 15 to 49 FPM |
Pass line height | 920 mm 37″ |
Dust outlet | 8 @ 101 mm 8 @ 4” |
Compressed air pressure | 5 Kg/cm2 PSI 70 |
Compressed air volume | 0.35M3/Min 12 CFM |
Dust collection requirements | 6500 M3/HR 3825 CFM |
Net weight | 1400 kgs 3086 lbs |
Machine dimensions | 1540 x 1555 x 1630 mm 60” X 61” X 64” |
Shipping weight | 1587 kgs 3500 lbs |
Shipping dimensions | 1600 x 1640 x 1940 mm 62” X 64” X 76” |
Electrical requirements | 230/3/60 = 70 amps |
First head | Rubber contact drum with 7″ diameter drum. |
Second head | Combination head with 5″ diameter drum and 2″ wide platen. |
